SECTION 1 - MACHINE SPECIFICATIONS
3121222 – JLG Lift – 1-1

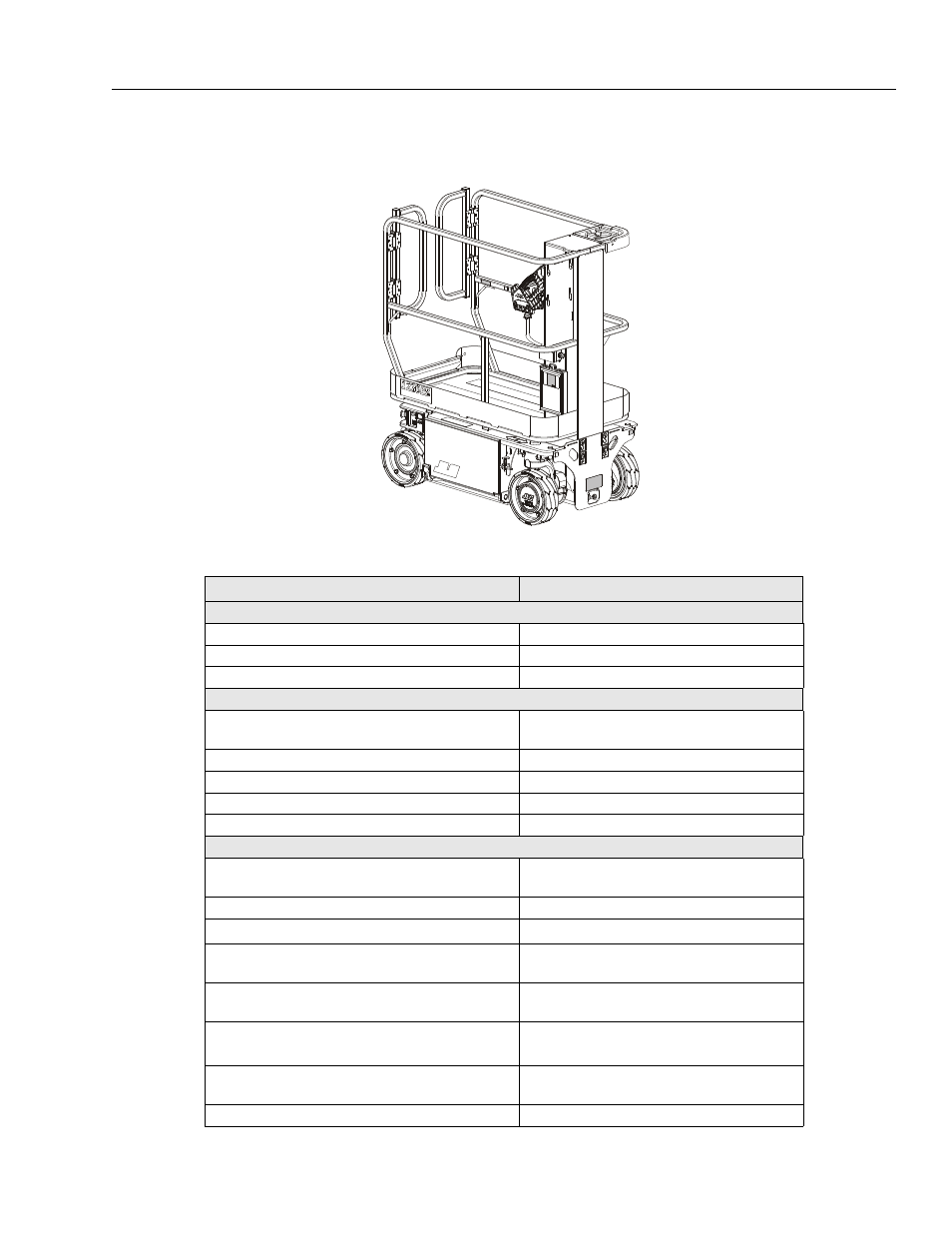

SECTION 1. MACHINE SPECIFICATIONS
Table 1-1. Operating Specifications
Description Model 1230ES
Platform
Maximum Platform Height
12 ft. (3.66 m)
Lift Up Time - w/maximum rated load 11 - 17 seconds
Lift Down Time - w/maximum rated load 11 - 25 seconds
Driving
Maximum Drive Speed Stowed:
Elevated:
3 mph (4.8 kph)
0.5 mph (0.8 kph)
Maximum Stowed Travel Grade (Gradeability) 25% (14°)
Maximum Stowed Travel Grade (Sideslope) 5°
Inside Turning Radius 4.4 in. (11.2 cm)
Outside Turning Radius 57.6 in. (1.46 m)
Chassis
Approximate Gross Machine Weight - Global
1775 lb. (805 kg) - ANSI/CSA
1740 lb. (790 kg) - CE/AUS/JPN
Maximum Tire Load (per wheel) 880 lb (400 kg)
Ground Bearing Pressure
123 PSI ( 8.7 kg/cm 2 )
Ground Clearance: (pot hole protection system up):
(pot hole protection system down): 2.6 in (66 mm)
0.5 in (12.2 mm)
Maximum Operating Wind Speed 28 mph - ANSI/CSA
0 m/s - CE/AUST - Indoor Use Only
Maximum Horizontal Manual Side Force:
(Platform fully extended with Maximum load) 45 Pound Force
(200 Newtons)
Maximum Hydraulic System Pressure Setting 1600 psi (110 bar) - Lift
1250 psi (86 bar) - Steer
Electrical System Voltage (DC) 24V
