SECTION 5 - CONTROL COMPONENTS

5-14

– JLG Lift –

3121222

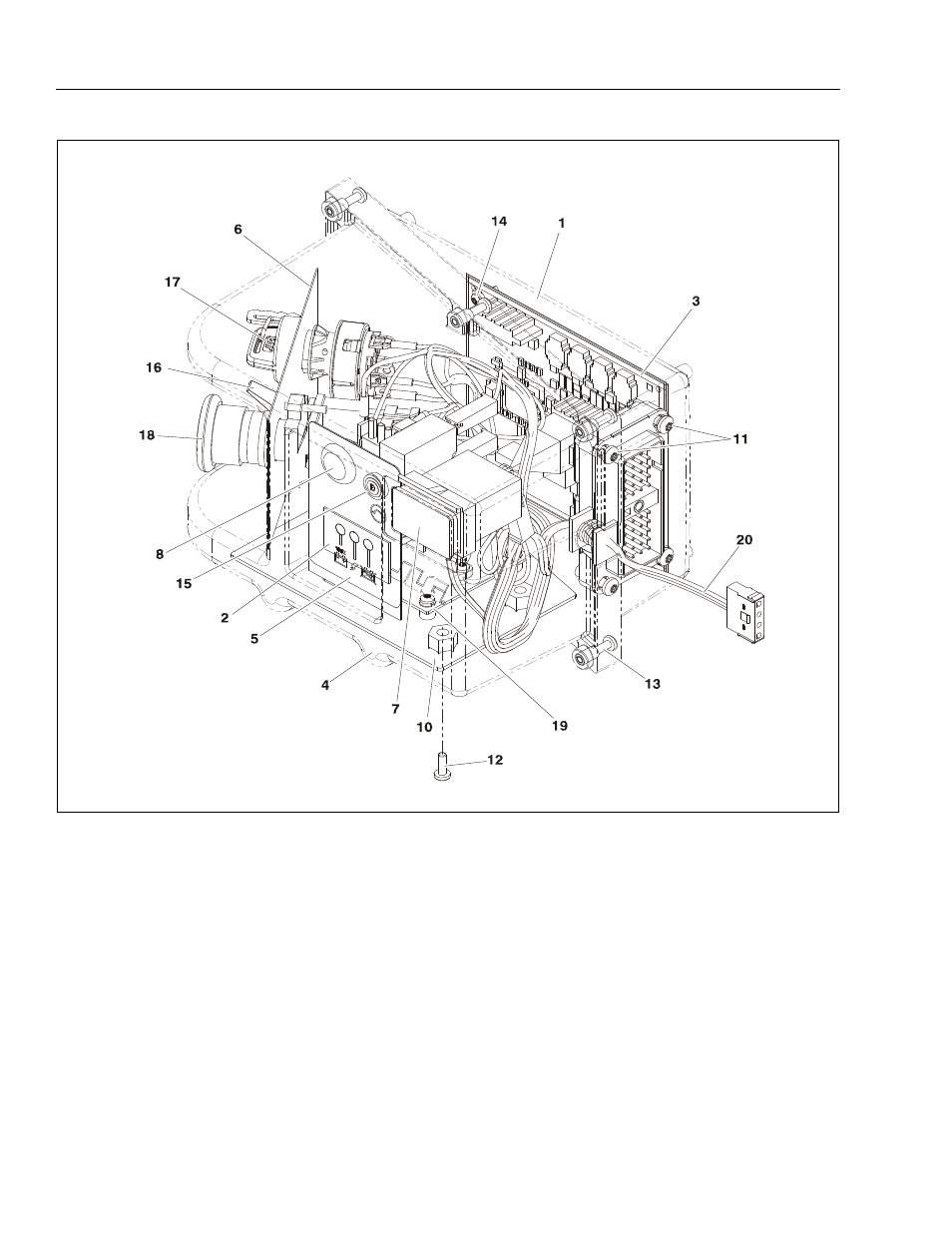

Figure 5-6. Ground Control Station Assembly

1. Rear Cover
2. Battery LED Circuit Board
3. Main Ground Control Circuit Board - (1600473 Drive

Module Only)

4. Front Cover
5. LED Indicator Decal
6. Control Functions Decal
7. Hourmeter
8. Blank Plug
9. Unused

10. Controls/Indicators Mounting Plate

11. Torx Screws - Main Connector (X001)
12. Torx Screws - Controls/Indicators Mouting Plate
13. Torx Screws - Rear Cover to Front Cover
14. Plastite Screws - Main Board to Rear Cover
15. 10 Amp Circuit Breaker
16. Ground Control - Platform Lift UP/DOWN Switch
17. Keyswitch - Ground/Platform/OFF Control
18. Emergency Stop Switch
19. Tilt Module
20. Battery LED Indicator Connector Harness (X010)
