SECTION 6 - MAST COMPONENTS

3121222

– JLG Lift –

6-5

10. While feeding the electric harness cables for both

the AC receptacle box and the platform control sta-
tion into the top of the mast, carefully start to lift the
platform sliding it up off of the mast assembly. Once
clear of the mast assembly, move to a suitable area
for later assembly.

Platform Installation

1. Using an overhead crane with lifting strap, lift the

platform assembly up over the main mast assembly.

2. Before lowering the platform assembly onto the

mast, be certain the electrical cables for the AC
receptacle box and platform control station are
within the top of the mast assembly to prevent dam-
age to the cables.

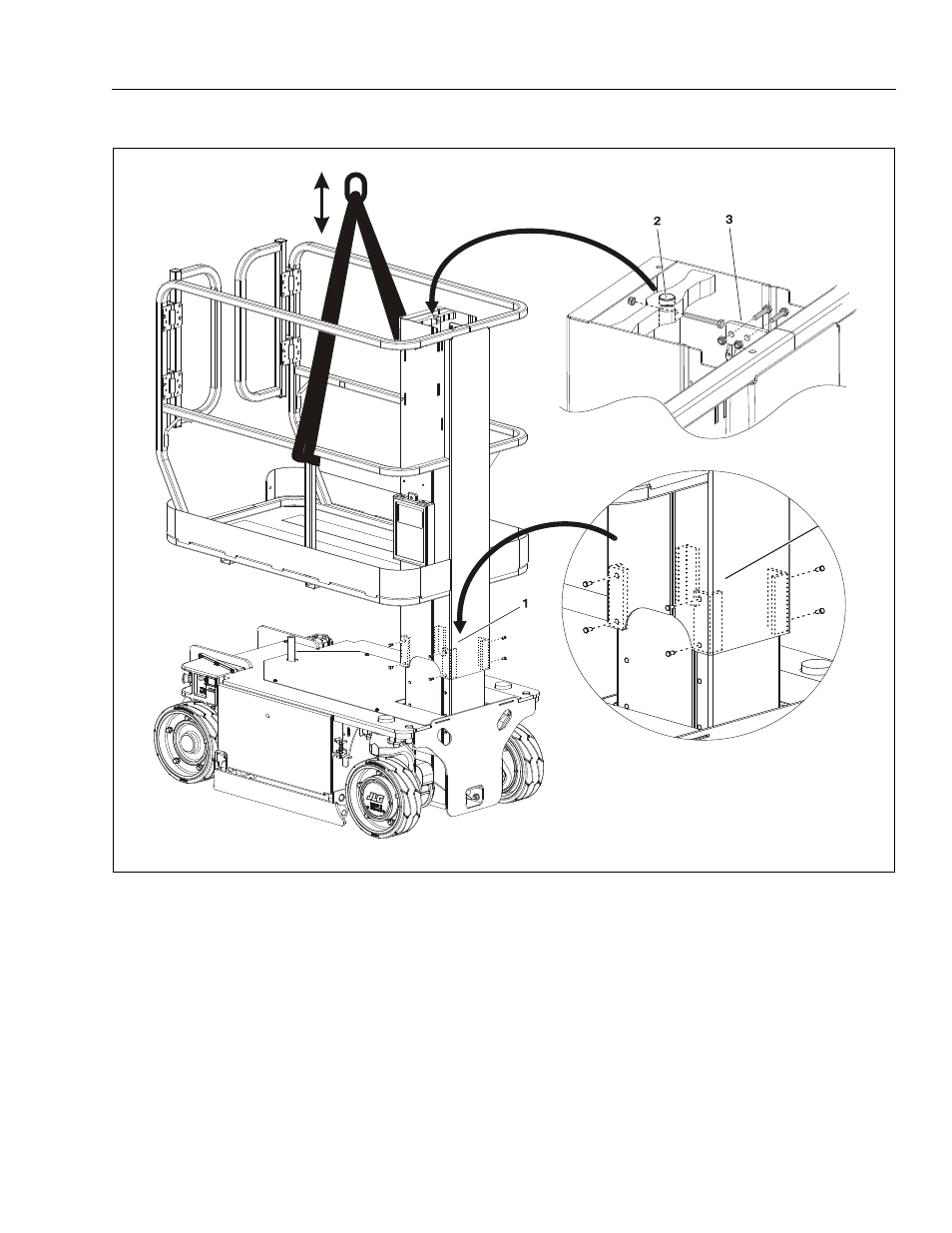

Figure 6-5. Platform to Mast - Installation

1. Platform Outer Mast Section - Lower Slide Pad Location
2. Lift Cylinder #3 - Attach Bolt and Nut Location

3. Power-Trak Guide Plate Attach Bolts and Nuts
