SECTION 5 - CONTROL COMPONENTS
3121222 – JLG Lift – 5-15
Tilt Sensor, JLG P/N 1810140 and 1001114933:
Tilt Sensor Removal:
NOTE: Refer to Figure 5-46., Tilt Sensor Removal for num-
bers in parenthesis.
1. Disconnect the batteries.
2. Open the Ground Control Station to gain access to
the Tilt Sensor Assembly. (refer to prior mentioned
procedures)
3. Remove the four Screws (3), to remove the Tilt Sen-
sor (1) and Sensor Mount (2) from the Ground Con-
trol Box.
4. The Tilt Sensor (1) can be removed from the Sensor
Mount (2) by removing the three Screws (4).
NOTE: Follow the above procedures in reverse order when
installing the tilt sensor assembly. After installing, be
sure to calibrate the tilt sensor (refer to Section 5.2,
Tilt Sensor Calibration).
2
1
1. Ground Control Station
2. Tilt Sensor (JLG P/N 1810140 or 1001114936)

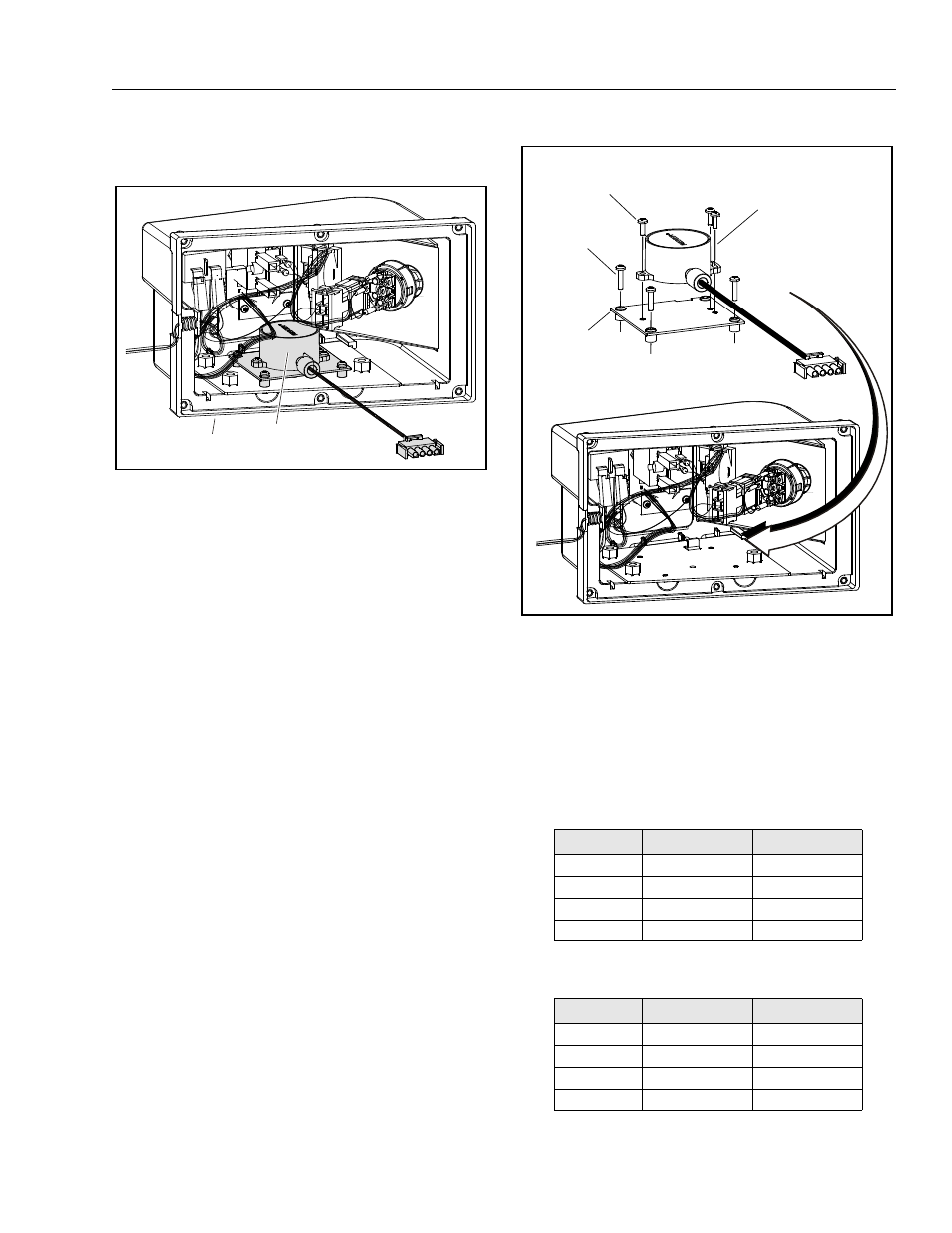

Figure 5-45. Tilt Sensor Location
Table 5-3. Tilt Sensor Harness for 1810140
Wire Color Function Connector Pin
Red VCC 1
Green PWMX 2
White PWMY 3
Black Ground 4
Table 5-4. Tilt Sensor Harness for 1001114936
Wire Color Function Connector Pin
Red VCC 1
White CANH 2
Green CANL 3
Black Ground 4
3
1
4
2
1. Tilt Sensor (JLG P/N 1810140 or 1001114936)
2. Sensor Mount
3. Screw, 3.5 x 0.6 x 16 LG
4. Screw, 3.5 x 0.6 x 10 LG
Figure 5-46. Tilt Sensor Removal
