SECTION 3 - CHASSIS & TURNTABLE
3-70 – JLG Lift – 3121256

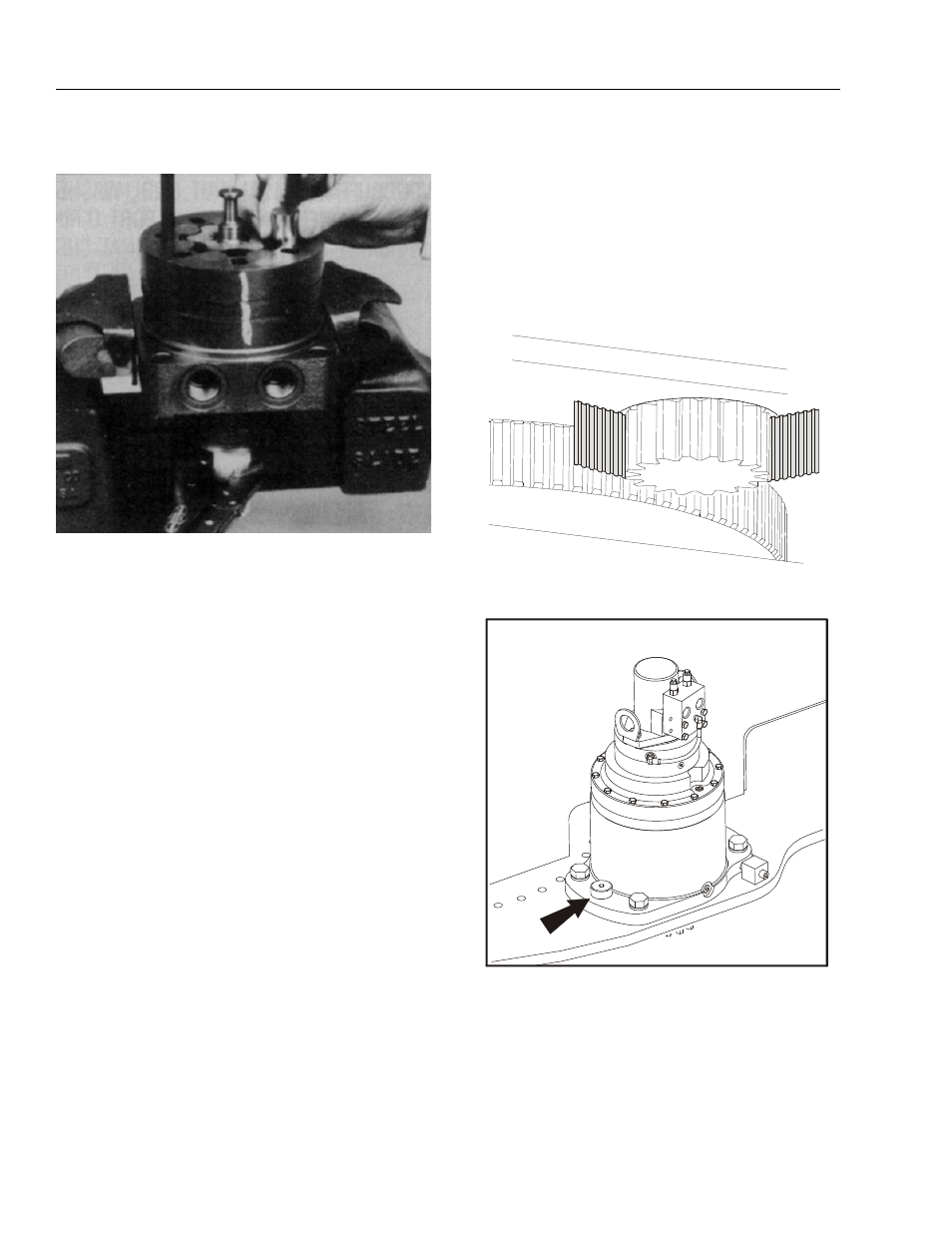

the seventh or full complement of seven vanes.
Assemble the seven vanes using minimum force.
6. Remove the two assembled bolts (1) if used to retain
stator and wear plate.
3.15 PROCEDURE FOR SETTING GEAR
BACKLASH
1. Set backlash to 0.010 to 0.015" using the following
procedure.
2. Place shim (JLG p/n 4071041) between pinion and
bearing on the bearing high spot. The bearing high
spot should be stamped with an "X" on the surface
below the teeth and marked with yellow paint in the
tooth space.
3. Torque the shoulder screw (shown below) to 660
foot-pounds (896 Nm) with Loctite #271.
4. Remove the turntable lock pin.
