SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
7-28 – JLG Lift – 3121256
1
3
2
1
2
1
2 1
2
1
2
2
"T2"
SHT. #1
"P3"
SHT. #1
PLATFORM ROTATOR
Displacement: 14 c.i.r.
IN OUT
PLATFORM CONTROL
2500 PSI
1500 PSI
3000 PSI
2500 PSI
75 PSI
1100S / 1100SJP
(1250AJP)
(1200SJP-1350SJP)
(1250AJP)
(1200SJP-1350SJP)
10 MICRON ABS
B10 >= 1000
100 PSI
BYPASS
V1 V2 T
LEVEL CYLINDER
Bore: 5.00" 19.63 sq. in.
Rod: 2.00" 3.14 sq. in.
Annulus: 16.49 sq. in.
Cyl. Area Ratio: 1.19:1
Stroke: 13.375"
L1 L2
.047
S1 S2 S2
M1 L1 L2 M2 R1 R2
P
2.0 GPM
0.2 GPM
MP
S1

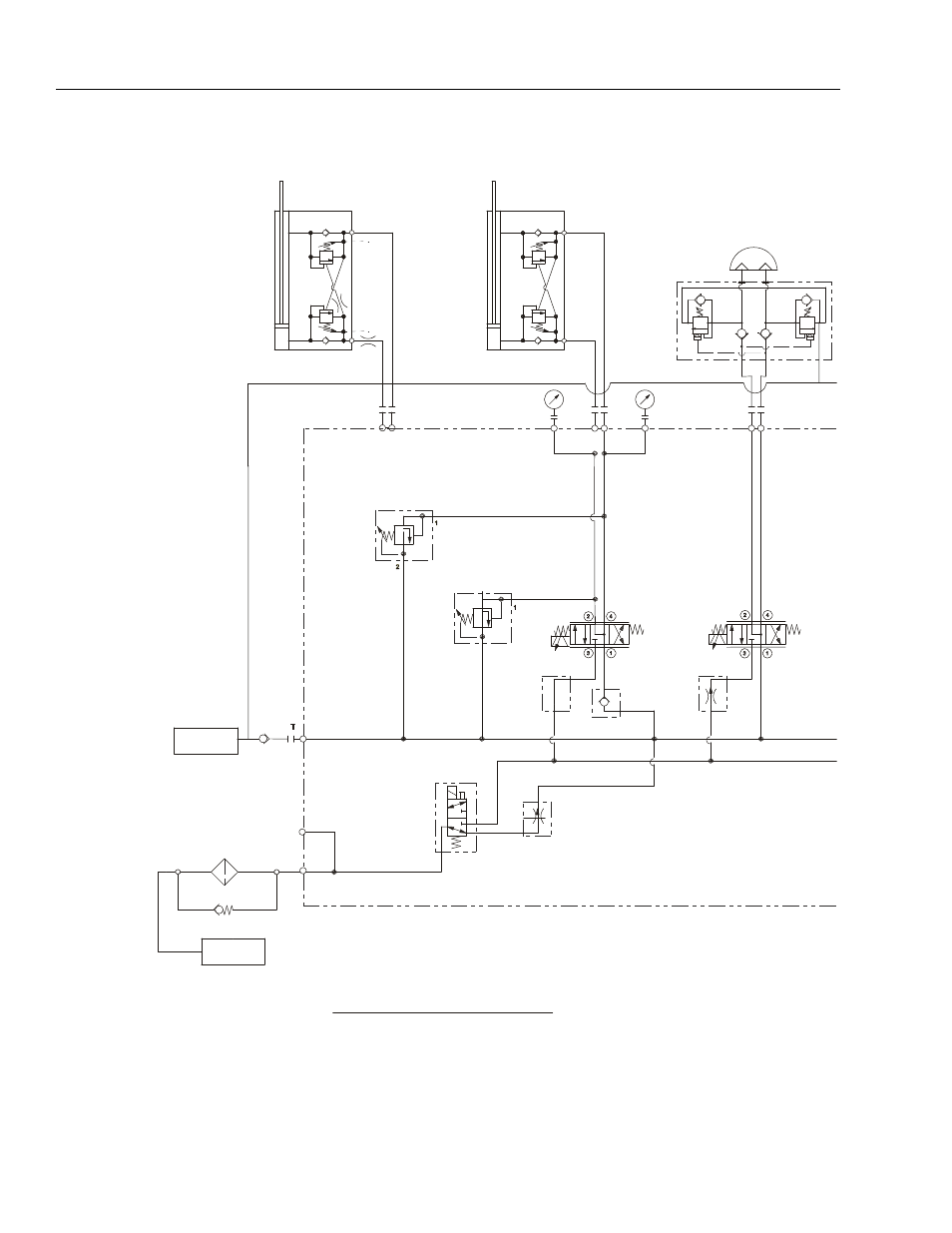

Figure 7-36. Hydraulic Schematic - Platform Control - Sheet 1 of 2
