Carrier Disassembly
1. Using a 3/16" (5 mm) punch drive the Roll Pin (3G)
which holds the Planet Shaft (3E) in the Carrier (3A)
down into the Planet Shaft (3E) until it bottoms.
NOTE: Make sure that the Roll Pin has bottomed. Other-
wise, damage to the carrier could occur when the
Planet Shaft is removed.
2. Remove the Planet Shaft (3E) from the Carrier (3A).
Use a small punch to remove the Roll Pin (3G) from
the Planet Shaft (3E).
3. Slide the Planet Gear (3F), two Ball-Indented Thrust
Washers (3H) and the two Thrust Washers (3B) out
of the Carrier (3A).
4. Remove both rows of Needle Bearings (3C) and the
Spacer (3D) from the bore of the Planet Gear (3F).
5. Repeat Steps 1 thru 4 for the remaining two Cluster
Gears(3F).
3A. Carrier
3B. Tanged Thrust Washer
3C. Needle Bearing
3D. Thrust Washer 3E. Planet Shaft
3F. Cluster Gear
3G. Roll Pin
3H. Ball Indented Washer

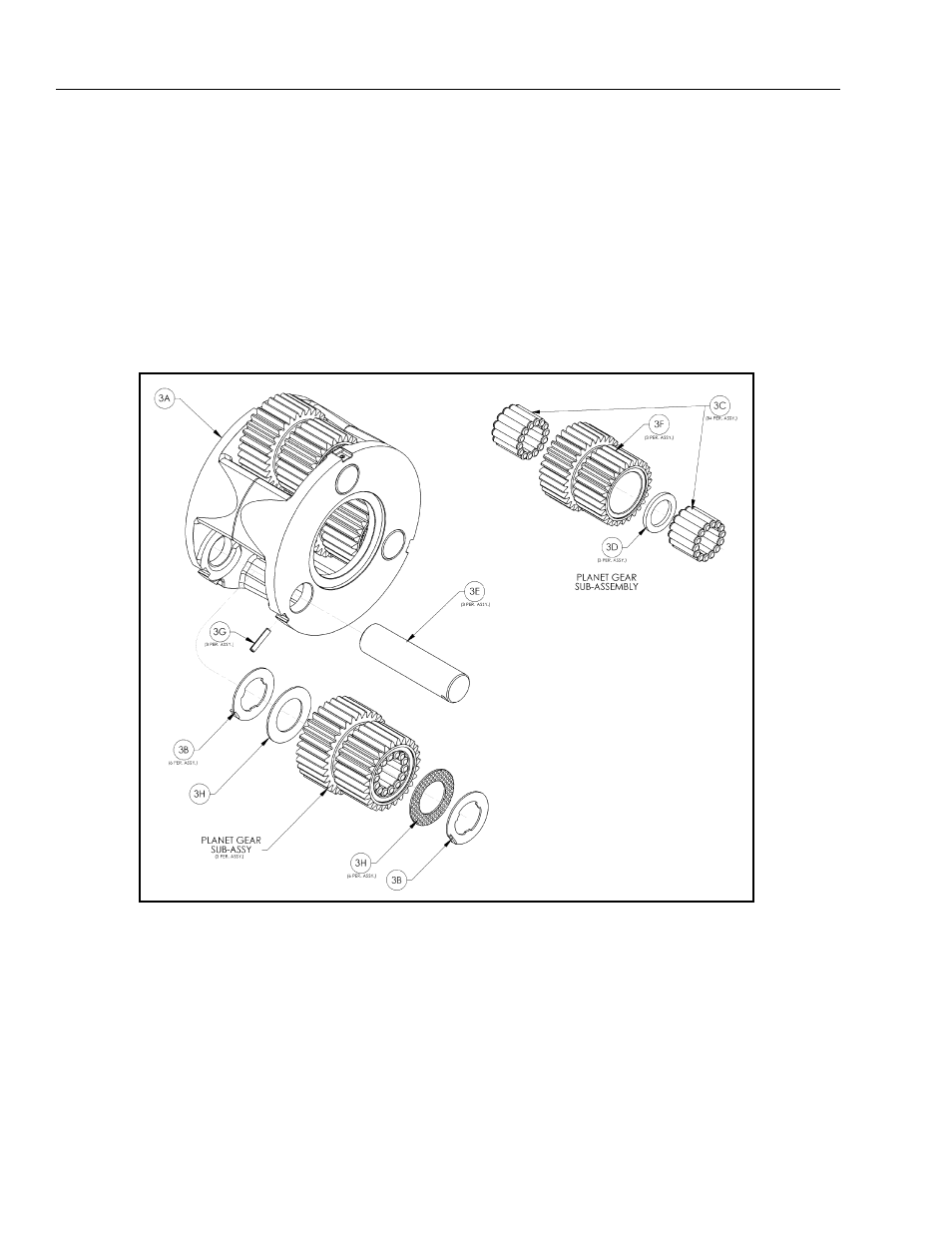

Figure 3-37. Swing Drive - Carrier Disassembly
