SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
3121256 – JLG Lift – 7-29
1
2 2
1
2
1
1 2
3
JIB SWING ROTATOR
Displacement: 74.2 cu. in. for 244 degrees
Displacement: 54.7 cu. in. for 180 degrees
JIB CYLINDER
Bore: 3.00" 7.06 sq. in.
Rod: 1.50" 1.76 sq. in.
Annulus: 5.3 sq. in.
Cyl. Area Ratio: 1.33:1
Stroke: 23.5"
.047
2750 PSI
V1 V2 T
1100SJP ONLY
S1 S2 S1 S2
S1 S2 M3 J1 J2
0.3 GPM 2.0 GPM

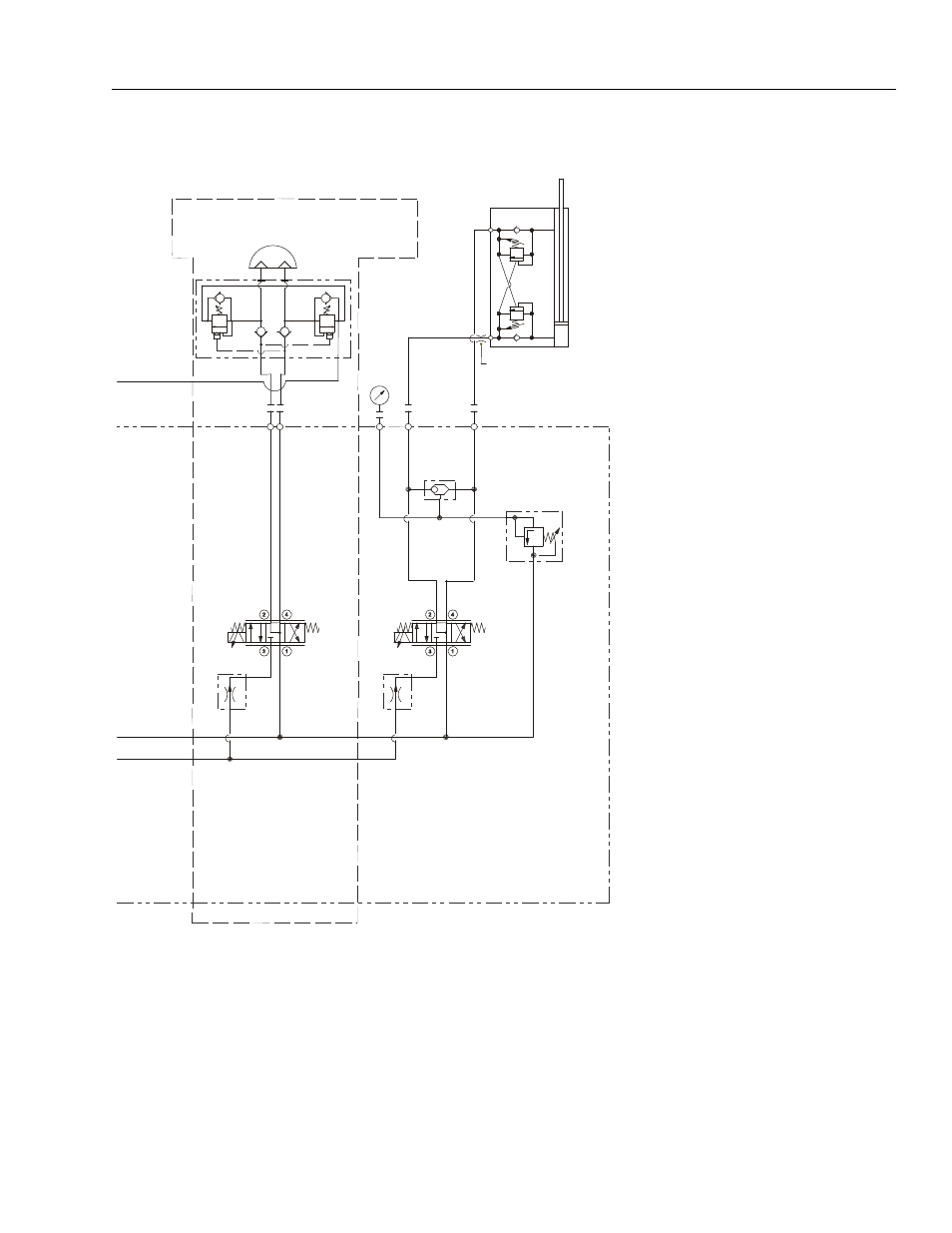

Figure 7-37. Hydraulic Schematic - Platform Control - Sheet 2 of 2
1001110821 B
