SECTION 3 - CHASSIS & TURNTABLE
3-14 – JLG Lift – 3121256
3
1
2
6
DETAIL A
DETAIL B
5
4

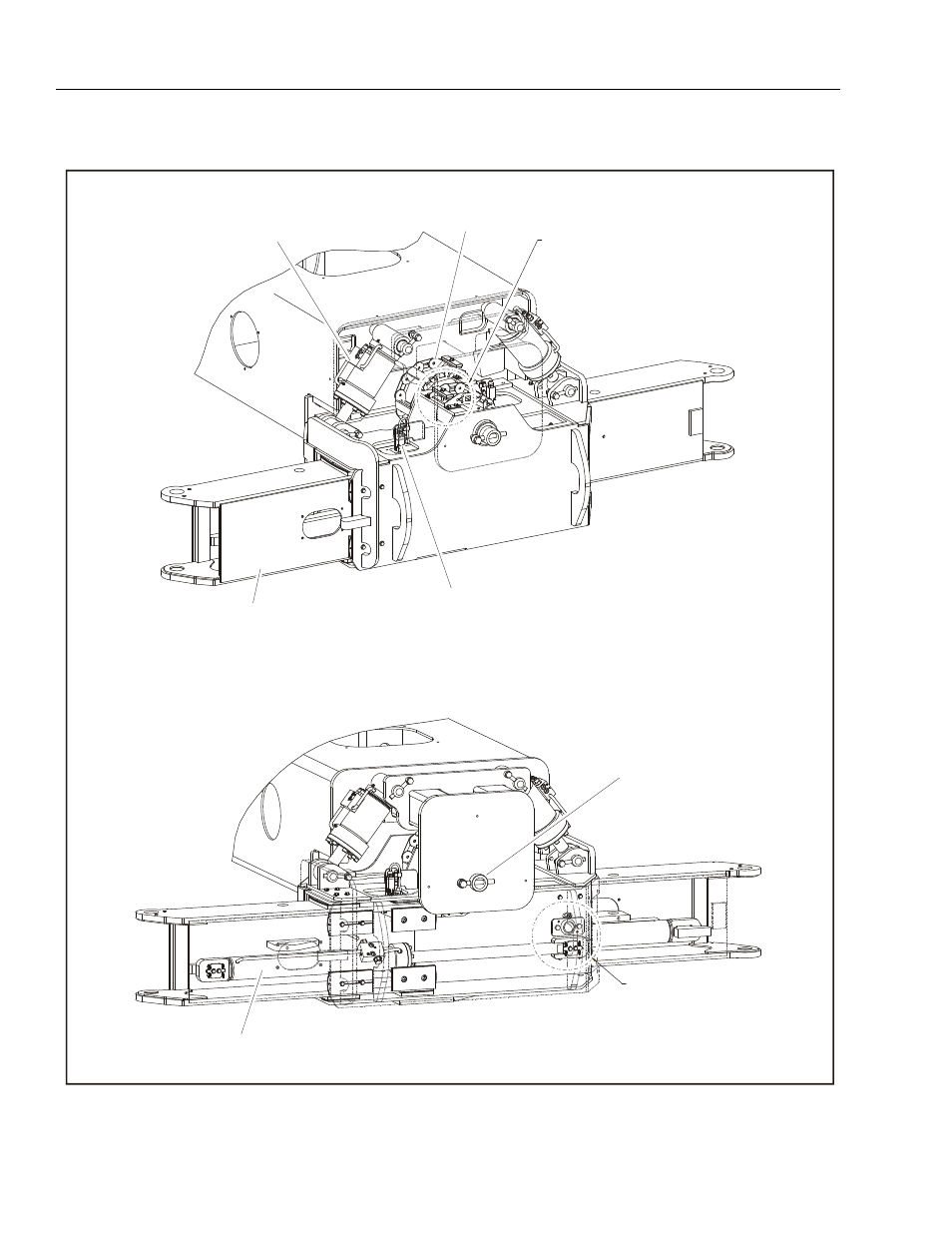

Figure 3-13. Oscillating Axle - Sheet 1 of 2
* AXLE WEAR PAD SHIMMING PROCEDURE:
1. DO NOT SHIM BOTTOM WEAR PADS.
2. AXLE SIDE PADS MAY BE SHIMMED UNEVENLY IF NEC-
ESSARY TO MAXIMIZE CONTACT AREA OF TOP WEAR PAD.
3. SHIM AXLE WEAR PADS TO WITHIN THE THICKNESS OF
THE THINNEST SHIM AT THE NARROWEST POINT THORUGH
THE WEAR PAD’S TRAVEL.
