SECTION 5 - HYDRAULICS
5-14
– JLG Lift –
3121256
Assembly
NOTE: Prior to cylinder assembly, ensure that the proper
cylinder seal kit is used. See your JLG Parts Manual.
Apply a light film of hydraulic oil to all components
prior to assembly.
1. A special tool is used to install a new rod seal into
the applicable cylinder head gland groove.
WHEN INSTALLING ‘POLY-PAK’ PISTON SEALS, ENSURE SEALS
ARE INSTALLED PROPERLY. REFER TO WIPER SEAL INSTALLA-
TION FOR CORRECT SEAL ORIENTATION. IMPROPER SEAL
INSTALLATION COULD RESULT IN CYLINDER LEAKAGE AND
IMPROPER CYLINDER OPERATION.
2. Use a soft mallet to tap a new wiper seal into the
applicable cylinder head gland groove. Install a new
wear ring into the applicable cylinder head gland
groove.

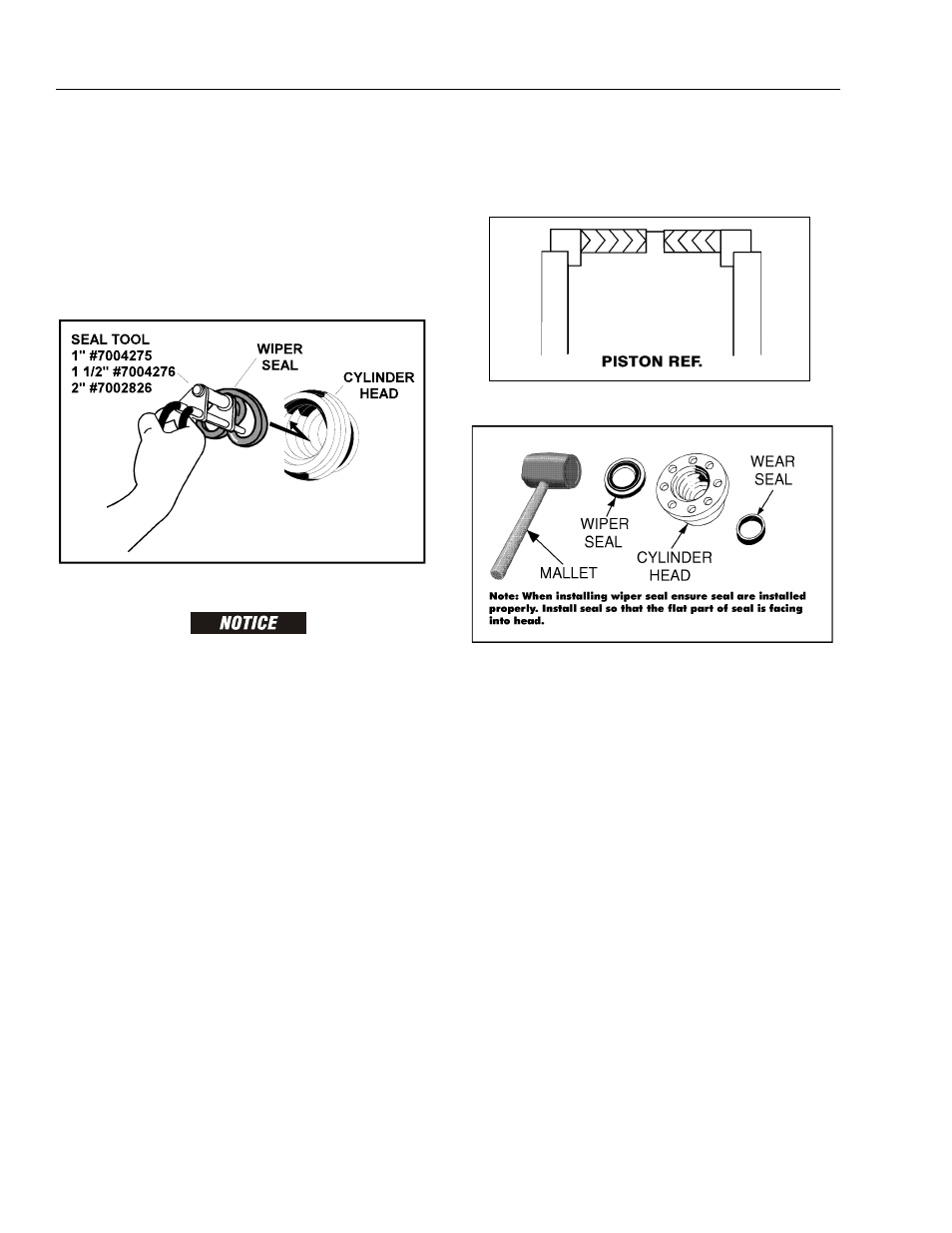

Figure 5-14. Rod Seal Installation
Figure 5-15. Poly-Pak Piston Seal Installation
Figure 5-16. Wiper Seal Installation
