Rev C page 11-5

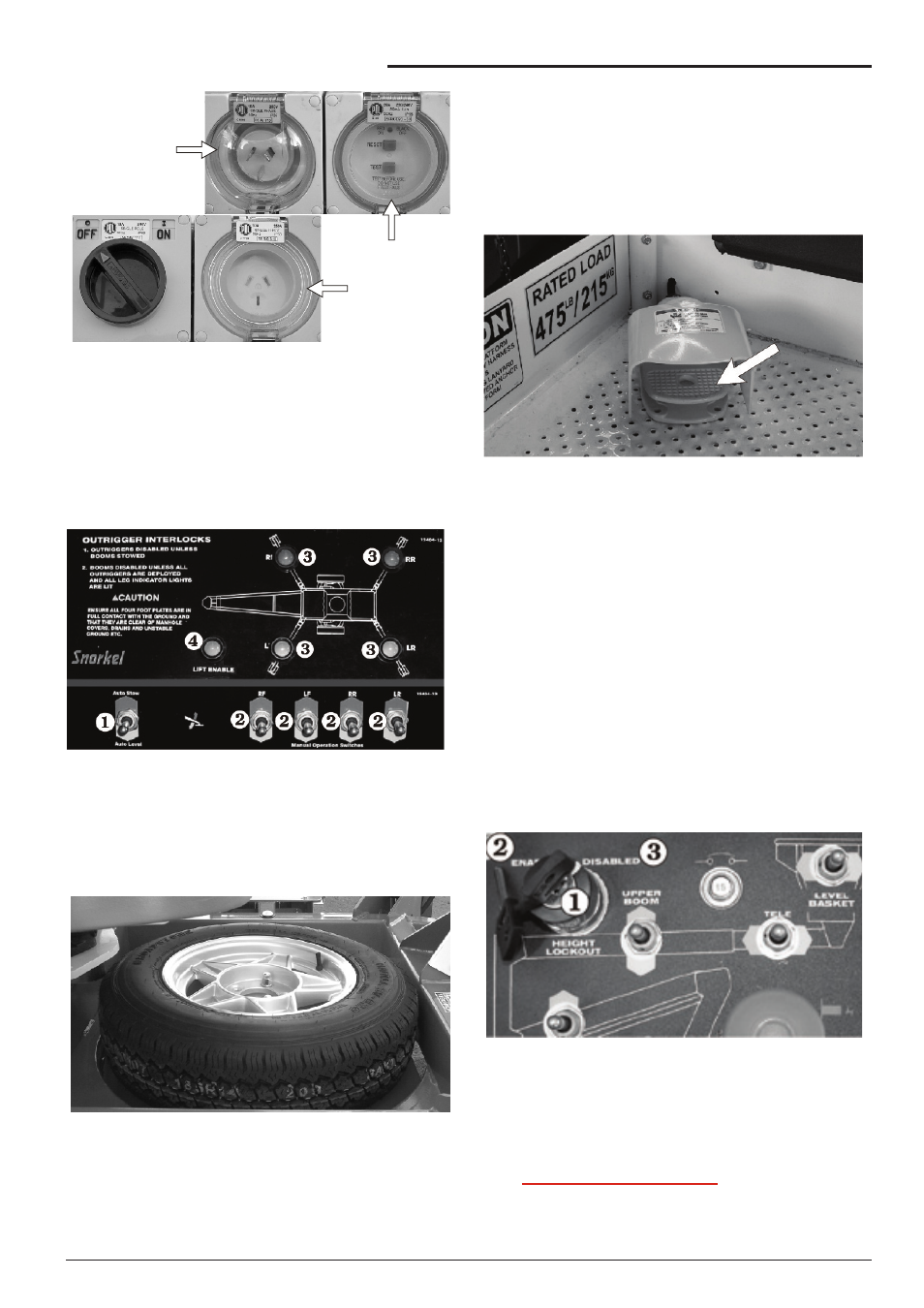

Figure 11.14 AC Outlet
■
Self Levelling Stabiliser
With this option the stabilisers will ‘self level’
the platform when the auto mode is selected,
alternatively the stabilisers can be used individually
when in the manual mode.
Figure 11.15 - Self Levelling Stabilisers
■
Spare Wheel
Mounted on the front of the trailer in a recessed
well, this is an ideal option for machines that
regularly travel in isolated country areas.
Figure 11.16 - Spare Wheel
■
Platform Foot Switch
The foot switch performs the same function as the
standard enable switch. Stepping on the foot switch
is an action that must be performed, at the same
time as another action, to make the booms/platform
move.
Figure 11.17 - Platform Foot Switch
■
10.9 Metre Height Restriction Kit
This kit may be fitted to machines manufactured
for the Australian market to comply with Australian
legislation.
For machines fitted with this kit a key switch Πis
provided on the lower control box.
This switch allows the machine to operate to its
full boom height of 11.5m when the switch is in the
DISABLED position Πor to the restricted height of
10.9m when the switch is in the ENABLED position
Πsee Figure 11.18.
The key switch is fitted in the upper left hand corner
of the lower control box.
Figure 11.18 - Height Lockout Switch
! WARNING
The use of the machine in the unrestricted
mode (over 10.9m) by an uncertified operator
is a breach of Australian law.
11. Options
Power Input
Connector
At Base
RCD At Base
Power Outlet
At Platform
