Rev C page 8-3
■
Self levelling stabilisers (Optional)

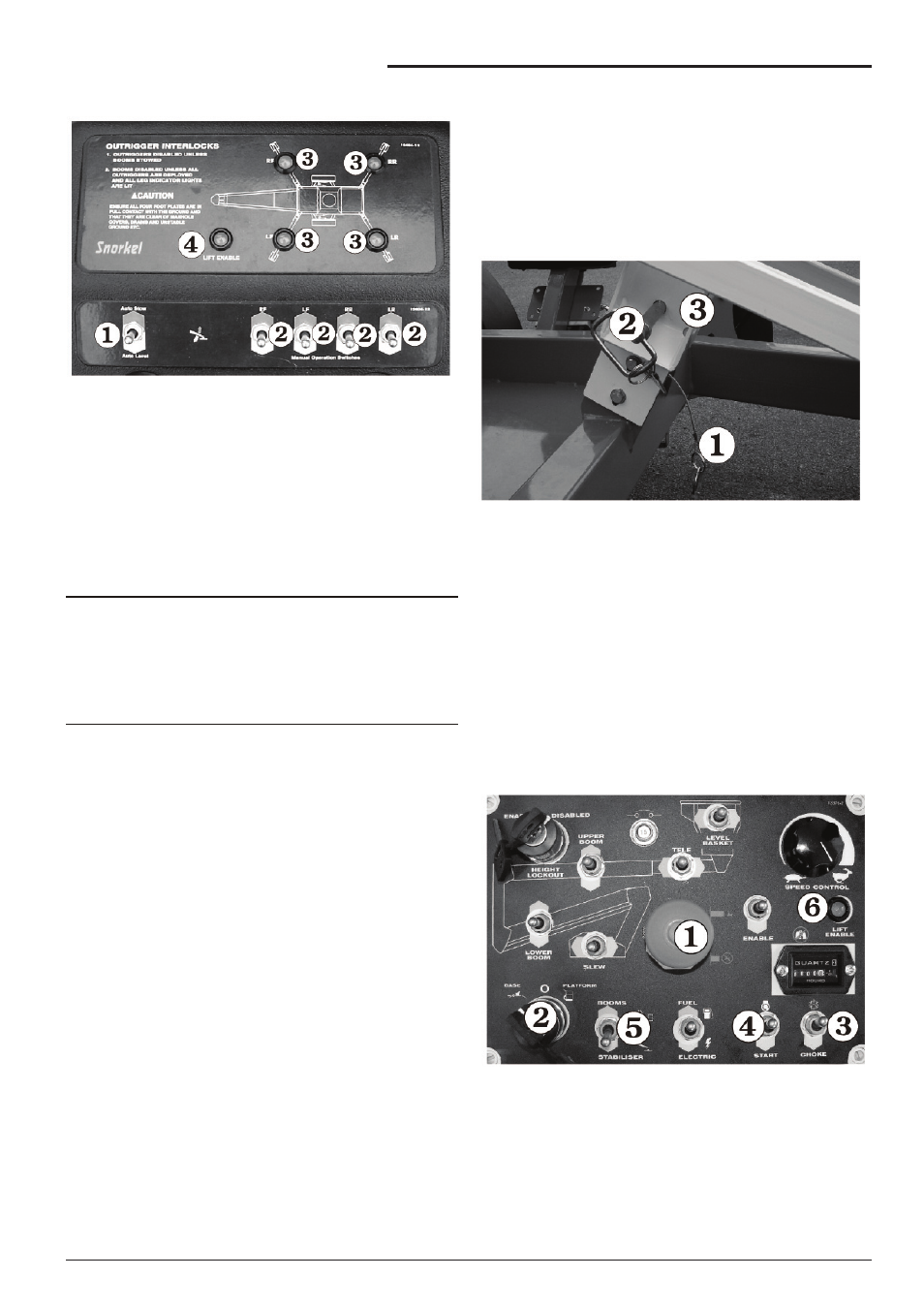

Figure 8.5 - Auto Level Controls
For units fitted with self levelling stabilisers the
following applies:
1. Press and hold down down the auto level
switch Œ
The stabilisers will lower and the machine will
“level” automatically.
NOTE:
Switch Πis also used to raise the stabilisers to the
stowed position. To do so press and hold switch Œ
in the auto stow direction and all the stabilisers will
raise automatically to the stowed position.
NOTE:
Although this option is primarily designed to
automatically set the stabilisers it is also possible to
set the stabilisers manually.
❑
Setting the stabilisers manually
1. Operate each switch Π(see Figure 8.5) to
raise or lower each stabiliser one at a time.
Use the level bubble (see Figure 8.4) to check
the machine is level.
! WARNING
When levelling the machine in either the
manual or automatic mode care is required
to ensure that all the foot plates are firmly
on the ground, the machine is level and the
lift enable light is on before entering the
platform.
■
Unlocking the boom
The boom lock pin must be removed before
operating the booms (see Figure 8.6).
! IMPORTANT
Failure to remove the boom lock pin before
attempting to raise the booms could result in
damage to the machine.
Remove the pin keeper Πand then remove the pin
Πfrom the boom cra dle lock Π.
Figure 8.6 - Boom Cradle Lock
■
Starting From Ground Control Box
Before you begin to operate the TL39T from the
ground control box, a qualified operator must
perform the “Pre-operational Inspection” as
described in chapter 7, of this manual.
To start the engine from the ground control box do
the following:
1. Set the Emergency Stop switch Πto ON (see
Figure 8.7).
Figure 8.7 - Ground Control Box Starting
2. Insert the key and set the Platform/
Ground Selector switch Πto GROUND
(see Figure 8.7).
8. Operation
