Rev C page 6-5
16. Rotator Switch (Future Option):
LEFT rotates the platform to the left.
RIGHT rotates the platform to the right.
NOTE: This switch is not currently available
as an option.
17. Manual Platform Rotator: Turn the handle to
the RIGHT to rotate the platform to the right.
Turn the handle to the LEFT to rotate the
platform to the left. (In sert shows platform
rotator handle folded down).

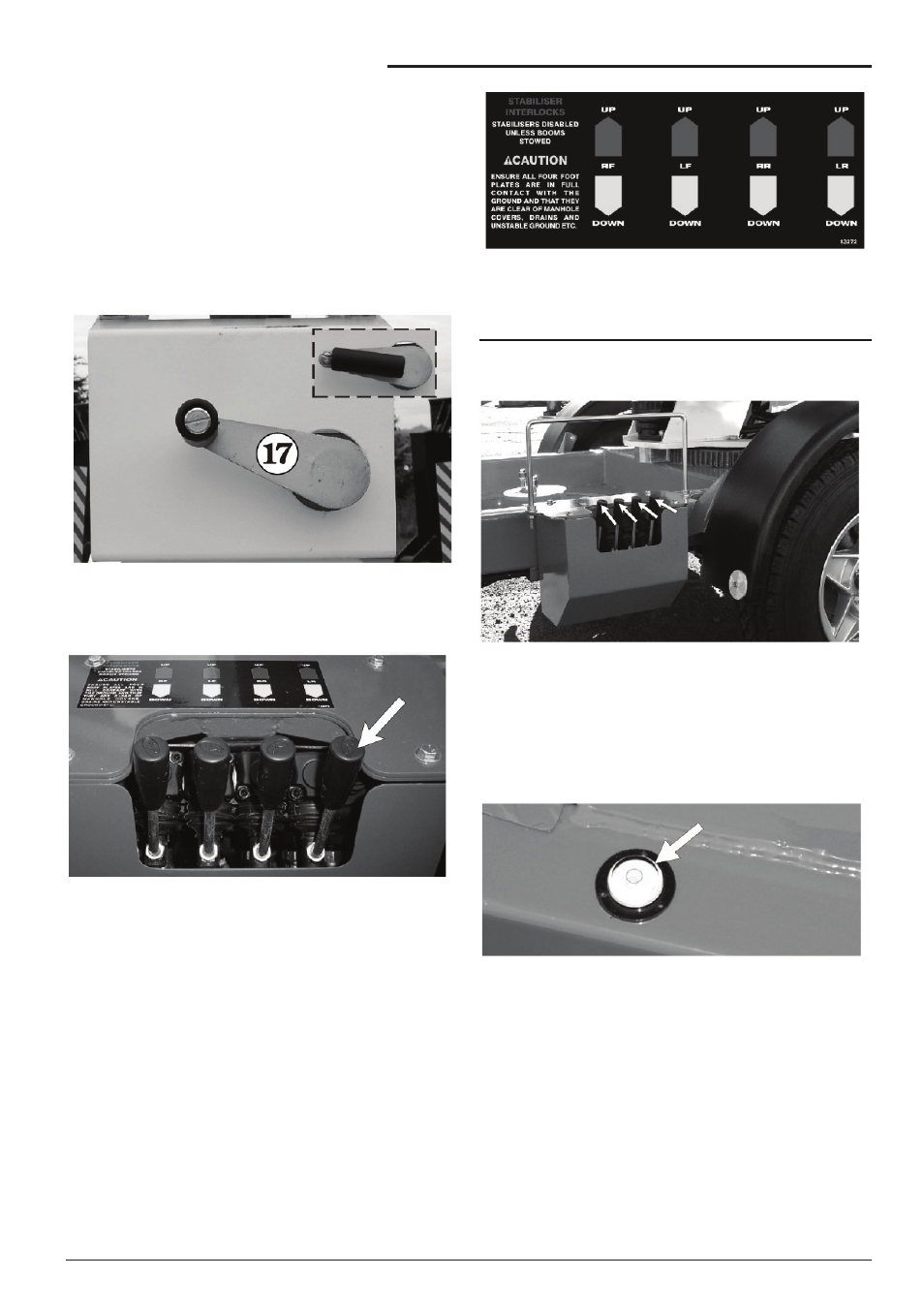

Figure 6.7 - Manual Platform Rotator
■
Stabiliser Controls (Manual)
Figure 6.8 - Stabiliser Controls (Manual)
1. Boom / Stabiliser Switch: Ensure the boom/
stabiliser switch on the lower control box is
set to stabiliser (see Item 6 on page 2 of this
chapter)
Figure 6.9 - Decal Stabiliser Controls
(Manual)
NOTE:
Ensure that the front stabilisers are lowered first to
prevent damage to the jockey wheel.
Figure 6.10 - Stabiliser Controls (Manual)
2. Valve Levers: Operate the valve levers to
activate the stabilisers and level the machine.
3. Bubble level: Use the bubble level to level
the machine.
Figure 6.11 - Bubble Level
6. Controls
MANUAL STA-
BILISER VALVE
LEVERS
