Rev C page 6-3
13. Lift Enable Indicator: The platform can only
be raised when this light is lit. When this light
is not lit the platform will not raise because the
stabilisers are not properly set.
14. Height Lock out Switch (Option): This
switch (when fitted) limits the maximum height
of the boom to 10.9 metres (see Options
Chapter page 5)
15. Fuel / Electric Selector Switch (Option):
This switch (when fitted) allows switching
between different motive sources (see Options
Chapter)
16. OverloadIndicator (Option): This indicator
(when fitted) illuminates when the platform is
over loaded (see Options Chapter).
17. Emergency Lower Controls: Allows the
platform to be lowered in the event of an
emergency (see Chapter 9 “Emergency
Operation”) for details of emergency lowering
procedures.

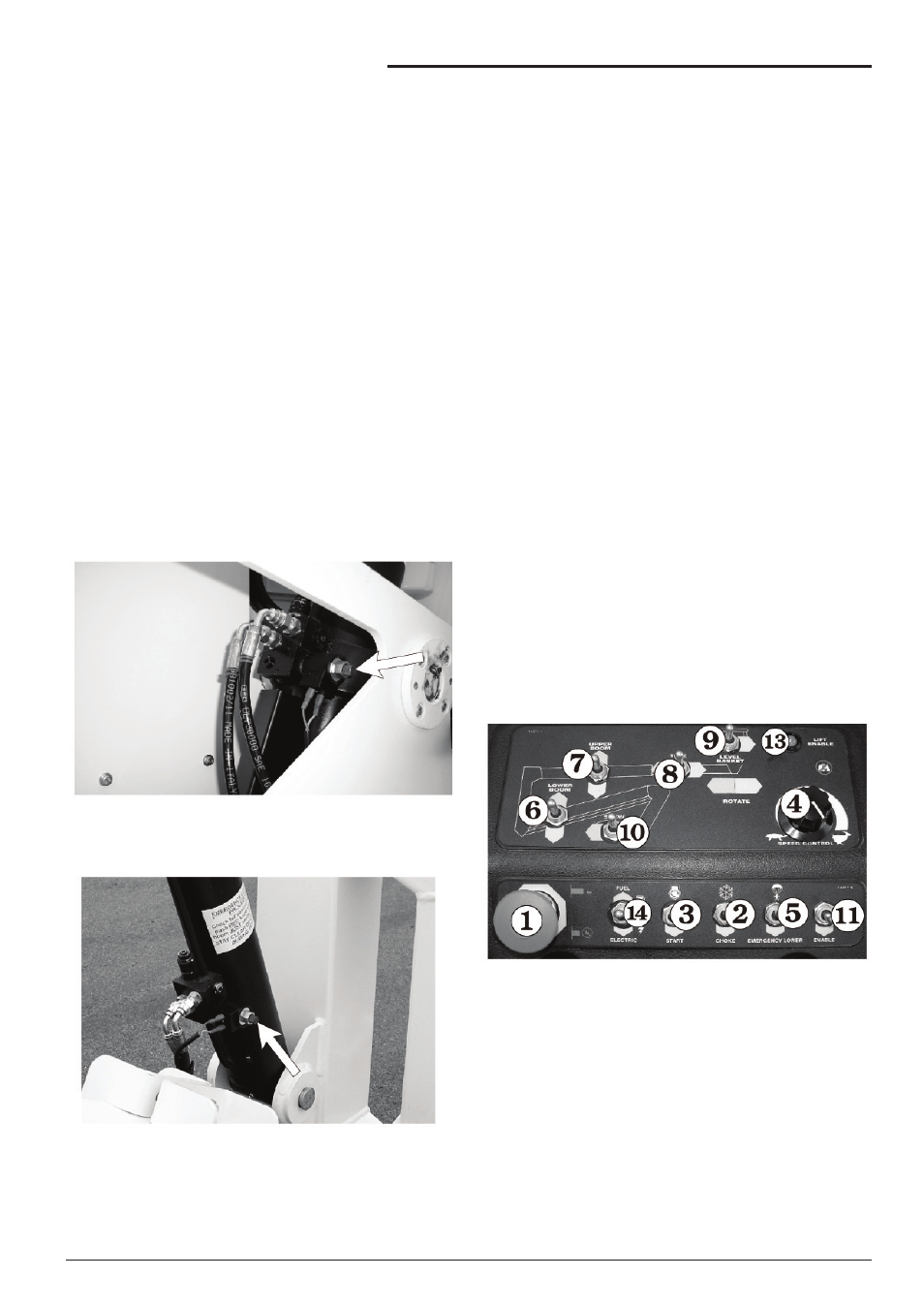

Figure 6.3 - Ground Controls, Emergency
Bleed Down Control Valve, Lower Boom
Figure 6.4 - Ground Controls, Emergency
Bleed Down Control Valve, Upper Boom
■
Platform Control Box
Controls for operating the TL39T from the platform
(upper controls) are located on the platform control
box, with the exception of the foot switch (option)
which is on the platform floor and the manual
basket rotator which is mounted on the front of the
basket.
❑ Upper controls / indicators:
❍
Emergency stop switch
❍
Choke
❍
Start switch
❍
Boom speed rheostat
❍
Emergency lower switch
❍
Lower boom switch
❍
Upper boom switch
❍
Tele boom switch
❍
Level basket switc
❍
Slew switch
❍
Enable switch
❍
Enable foot switch (option)
❍
Lift enable indicator
❍
Fuel / electric selector switch (option)
❍
Overload indicator (option)
❍
Rotate switch (future option)
❍
Manual Rotator
Figure 6.5 - Upper Control Box Controls
1. Emergency Stop: Press the red
EMERGENCY STOP button in, at any time,
under any conditions, and the entire machine
stops, and nothing moves. This switch must
be out (on) to start or run the MHP from the
platform control box. Pull the switch and it will
pop out (on). Press the switch in (off) if the
platform is to stay in one position for a long
time. That will turn the engine off and and
save fuel.
