page 8-6 Rev C
8. Operation
This is a safety feature to prevent the platform
from moving if a platform moving switch, or
controller, is accidentally pushed.
These platform moving switches, (Œ through Œ), will
produce the following movement.
1. Lower boom switch: Moving this switch up
will raise the lower boom, whilst pressing it
down will cause the lower boom to descend.
2. Upper boom switch: Moving this switch up
will raise the upper boom, whilst pressing it
down will cause the upper boom to descend.
3. Tele boom switch: Moving this switch to
the right causes the telescopic boom to
extend, whilst moving it to the left causes the
telescopic boom to retract.
4. Slew switch: Pressing this switch to the left
causes the column/boom/platform assembly
to rotate to the right, whilst pressing the switch
to the left causes the column/boom/platform
assembly to rotate to the left.
5. Platform level switch: Pressing the switch
to the left causes the platform to tilt forward
whilst moving the switch to the right causes
the platform to tilt backwards.
❑
Rotating the platform
A manual platform rotator is provided for this
purpose (see Figure 8.13).

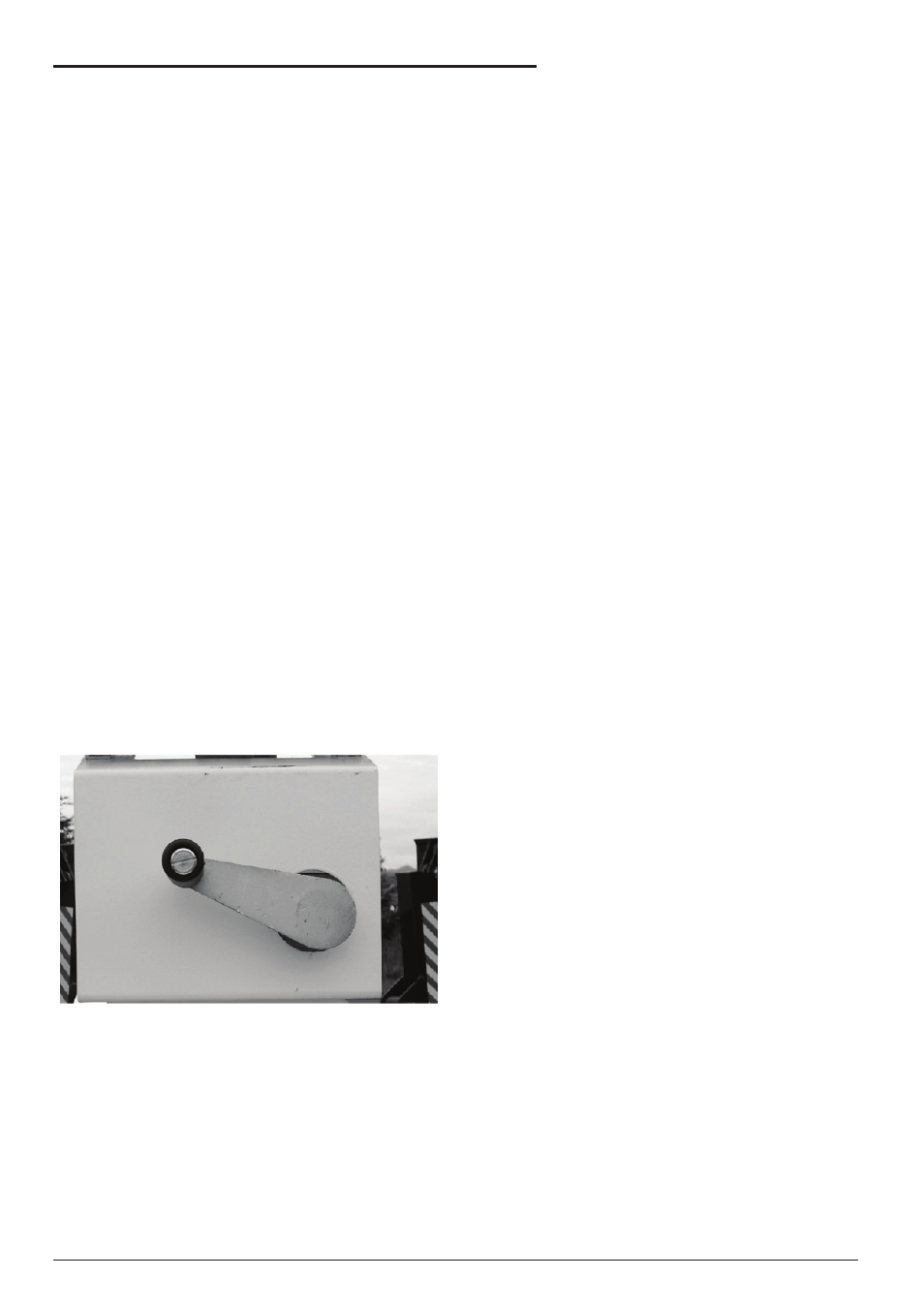

Figure 8.13 - Platform Rotation
Turning the handle in an anti-clockwise direction
will rotate the platform to the left whilst turning
the handle in a clock wise direction will rotate the
platform to the right.
■
Securing for Day
At the end of each work day the TL39T should be
returned to the STOWED POSITION and locked
as described under “Stowing” in the “Stowing and
Transporting” chapter 10.
