STEERING BOX SKID INSTALLATION

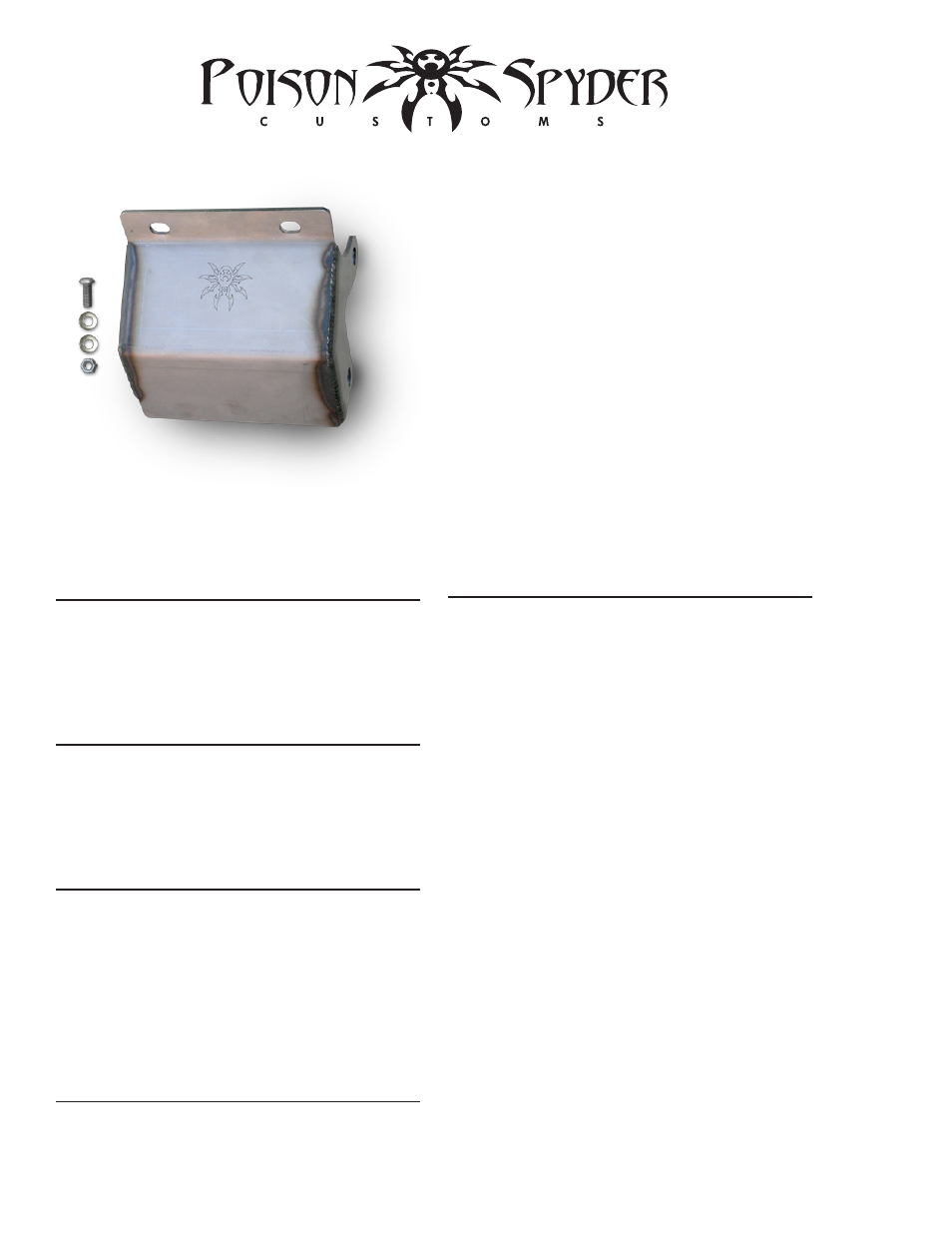

Poison Spyder Customs Steering Box Skid fully

protects one of your Jeep’s most vulnerable

and vital components: your steering gear box.

Installation of the Steering Box Skid should take

less than one hour.

PARTS LIST (YJ)

(1) Steering Box Skid
(2) 3/8-16 X 1 button head cap screw
(4) 3/8 flat washer
(2) 3/8-16 nylon insert lock nut

PARTS LIST (TJ & LJ)

(1) Steering Box Skid
(1) 1/2-13 X 1 button head cap screw
(2) 1/2 flat washer
(1) 1/2-13 nylon insert lock nut

TOOLS NEEDED

• T55 Torx wrench or socket with ratchet
• Drill motor
• 3/8” (YJ) or 1/2” (TJ or LJ) drill bit
• 7/32” (YJ) or 5/16” (TJ or LJ) hex key (Allen

wrench) or socket with ratchet

• 9/16” (YJ) or 3/4” (TJ or LJ) end wrench or

socket with ratchet

INSTALLATION PROCEDURE
1. Remove the lower torx
bolt that holds the

bumper in place on the driver’s side of the

frame On the outside of the frame rail,

remove the two forward bolts that hold the

steering box in place (there are other bolts

that hold the steering box in place, so there

is no need to support the steering box).

2. Hold the steering box skid in place and

thread all three bolts that were removed

back into place. Torque these bolts to factory

specs.

3. On the Steering Box Skid there is one more

hole that is located to the far left (if you are

looking at the front of the Jeep) that is flush

with your OE bumper. Drill a 3/8” (YJ) or

1/2” (TJ & LJ) hole through the OE bumper

using the hole in the skid plate as a template.

Use the provided hardware to finish the

installation.

WARRANTY
Poison Spyder Customs™ warranties all of the

products we sell and distribute for one (1) year

from the date of sale. These products will be

free from defects in material and workmanship

under normal installation, and use. Due to the

intended use the powder coat finish is warranted

for ninety (90) days. The finish warranty will not

cover a product if it has been damaged in any

way. Warranty is limited to repair or replacement.

Poison Spyder Customs™ does not offer any

type of labor or shipping allowance and all

warranty claims are subject to inspection by

Poison Spyder Customs™.
