Installation
A - Unpacking the dispenser
The box(es) you have received contain:
1 x Machine Base Assembly (for floorstand models)
1 x Turntable Assembly (This may be already assembled onto the base)
x Colorant Canisters, each with a lid, attached pump and fixing screws
1 x Operation Manual
A plastic bag or box containing:
1 x Allen Key for Pump Calibration (Note: Pumps preset in factory)
1 x No. 2 Phillips head screwdriver (for attaching canisters)
1 x ¼” spanner (for remote canister bracket attachement)
2 x Valve Inserts with "O" Rings
1 x Valve Insert Wrench (to enable pump to be removed from canister)
1 x Outer Piston Seal Kit complete with reusable Assembly Tool
2 x Nozzle Wiper Arms (with pads)
3 x Nozzles (larger bore)
3 x Nozzles (smaller bore)
1 x Inner Piston complete with reusable Assembly Tool
If any of these parts are missing, contact your supplier of F&FM immediately.

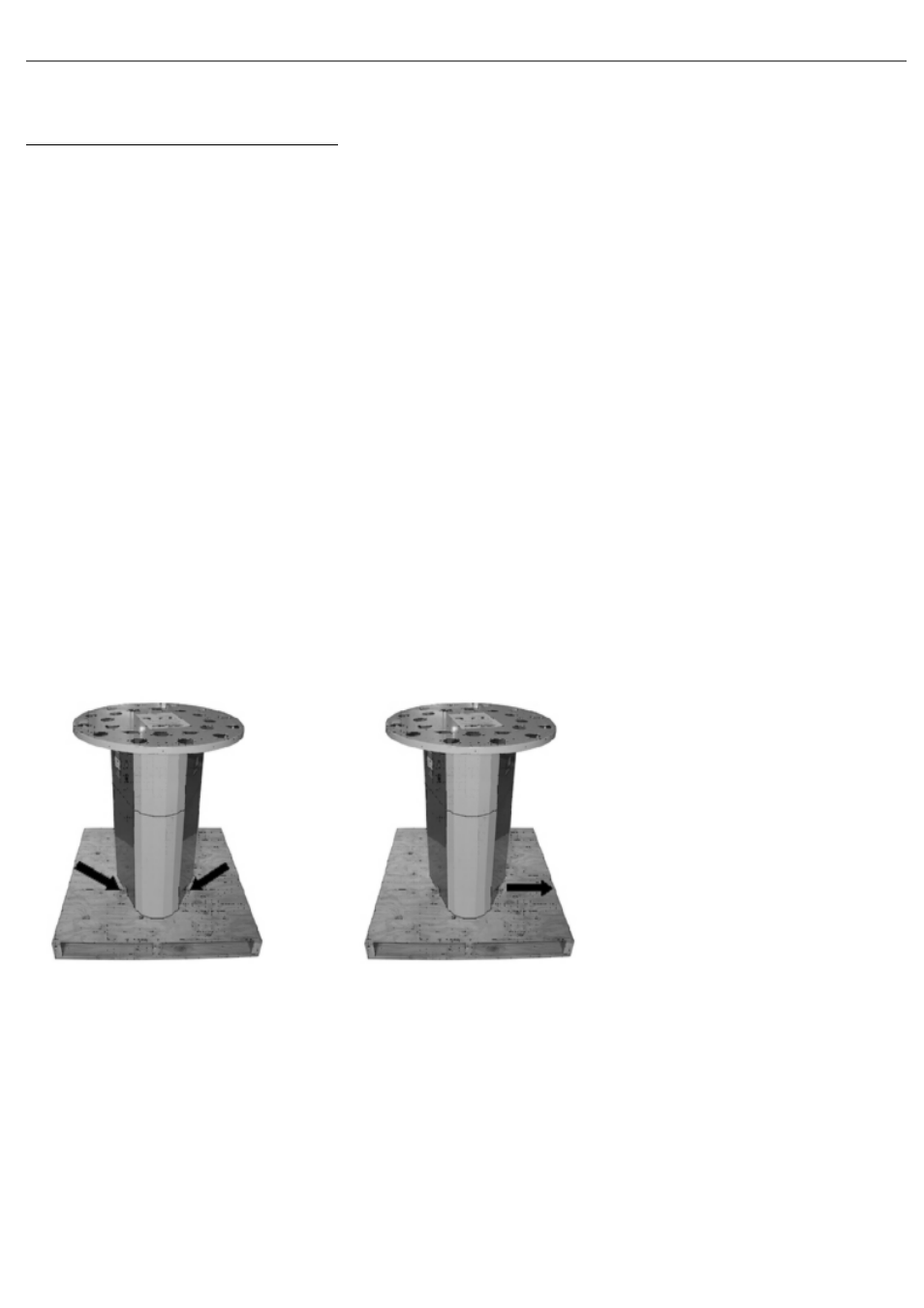

Step 1 - Detach the dispenser from its transport
skid
>
Unscrew the 2 transport
screws connecting the
machine to the skid
Carefully maneuver the
machine off the skid
