J - Pump Calibration (Models 53 XB/XD/XE)
Recalibration of the pump is necessary if either of the original gauges have been replaced by another (for any
reason). It is not required if only a gauge scale detail (metalcal) has been replaced. When recalibrating the
pump, please leave the pump/canister fixed in place on the machine.
Tools required:
 1 x Allen (hex) key 3/32” A/F

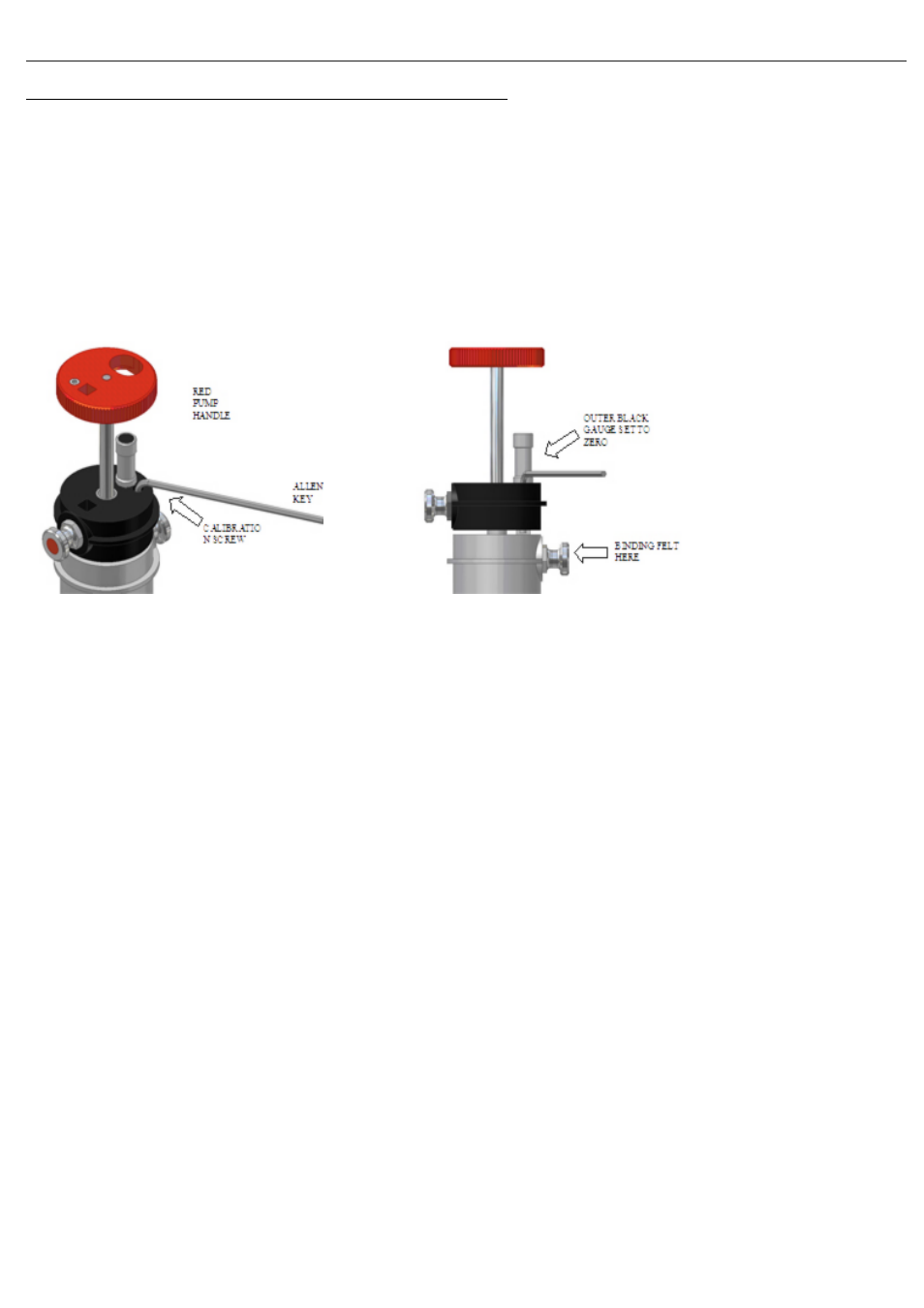

Step 1 - Outer pump calibration
>
(1) Calibrate the outer pump first
by removing the inner pump (red)
gauge and lifting the red pump
handle approximately 4” or
100mm. Lock the black outer pump
gauge into the top hole (zero
position). Using the Allen key,
undo the calibration grubscrew
until free movement can be felt
between the outer pump (black)
handle and the outer gauge knob. (2) Carefully wind the grubscrew
down until no free movement is felt
between the outer pump handle and
the gauge knob, being careful not to
over-adjust. When correctly adjusted
there should be a slight binding felt
on the black gauge locking pin (as
the locking pin shaft enters the hole
in the gauge).
