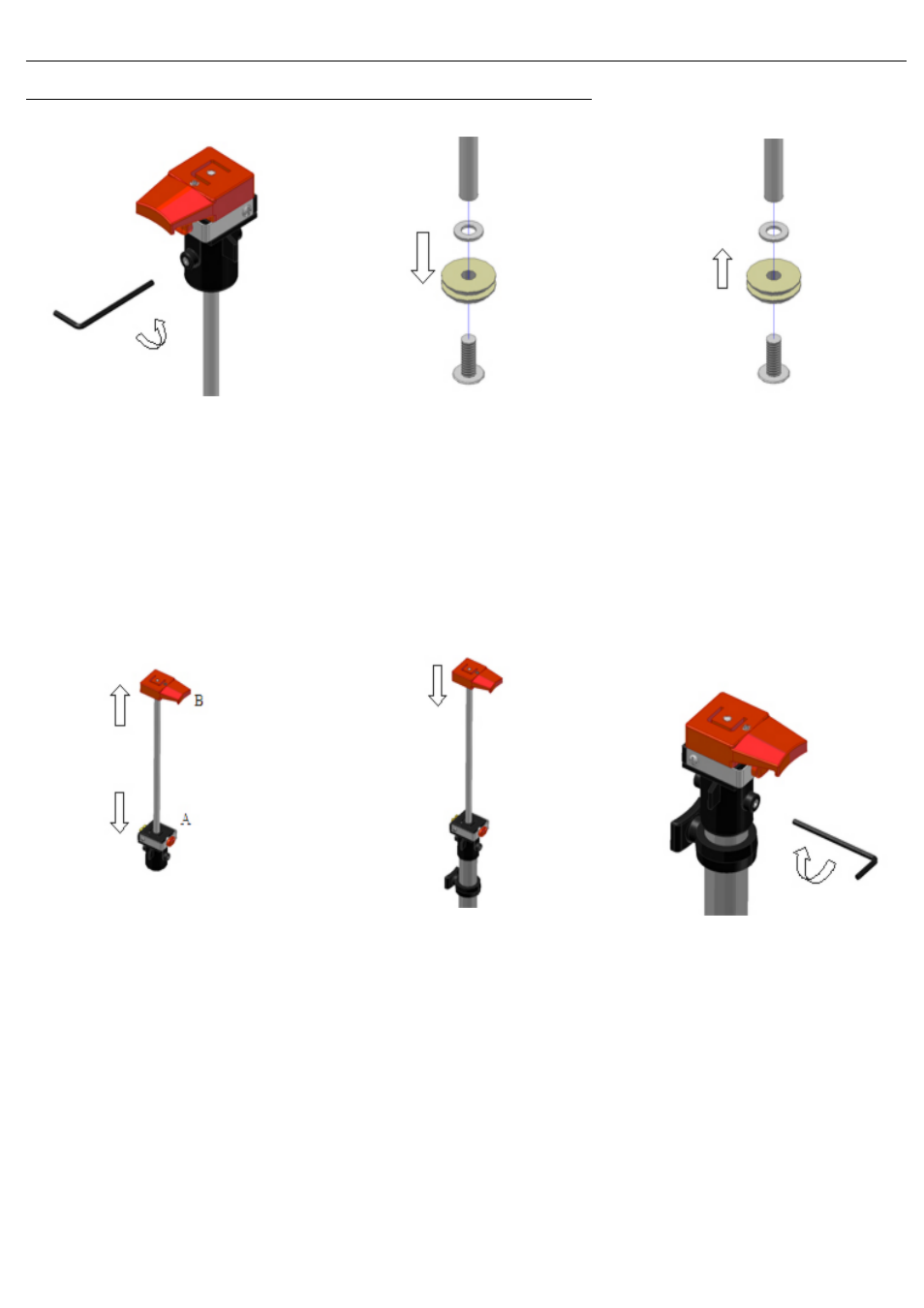

E - Replacement of Piston Seals (Models 22/23 XC)
> >
(1) Loosen both grubscrews
in the cylinder of the end cap
(use Allen key provided) and
remove the plunger
assembly from the cylinder.
Remove the gauge and clean
all colourant from the
plunger assembly. (2) Remove the old piston
retaining screw and discard
the screw, piston and
washer. Remove the new
piston from retainer. (3) Smear a trace of Loctite
262 on the screw thread and
secure the new piston with
the washer behind. Tighten
the screw only until the
piston can no longer be
rotated by hand.
> >
(4) Holding the end cap (A)
in one hand, pull the red
handle (B) until the piston is
fully withdrawn inside the
end cap. (5) After lightly oiling the
top inside edge of the
cylinder, position the plunger
assembly on the cylinder
with one hand. With the
palm of the other hand,
firmly push the red handle
down fully. (6) Lightly tighten the end
cap grubscrews, and refit the
gauge.
