Electrical System
9.2
534D-9, 534D-10 & 544D
9.1
ELECTRICAL COMPONENT
TERMINOLOGY
To understand the safety, operation, and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and
location of the electrical components of the machine. The
following illustration identifies the components that are
referred to throughout this section.
9.1.1

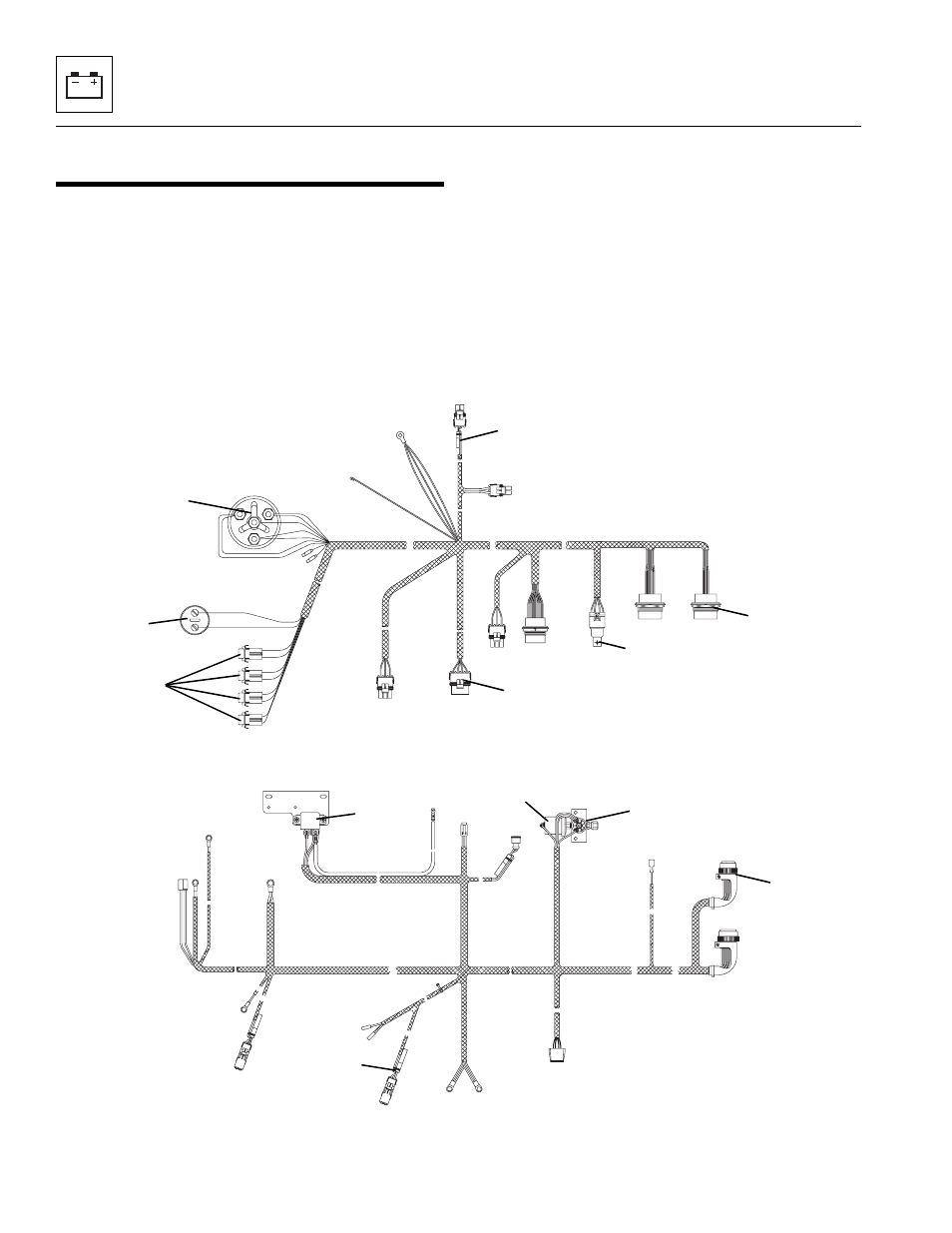

General Overview (Cab and Engine Harness)
MX0930
ON
C
B A
NC
B A
A
B
C
D
AC
C
BAT
IGN
ST
A
B
B A
A
C
B
A
C
B
HORN BUTTON
IGNITION SWITCH
FUSES
RECEPTACLE
CONNECTOR
RELAY
WEATHER PACK
CONNECTOR
PLUG
CONNECTOR
RELAY
OIL PRESSURE
SENDER
MOLDED DIODE
CAB HARNESS
CHASSIS HARNESS
OIL PRESSURE
SWITCH
MOLDED DIODE
