8-port OC-12c and OC-48c POS interface module
Single-Speed OC-192c POS interface modules
The front panel of the single-speed OC-192c POS interface modules contain the following features:
•
One or two ports that accommodate XFP optics.
•
An LED that indicates if power is being received by the module.
•
Four LEDs per port that indicate the following port status: Active or Local Rail, TX Pkt, RX Pkt,
and Carrier Rcvd or Remote Fail.
•
Two IN and two OUT RJ-48C connectors to provide a BITS external clock source and to
propagate a common clock source (Line or BITS) among POS modules.
illustrate these features.

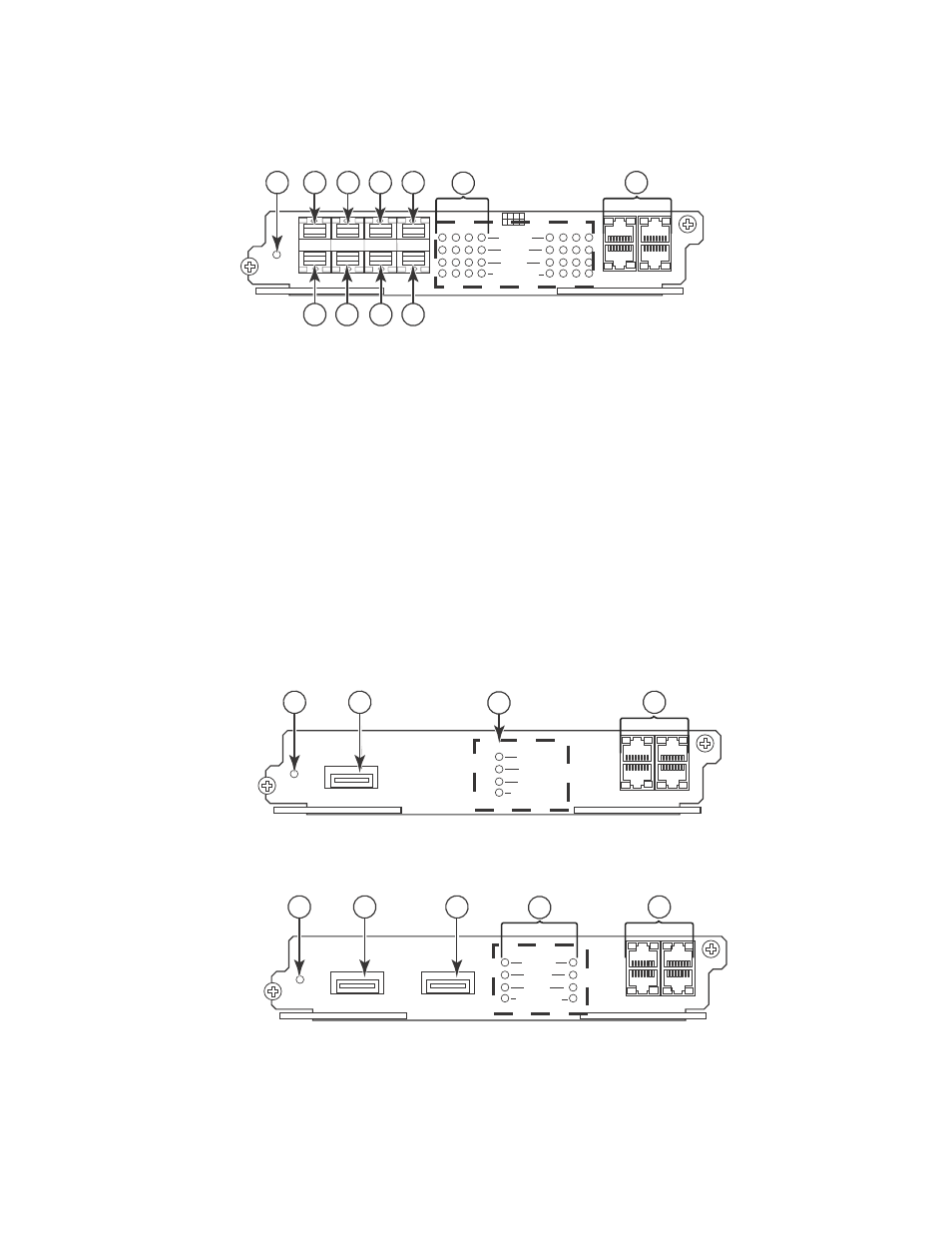

FIGURE 29
1-port OC-192c POS interface module
FIGURE 30
2-port OC-192c POS interface module
1
Power
4
Port 3
7 Port 6
10 Port status LEDs
2
Port 1
5
Port 4
8 Port 7
11 BITS clocking ports
3
Port 2
6
Port 5
9 Port 8
1 Power
2 Port 1
3 Port status LEDs
4
ZBITS clocking ports
1 Power
2 Port 1
3
Port 2
4
Port status LEDs
5
BITS clocking ports
