138 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1002373-02
Installing a Brocade MLXe-32 router
2
Follow these steps to connect a DC power source.
1. Use a #1 Phillips screwdriver to remove the screw that secures the safety cover, as shown in
Figure 102 . Remove the safety cover.

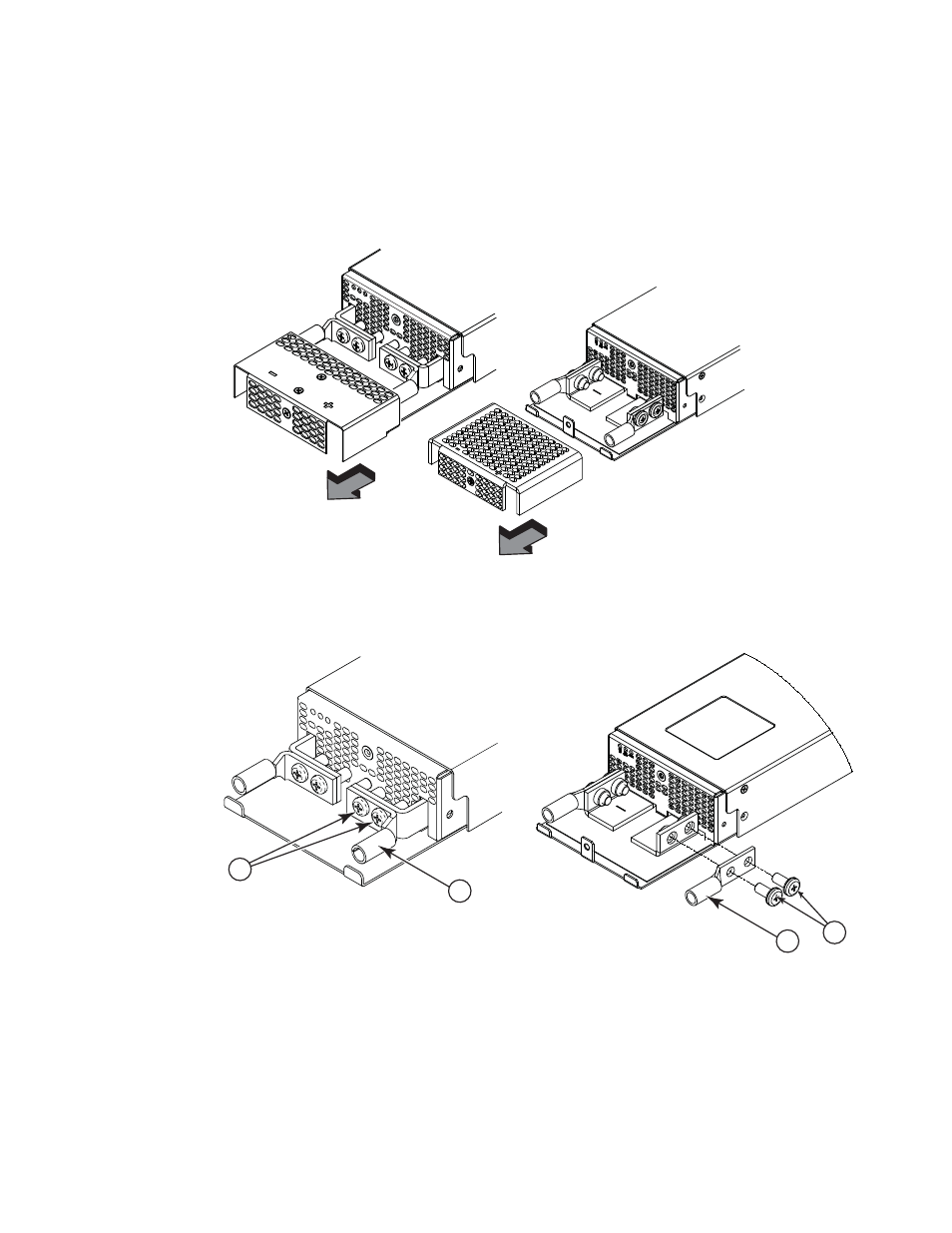

FIGURE 102 Removing the safety cover (2400W power supply and 3000W power supply displayed)
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to Figure 103 .
FIGURE 103 Removing the power lugs (2400W power supply and 3000W power supply displayed)
3. Crimp the correct AWG power supply wire into the power lugs.
For 2400W power supplies: #4 AWG power supply wire
For 3000W power supplies: #2 AWG power supply wire
Refer to
Figure 104 .
1 Power lug screws 2 Power lug
1
2
2
1
