106
Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1002373-02
Mounting Brocade MLXe-4, -8, or -16 routers in a 4-post rack or cabinet
2
3. Attach the side plates to the router using 8 4-40 flat head screws. Refer to
.

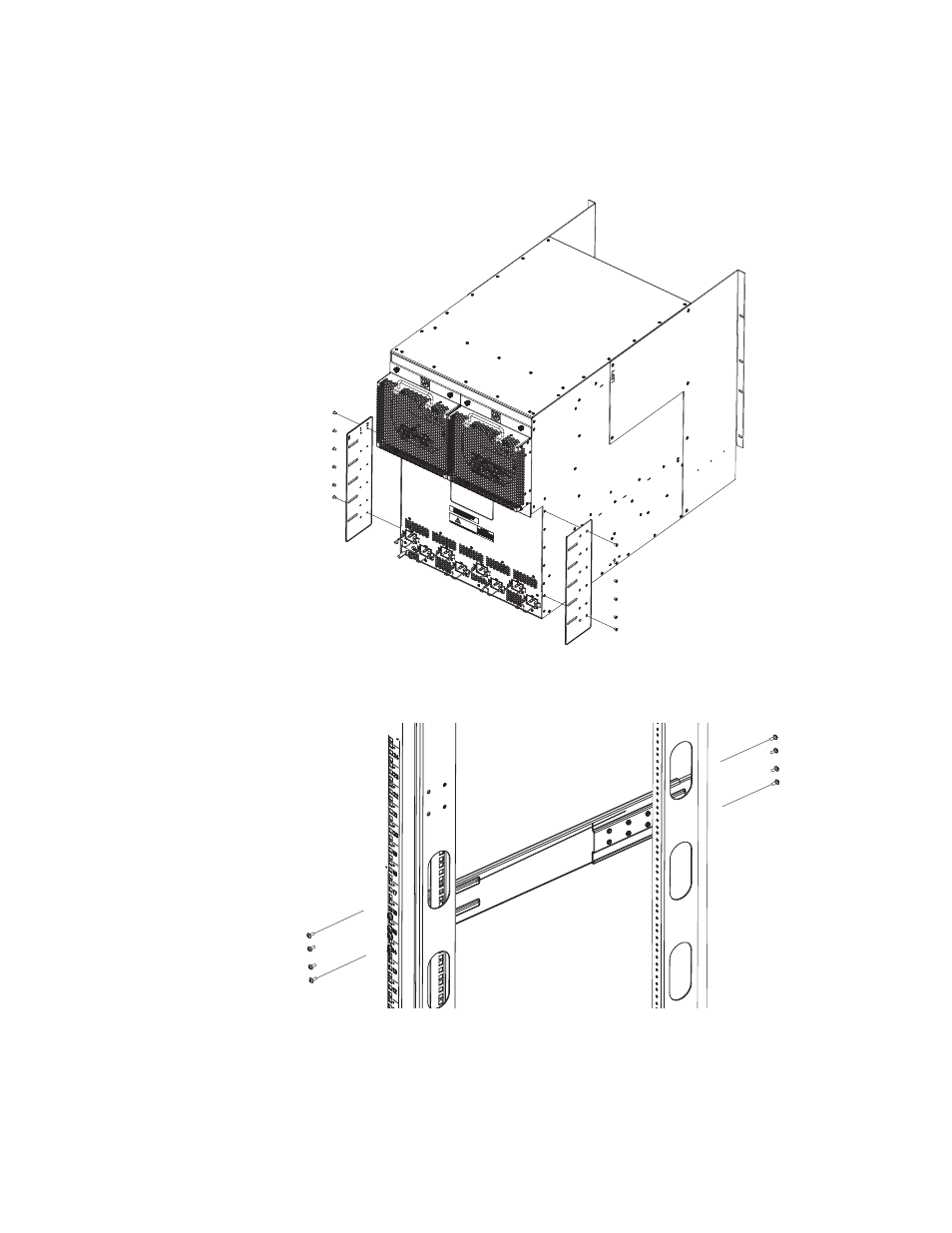

FIGURE 72
Attach the side plates to the rear sides of the device
4. Attach the telescoping rails to the mounting posts in the cabinet or rack. Refer to
FIGURE 73
Attach telescoping rails to cabinet or rack mounting posts (one rail shown)
