Page 324
306
Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide
53-1002373-02
mRJ21 procedures
5

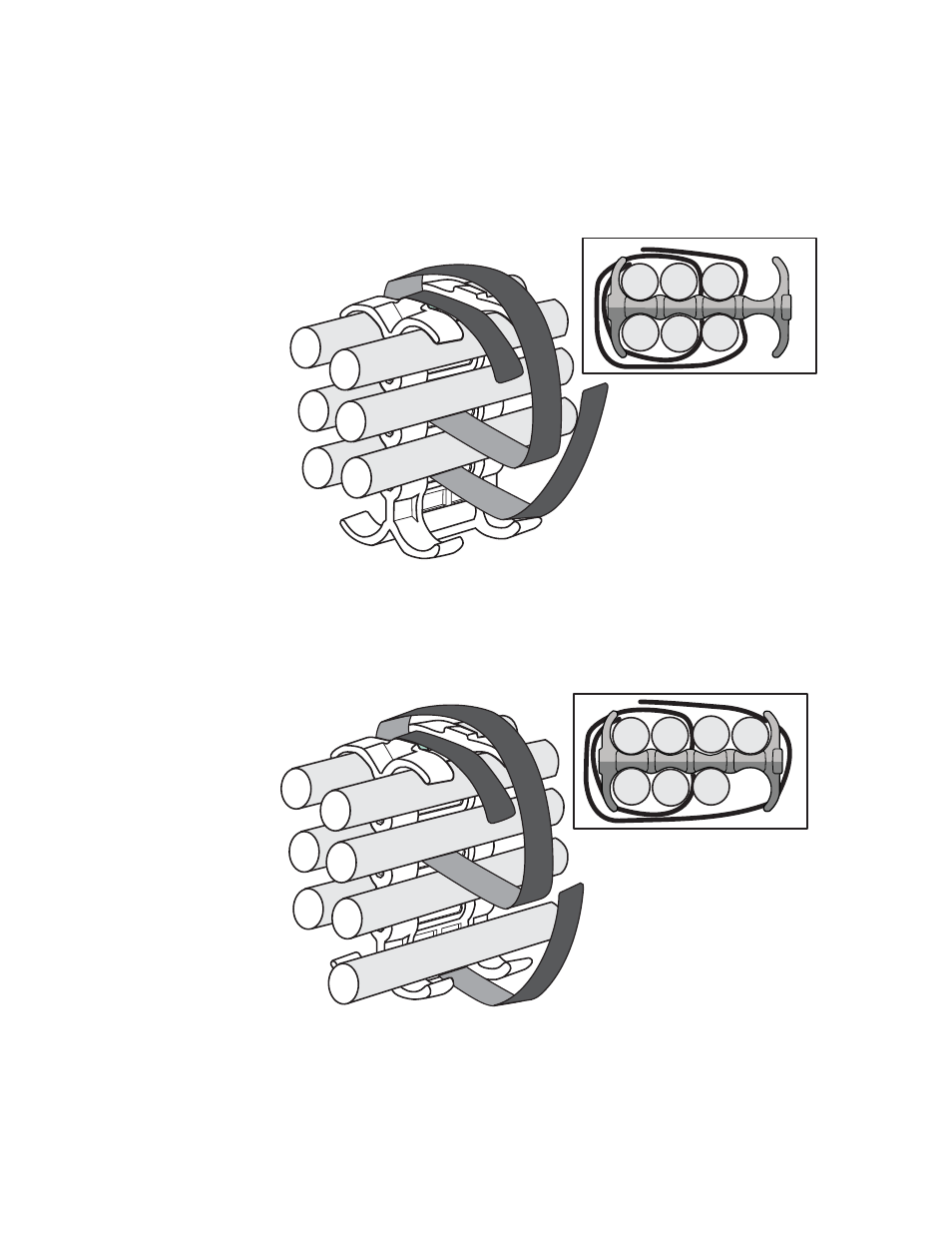

Cable cinch with six mRJ21 cables
Six mRJ21 cables may be secured as shown in
.
FIGURE 216
Six mRJ21 cables
Cable cinch with seven mRJ21 cables
Seven mRJ21 cables may be secured as shown in
FIGURE 217
Seven mRJ21 cables
