RJ45 procedures
5

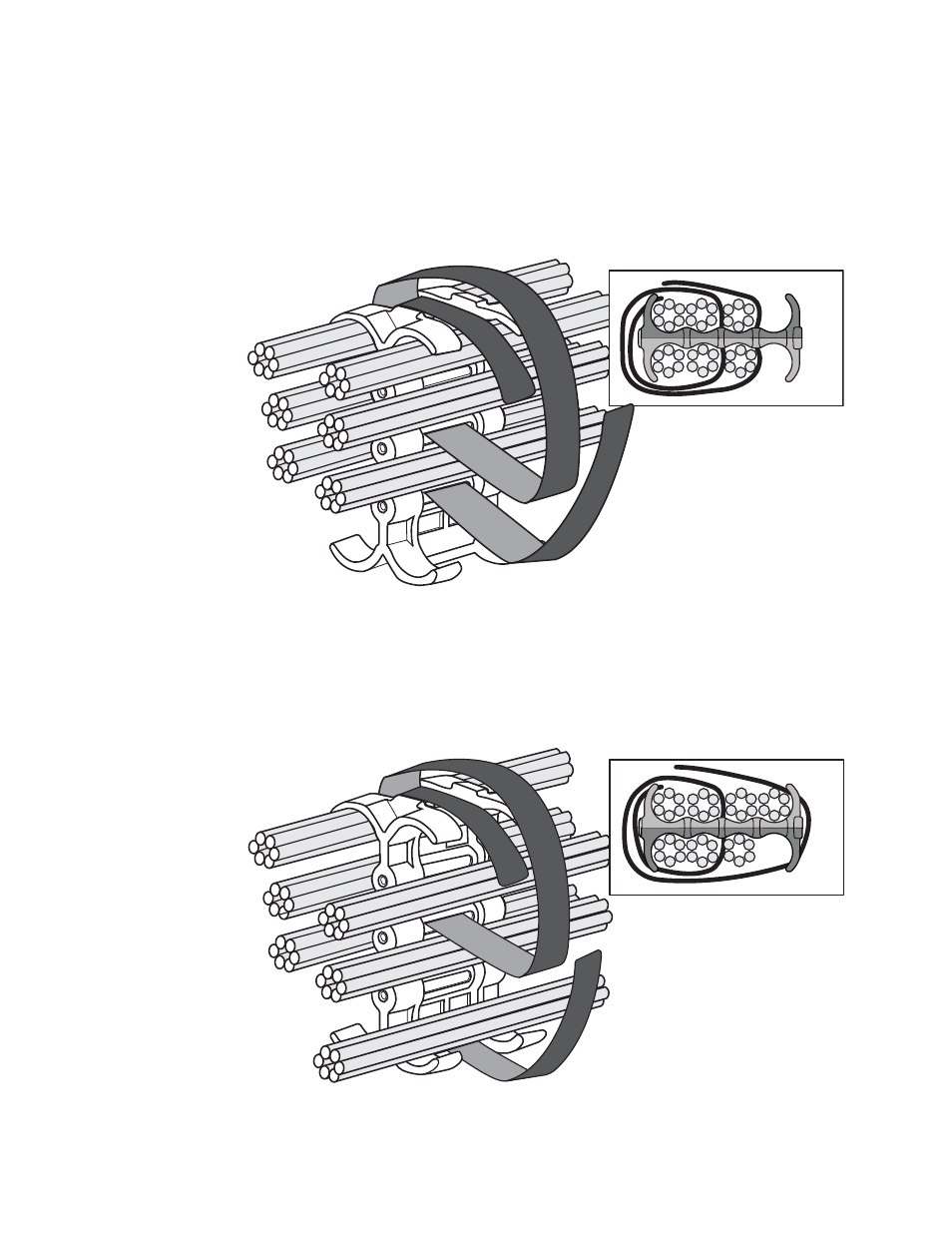

Cable cinch with six groups of RJ45 cables
36 RJ45 cables, in six groups, may be secured as shown in
.
FIGURE 224
36 RJ45 cables in six groups
Cable cinch with seven groups of RJ45 cables
42 RJ45 cables, in seven groups, may be secured as shown in
FIGURE 225
42 RJ45 cables in seven groups
