208 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide53-1002373-02
Installing a Brocade MLX-32 router
3

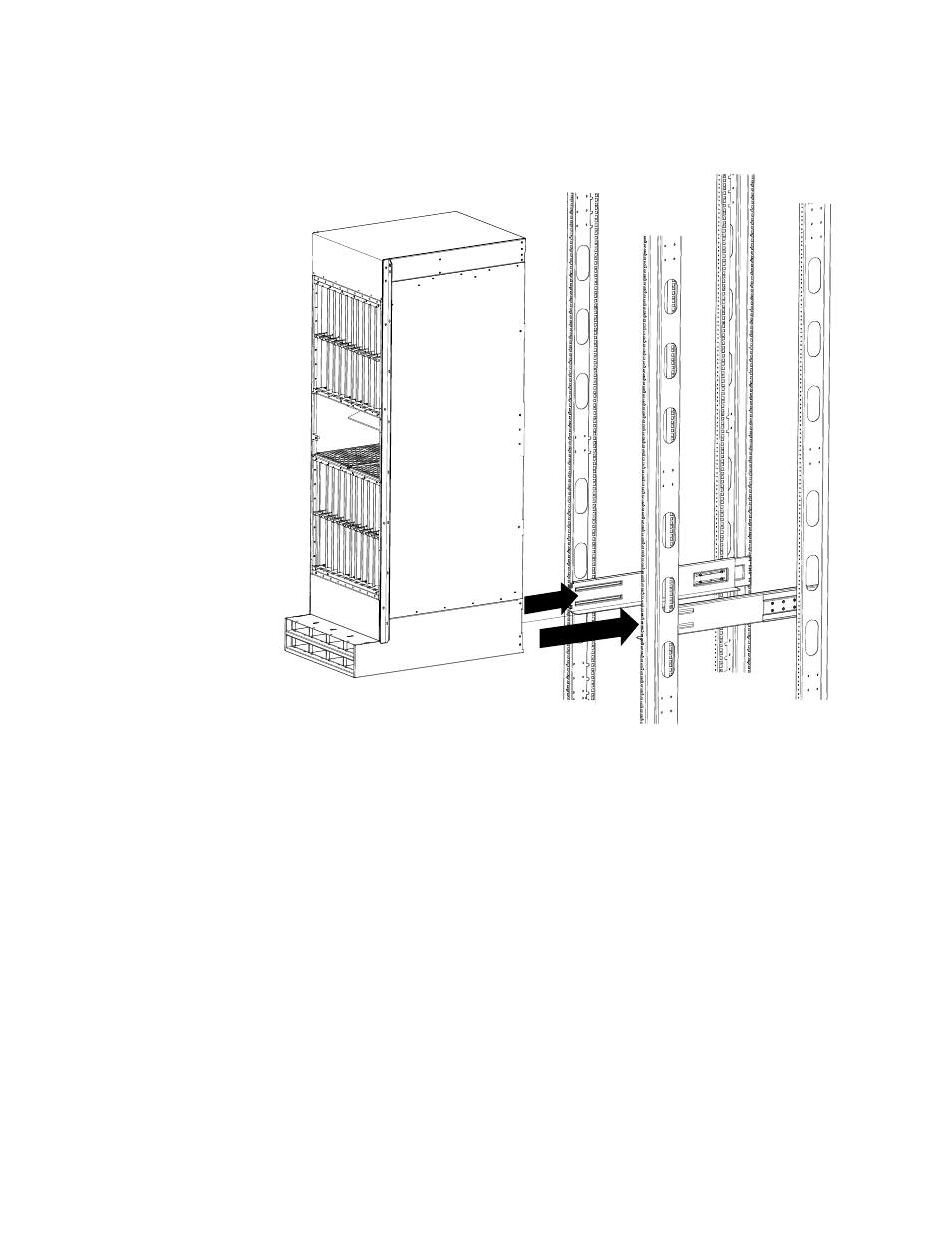

FIGURE 145 Slide the chassis in the rack
6. Once the chassis is securely inserted in the rack, fasten the mounting ears to the front rails of
the rack using screws appropriate for your rack type (eight screws per side). Refer to
Figure 146 .
