Installing a Brocade MLX-32 router
3

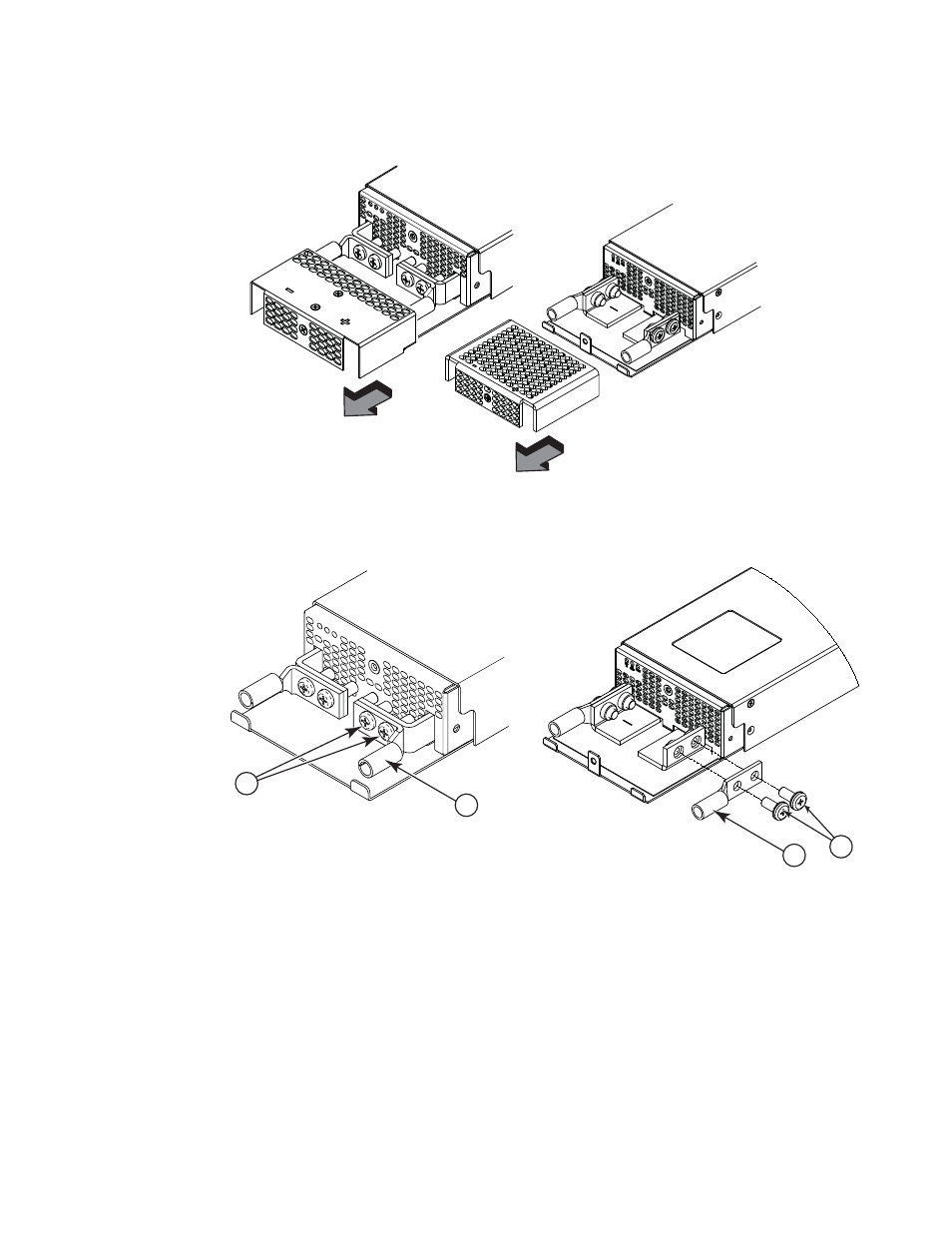

FIGURE 161 Removing the safety cover
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to Figure 162 .
FIGURE 162 Removing the power lugs (2400W power supply and 3000W power supply displayed)
3. Crimp the correct AWG power supply wire into the power lugs:
#4 AWG wire for 2400 W power supply
#2 AWG for 3000 W power supply
Refer to
Figure 162 .
1 Power lug screws 2 Power lug
1
2
2
1
