Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 219
53-1002373-02
Installing a Brocade MLX-32 router
3

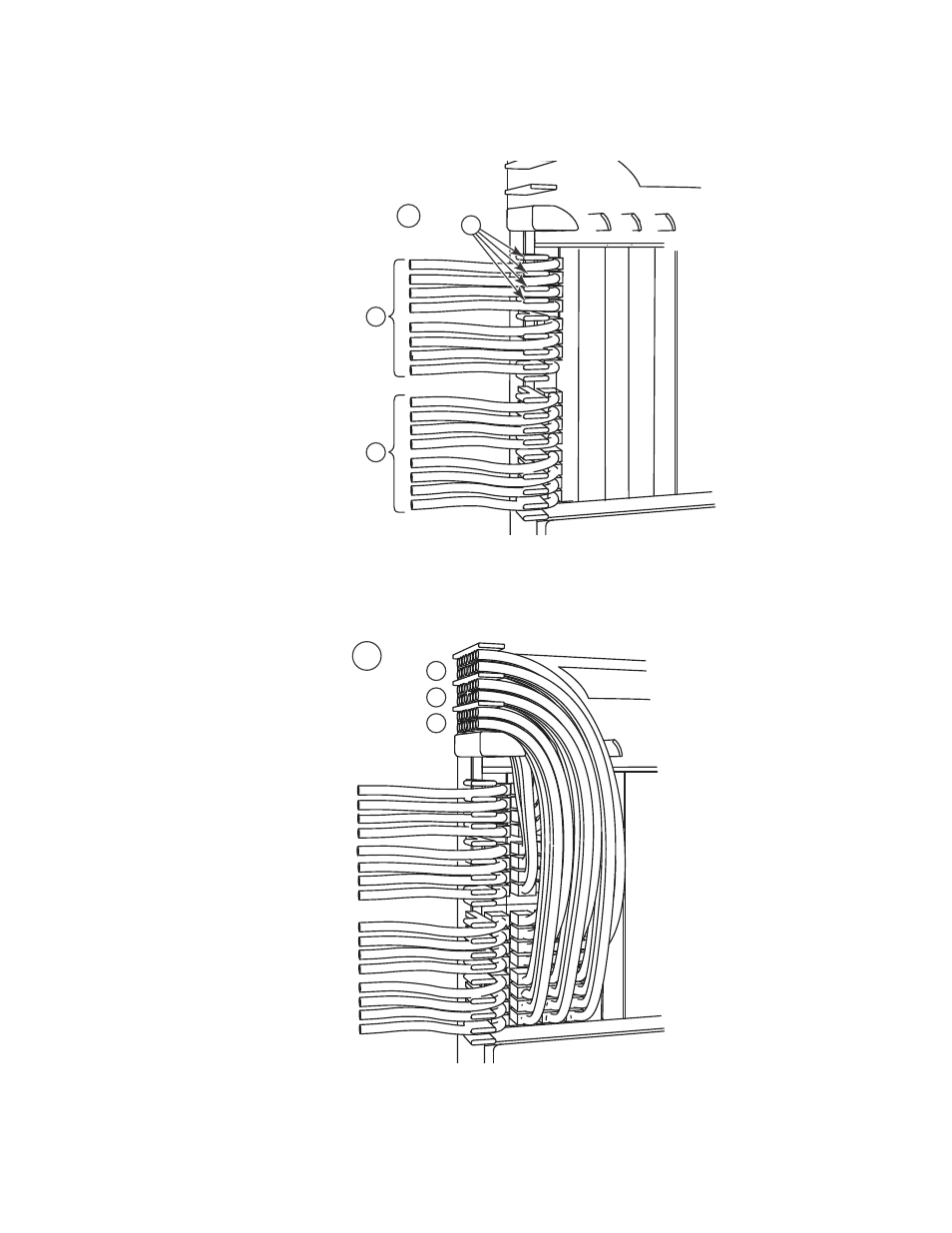

FIGURE 154 Routing lower-left quadrant cables
FIGURE 155 Routing lower-left quadrant cables
1 Lower left quadrant 3 Cables from slot #18
2 Cables from slot #17 4 Side combs (18)
1 Lower left quadrant 3 Comb B (slot #21 and #22 cables)
2 Comb A (slot #19 and #20 cables) 4 Comb C (slot #23 and #24 cables)
2
4
1
3
1
2
3
4
