Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 15
53-1002373-02
Hardware features
1
Brocade NetIron XMR 16000 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to four switch fabric modules.
• Up to 16 interface modules.
• Up to eight power supplies (AC or DC)
Figure 11 displays the Brocade NetIron XMR 16000 router.

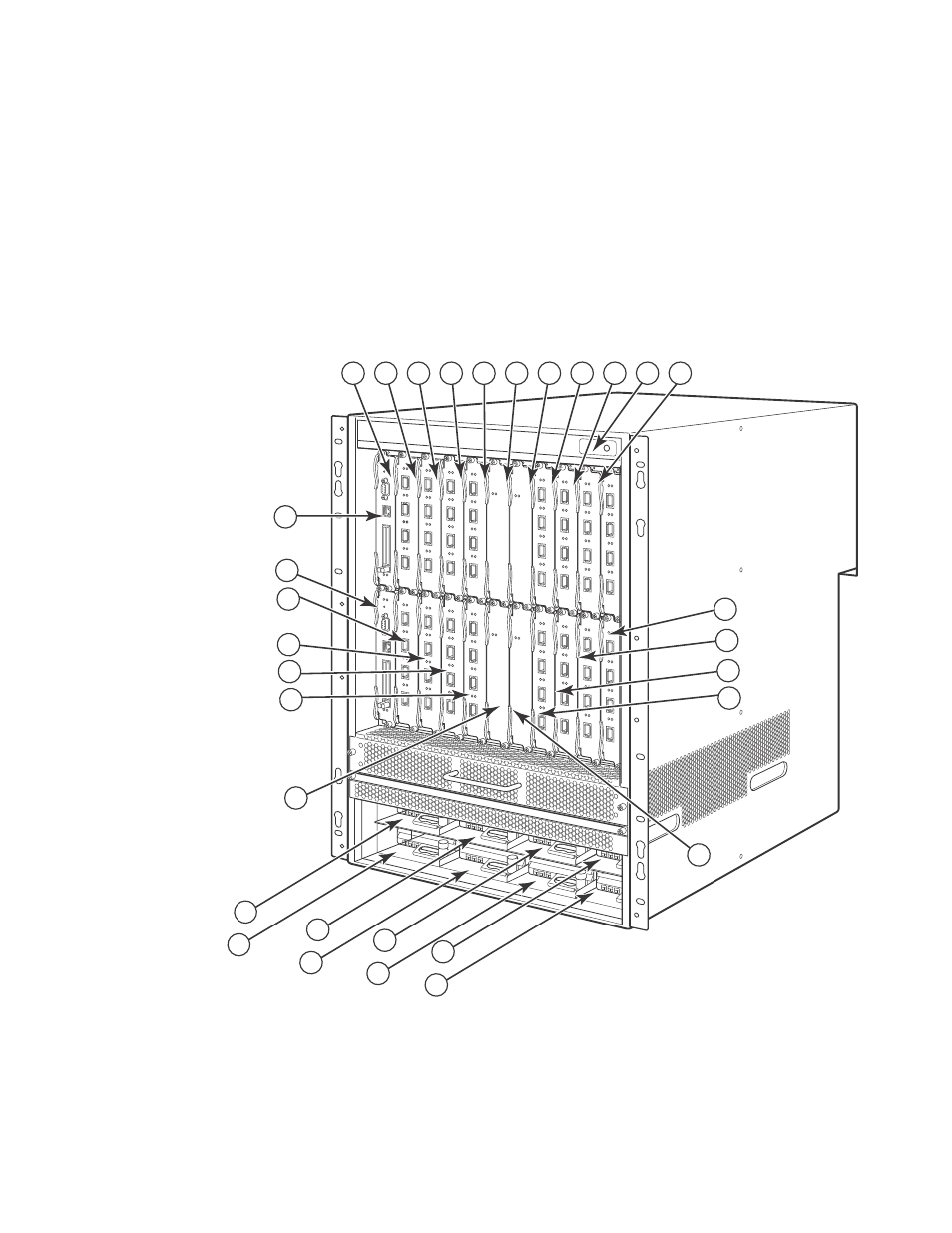

FIGURE 11 Brocade NetIron XMR 16000 router
1-16 Interface slots 1-16 20 Switch fabric slot 4 24-31 Power supplies
17 Switch fabric slot 1 21 Management slot 1
18 Switch fabric slot 2 22 Management slot 2
19 Switch fabric slot 3 23 ESD connector
12
13
14
15
16
17
18
19
20
21
22
23 1
2
3
4
5
6
7
8
9
10
11
24
28
25
29
26
30
27
31
