Power cords
9
Power cords
The types of power cords provided with routers are specific to the country where they are installed.
To order a power cord, contact your Brocade supplier.
describes power cord types.
TABLE 67
Management port pin assignments
Pin number
MDI-X ports
1
TD+
2
TD-
3
RD+
4
Not used (10BaseT)
CMT (100BaseTX)
5
Not used (10BaseT)
CMT (100BaseTX)
6
RD-
7
Not used (10BaseT)
CMT (100BaseTX)
8
Not used (10BaseT)
CMT (100BaseTX)

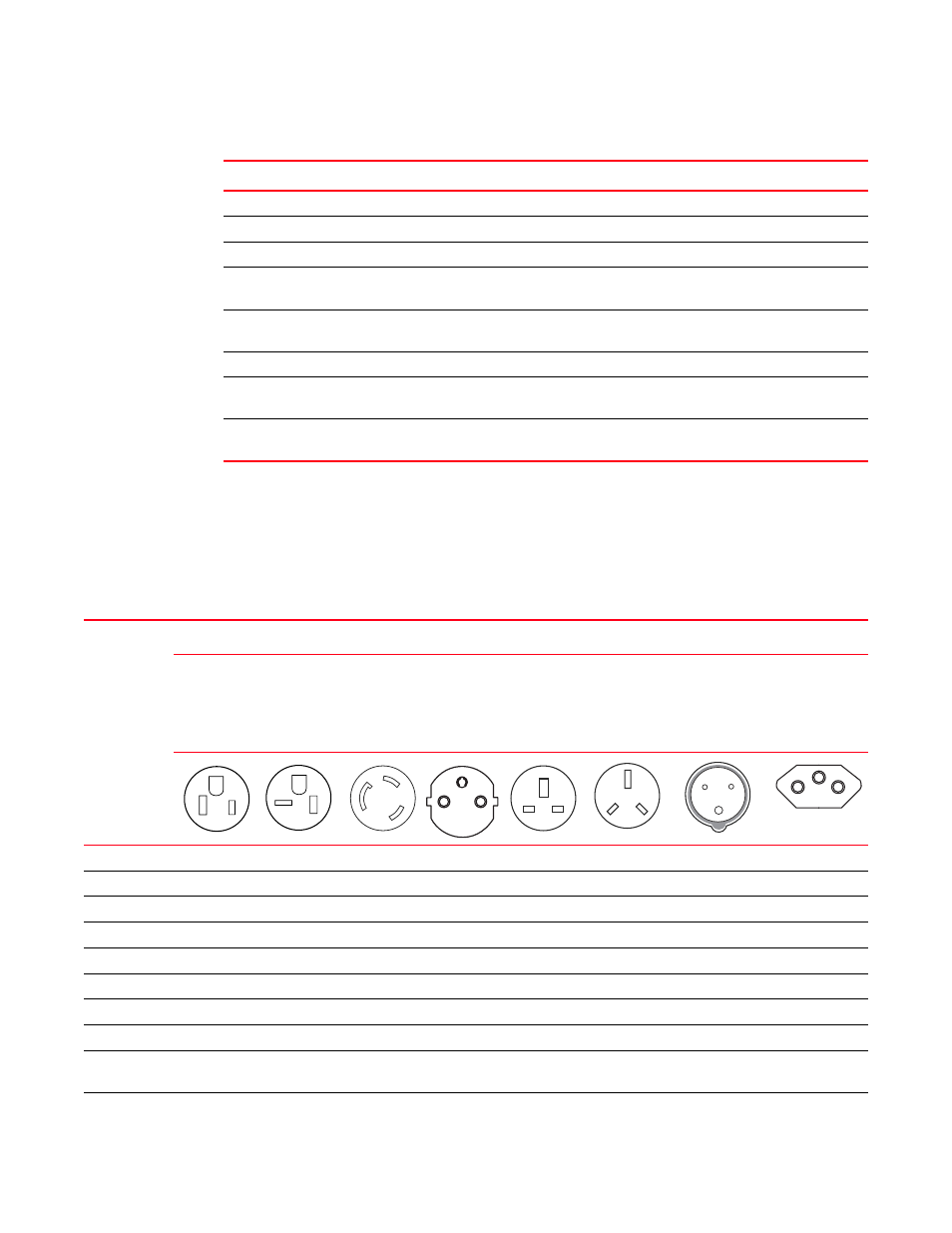

TABLE 68
Power cord types (international)
Country
Plug style
NEMA 5-15P
125V for
MLXe/MLX 4,
8, 16-slot
devices
NEMA 5-20P
125V. 16A for
MLXe/MLX 4,
8, 16-slot
devices
NEMA L6-20
CEE-7/7
“Schuko”
BS-1363A
AS 3112
IEC-60309
20A. 3-wire, 220
- 250V
NBR 14136
Argentina
X
Australia
X
Austria
X
Bahrain
X
Belgium
X
Brazil
X
Canada
X
X
Chile
X
China,
People’s Rep.
X
Czech. Rep.
X
