Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide53-1002373-02
Installing a Brocade MLX-8 router
3
2. Lift the cord retainer and connect an AC power cord to the associated power supply AC Inlet, as
shown in
3. Snap the cord-retainer over the power plug to hold it in place.

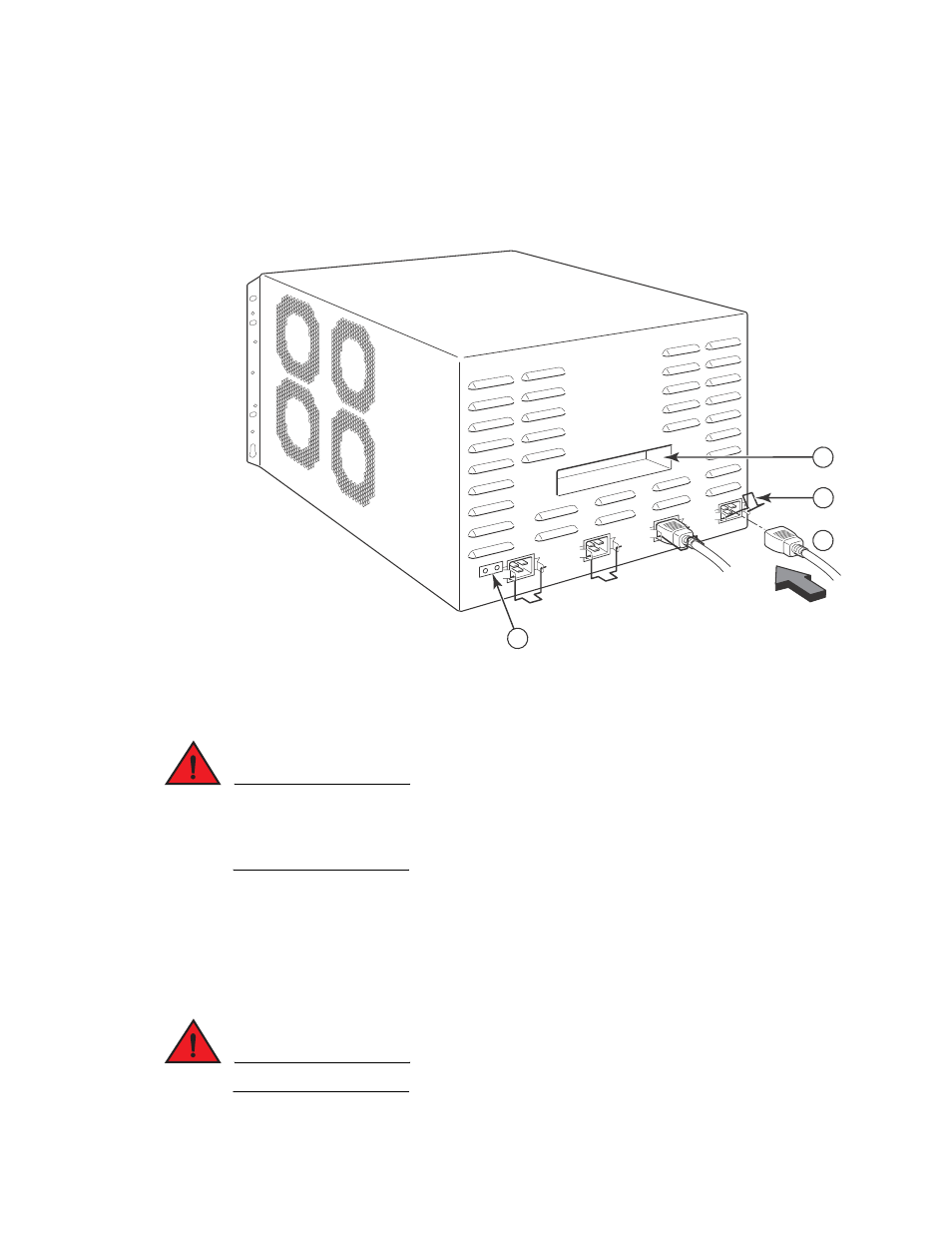

FIGURE 122
Connecting a power cord to the power supply in a Brocade MLX-8 router
DANGER
If the installation requires a different power cord than the one supplied with the device, make
sure you use a power cord displaying the mark of the safety agency that defines the regulations
for power cords in your country. The mark is your assurance that the power cord can be used
safely with the router.
For information about powering on the system, refer to
Connecting DC power
You can provide DC power for the Brocade MLX-8 router by installing a DC-to-DC power supply. The
DC-to-DC supply converts 48V-DC input from a power source to 12V-DC for your router.
DANGER
The procedure in this section is for qualified service personnel.
1
Lift handle
3
Power cord
2
Cord retainer
4
Ground point
1
2
3
4
