6

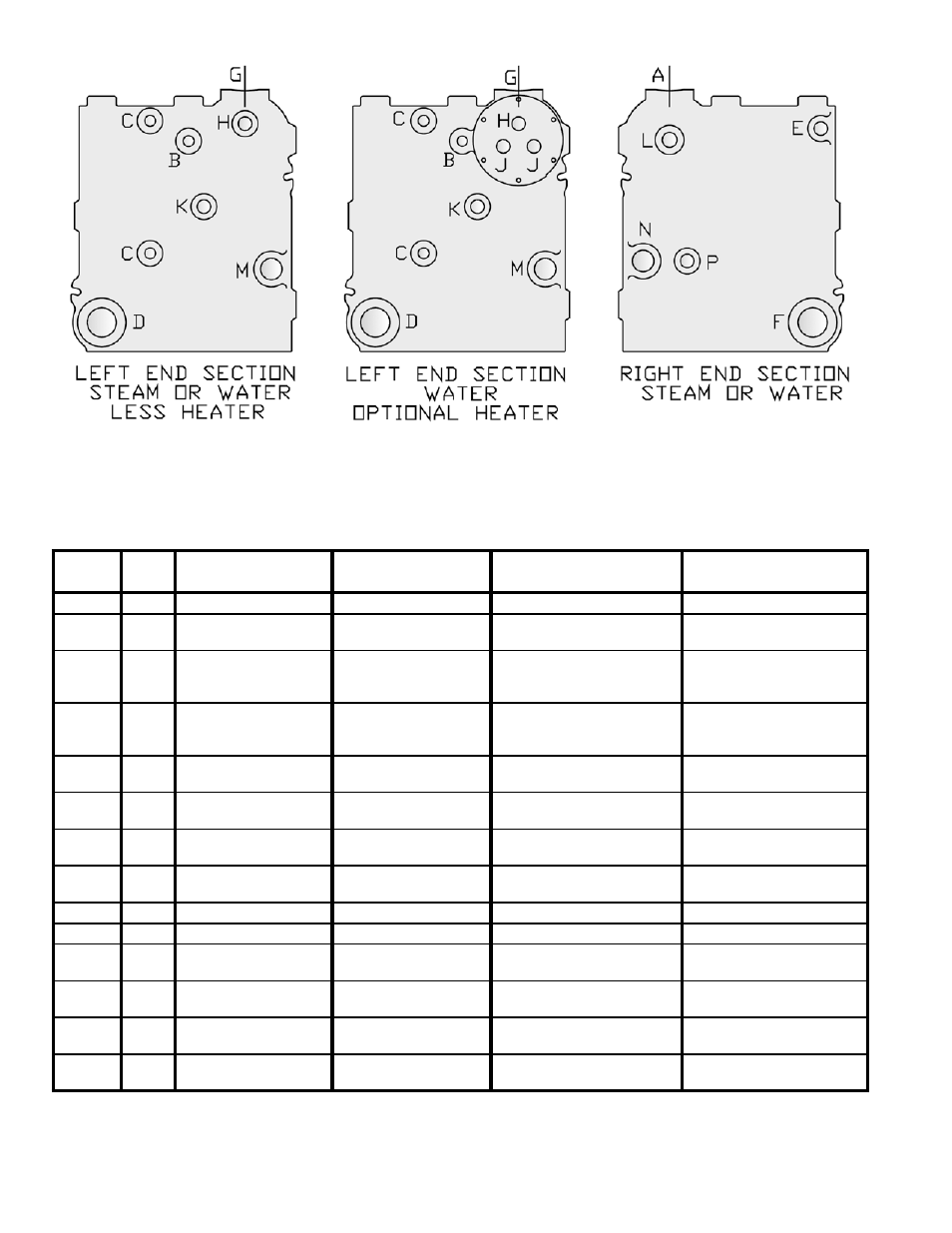

Figure 2: Section Tappings

Table 1: Trim and Control Installation in Section Tappings

Tapping Size

(NPT)

Steam Boiler with

Probe L.W.C.O.

Steam Boiler with

Float L.W.C.O.

Water Boiler

Water Boiler with

Tankless Heater

A

2

Supply

Supply

Supply

Supply

B

½

Bush to ¼

Pressure Gauge

Plug

Plug

Plug

C

½

Gauge Glass

Nipple & ½ Union

Gauge, L.W.C.O. Street

Elbow, Syphon & Limit

Plug Lower Tapping Bush

to ¼ Upper Tapping

Press./Temp. Gauge

Plug Lower Tapping Bush to

¼ Upper Tapping

Press./Temp. Gauge

D

2

Return

Return

Bush to 1½, 3" Npl, Elbow,

2" Npl, Circ. Flange,

Gasket, Circulator Return

Bush to 1½, 3" Npl, Elbow,

2" Npl, Circ. Flange,

Gasket, Circulator Return

E

¾

3" Nipple & Street Elbow

Safety Relief Valve

3" Nipple & Street Elbow

Safety Relief Valve

3" Nipple & Street Elbow

Safety Relief Valve

3" Nipple & Street Elbow

Safety Relief Valve

F

2

Bush to ¾ Drain Valve

and/or Optional Return

Bush to ¾ Drain Valve

and/or Optional Return

Bush to ¾ Drain Valve and/or

Optional Gravity Return

Bush to ¾ Drain Valve and/or

Optional Gravity Return

G

2

Optional Supply (IN3-6)

Required Supply (IN7-12

Optional Supply (IN3-6)

Required Supply (IN7-12

Plug (IN3-12)

Optional Gravity Supply

Plug (IN3-12)

Optional Gravity Supply

H

¾

Bush to ¼ &

Syphon Limit

Bush to ¼

Pressure Gauge

Well

Limit

Well

Limit

J

¾

Not Applicable

Not Applicable

Not Applicable

Tankless Heater

K

¾

Low Water Cutoff

Plug

Plug

Plug

L

1

Factory Plugged

Surface Blow-Off

Factory Plugged

Surface Blow-Off

Factory Plugged

Factory Plugged

M

Factory Plugged

Alliance Return

Factory Plugged

Alliance Return

Factory Plugged

Factory Plugged

N

Factory Plugged

Alliance Supply

Factory Plugged

Alliance Supply

Factory Plugged

Factory Plugged

P

¾

Factory Plugged

Alliance Limit

Factory Plugged

Alliance Limit

Factory Plugged

Factory Plugged
