USER’S GUIDE

2–10

Install the Oil Bottle and the Fuser Cleaner

1. Open the Top Cover.

2. Unlock the Cleaning Roller Lock Levers and Oil Bottle Lock Levers.

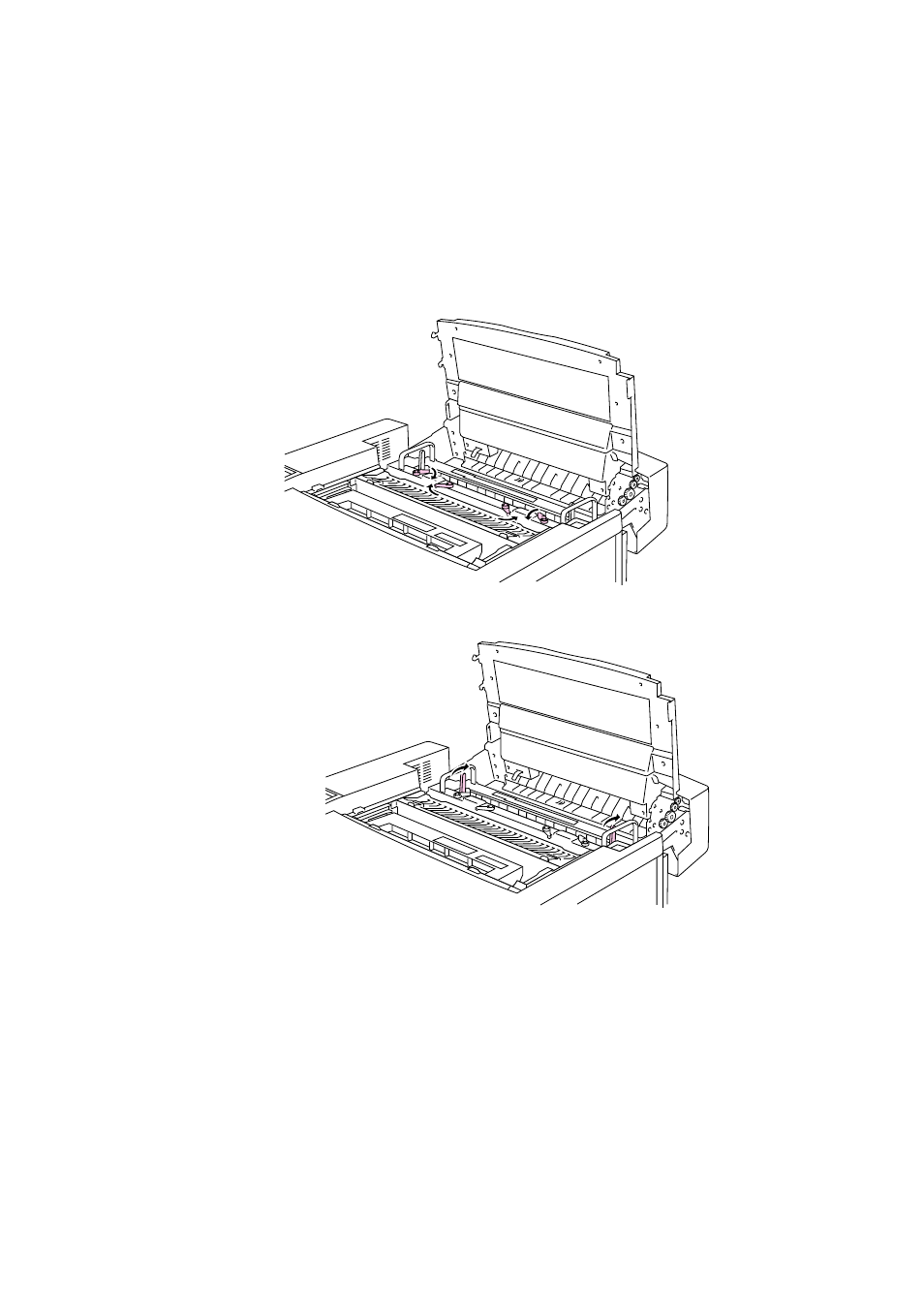

Fig. 2-15 Release the Levers

3. Move the Pressure Release Levers in the Fusing Unit to the SET position.

Fig. 2-16 Set the Levers to the SET position
