USER’S GUIDE
A–14
Network Interface
Network Interface

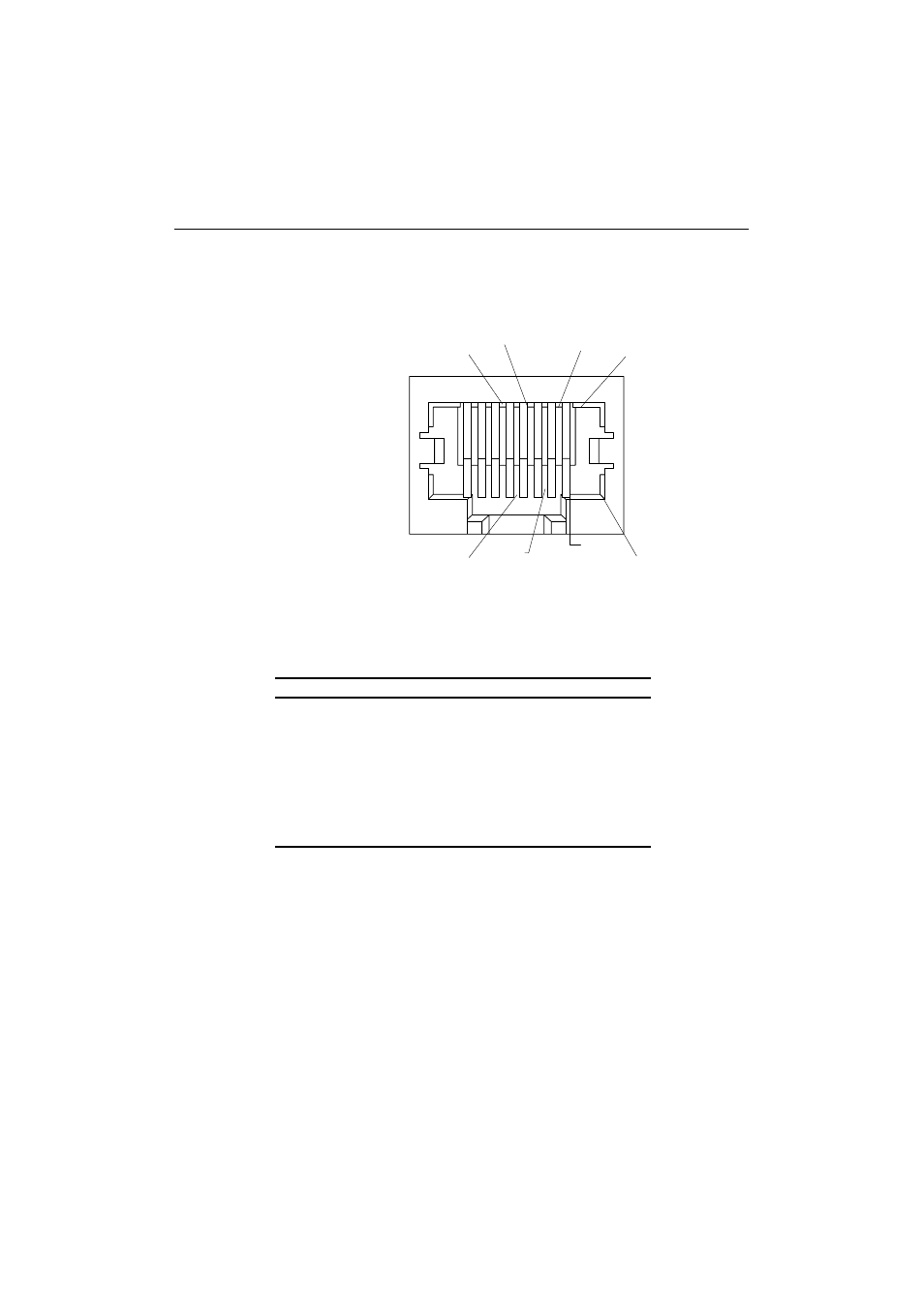

Fig. A-3 10/100Base TX Port
Pin Assignment
RJ45 pin Signal
1 TX+ Transmit Data +
2 TX
−
Transmit Data
−
3 RX+ Receive Data +
4
N.C.
5 N.C.
6 RX
−
Receive Data
−
7 N.C.
8 N.C.
For more information, see the “Network User’s Guide” on the CD-ROM.
1
2
4
3
5
6
7
8
