Brother HL-3400CN Series User Manual
Page 199
USER’S GUIDE
5-42

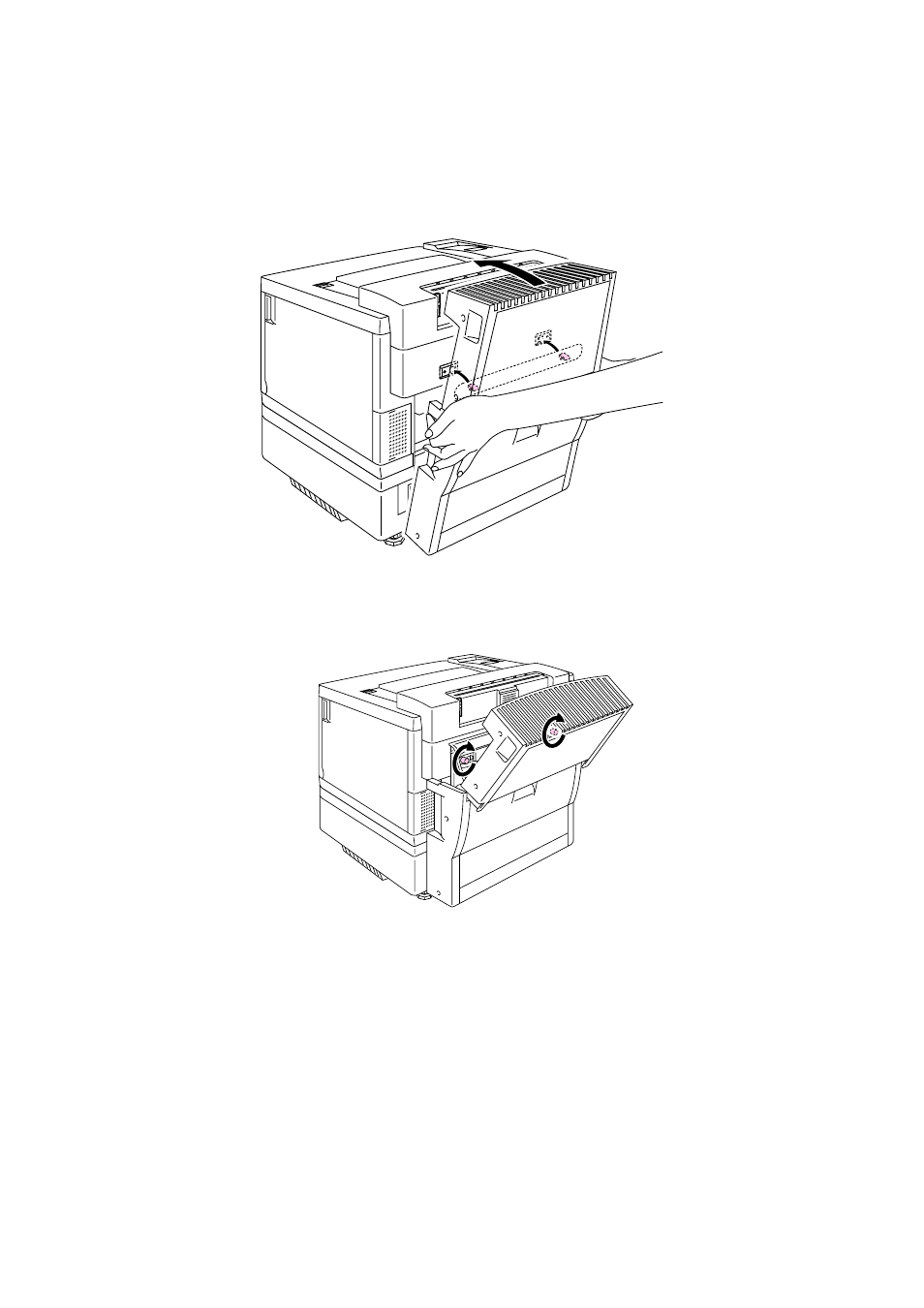

7. Secure the pawl of the Duplex Unit into the rectangular hole in the back of the printer.
Fig.5-52 Secure the Pawl
8. Open the Duplex Cover Top Assembly.
9. Securely connect the Duplex Unit and the Printer with the thumb screws (2 pieces).
Fig. 5-53 Connect the Duplex Unit and the Printer
10. Close the Duplex Cover Top Assembly.
