Using the HDMI Control 13
97
En
E
n

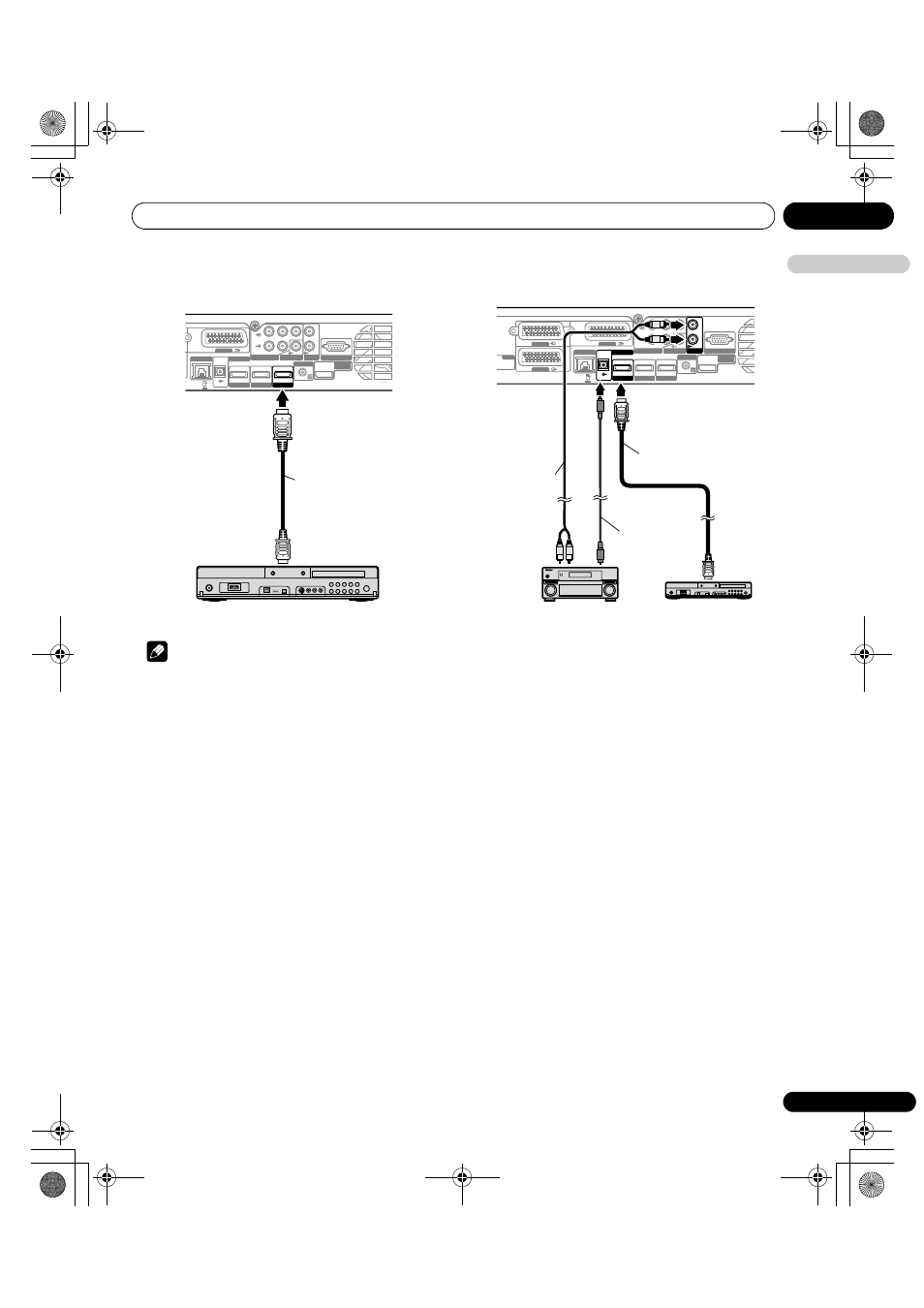

glish Connecting a DVD recorder
Note
• Maximum number of devices that can be connected and
controlled using the remote control unit of the flat screen TV is
as follows: recorder x 2, player x 2 or AV system x 1.
• When connecting an AV system, be sure to place and connect
it between the Media Receiver and recorder or player.
• Do not connect an AV system that does not support the HDMI
Control functions between the Media Receiver and a recorder/
player, otherwise the HDMI Control functions may not operate
properly.
• When connecting an AV system that does not support the HDMI
Control functions and a player/recorder that supports the HDMI
Control functions to the Media Receiver, connect the AV system
to the DIGITAL OUT terminal and the AUDIO OUT terminal on
the Media Receiver using an optical digital cable and a stereo
audio cable, and the recorder/player to the HDMI terminal using
an HDMI compliant cable (see the illustration to the right).
Please note that signals input from the HDMI terminals will not
be output from the DIGITAL OUT terminal.
• The HDMI Control functions may not operate properly if you do
not use an HDMI cable that supports the HDMI Specification.
• After making connections, enter the setting in “Input Setting”
for “HDMI Control Setting”. Be sure that the setting is entered
in each HDMI input terminal to which the device is connected.
• Settings in the connected device(s) are also required to use the
HDMI Control functions. For details, see the operation manual
that came with the connected device(s).
• When a recorder is connected, its power is automatically
switched on as the Media Receiver is turned On to help make
the recording smoother.
• When the image from a BD/DVD player or DVD recorder
connected through an HDMI Control supported AV system is
switched to display on sub screen in the 2-screen or picture-in-
picture mode, the sub screen turns black without displaying any
image.
• For more information on the devices that support the HDMI
Control functions, check the Pioneer Web site (see back cover).
SERVICE ONLY AUDIO OUT SUB WOOFER OUT INPUT 2
L
L R AUDIO
P R
COMPONENT VIDEO
P B Y
R
SYSTEM CABLE CONTROL
LAN (10 / 100)
INPUT 4
HDMI
INPUT 3
HDMI
INPUT 1
DIGITAL OUT
OPTICAL
HDMI OUT
INPUT 2
DVD recorder
HDMI compliant cable
(HDMI cable having the
HDMI mark)
Media Receiver (rear)
SERVICE ONLY
SAT
AUDIO OUT SUB WOOFER OUT INPUT 2
L
L R AUDIO
P R
COMPONENT VIDEO
P B Y
R
SYSTEM CABLE CONTROL
LAN (10 / 100)
INPUT 3
INPUT 1
INPUT 4
HDMI
INPUT 3
HDMI
INPUT 1
DIGITAL OUT
OPTICAL
HDMI HDMI OUT
INPUT 2
Optical digital
cable
Stereo
audio cable
DVD recorder AV amp
Media Receiver (rear)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
