Using with other equipment 12
68
En

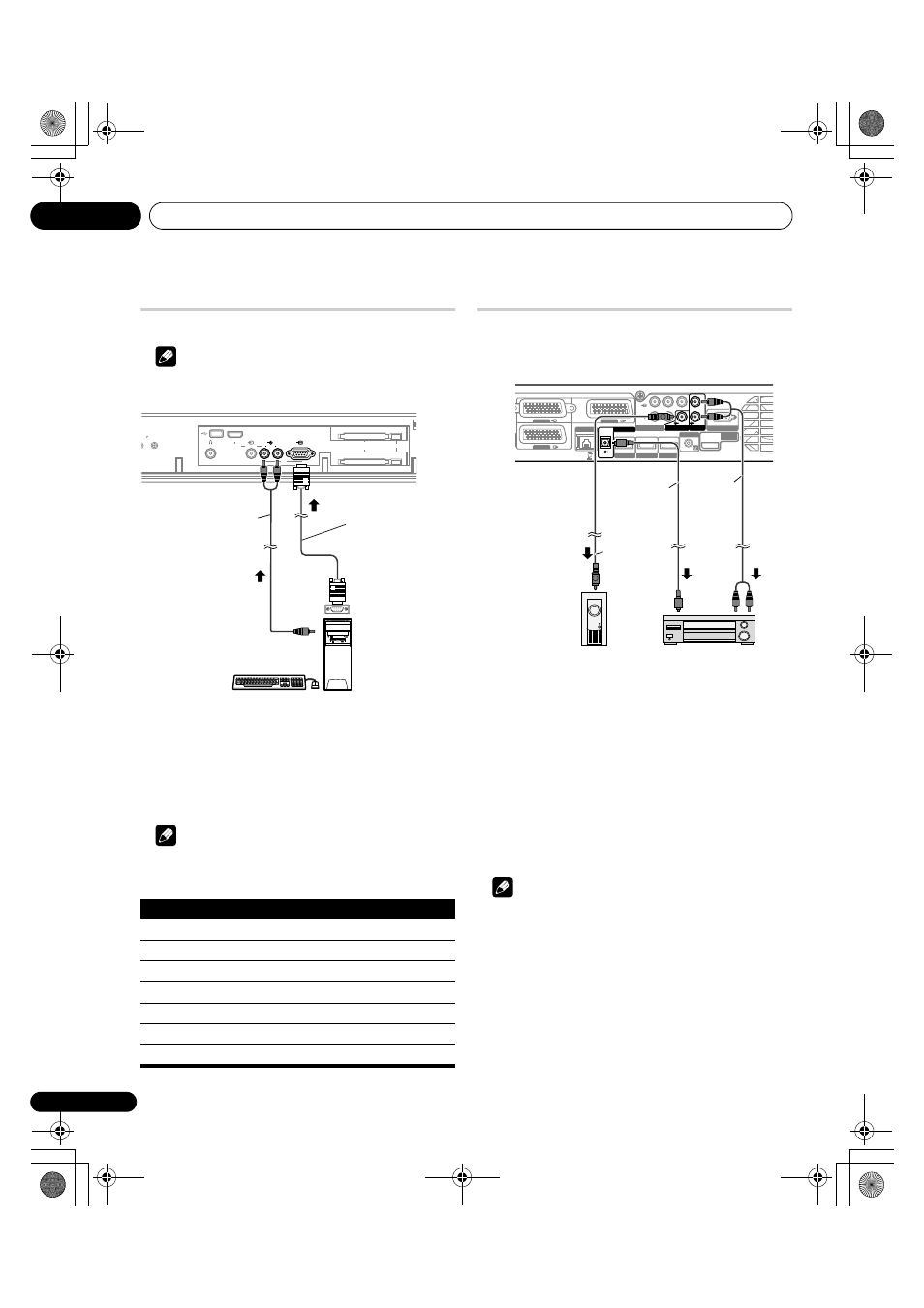

Connecting a personal computer
Use the PC terminals to connect a personal computer.
Note
• The PC input terminals are DDC2B-compatible.
Displaying an image from a personal computer
To watch an image coming from the personal computer, press PC
on the remote control unit or press INPUT on the Media Receiver to
select “PC”.
When connecting to a personal computer, the correct input signal
type is automatically detected. If the personal computer image does
not come in clearly, you may need to use Auto Setup menu. See
page 59.
Note
• The PC terminals cannot be used for audiovisual equipment.
Computer compatibility chart
Connecting an amplifier/AV receiver
You can enjoy more powerful sound by connecting such audio
equipment as an amplifier/AV receiver or subwoofer to the Media
Receiver.
Selecting a digital audio format
Audio signals synchronized with currently displayed images are
output to the AUDIO OUT terminals. However, audio accompanying
the images are output to the SUB WOOFER OUT terminal.
When using the digital audio output terminal (optical), select
settings according to your AV receiver.
1 Press HOME MENU.
2 Select “Setup” ( / then ENTER).
3 Select “System Setup” ( / then ENTER).
4 Select “Digital Audio Output” ( / then ENTER).
Select “Dolby Digital” (default) or “PCM”.
5 Press HOME MENU to exit the menu.
Note
• For details, refer to the operation manual for the audio
equipment to be connected.
• When signals are input from the HDMI terminals, no signals are
output if they are copy guarded.
• While in DTV or SAT mode, no signals are output if they are copy
guarded.
Resolution Frequency
720 x 400 70 Hz
640 x 480 (VGA) 60 Hz
800 x 600 (SVGA) 60 Hz
1280 x 720 60 Hz
1024 x 768 (XGA) 60 Hz
1360 x 768 (Wide-XGA) 60 Hz
1280 x 1024 (SXGA) 60 Hz
CHANNEL
PHONES
USB HDMI
INPUT 5 VIDEO ANALOG RGB L AUDIO R
PC
KRP-M01
COMMON INTERFACE 2 SATELLITE
COMMON INTERFACE 1 TERRESTRIAL  EJECT
Stereo audio cable
Personal computer
Media Receiver (front)
RGB cable
SERVICE ONLY AUDIO OUT SUB WOOFER OUT INPUT 2
L
L R AUDIO
P R
COMPONENT VIDEO
P B Y
R
SYSTEM CABLE CONTROL
LAN (10 / 100)
INPUT 3
INPUT 1
INPUT 4
HDMI
INPUT 3
HDMI
INPUT 1
DIGITAL OUT
OPTICAL
HDMI OUT
INPUT 2
This connection is not
required when
connecting an AV amp
equipped with the
surround function to
a subwoofer.
Stereo
audio
cable
Optical
digital cable
AV receiver Subwoofer
Media Receiver (rear)
AV cable
(commercially
available)
