Using the HDMI Control 13
96
En

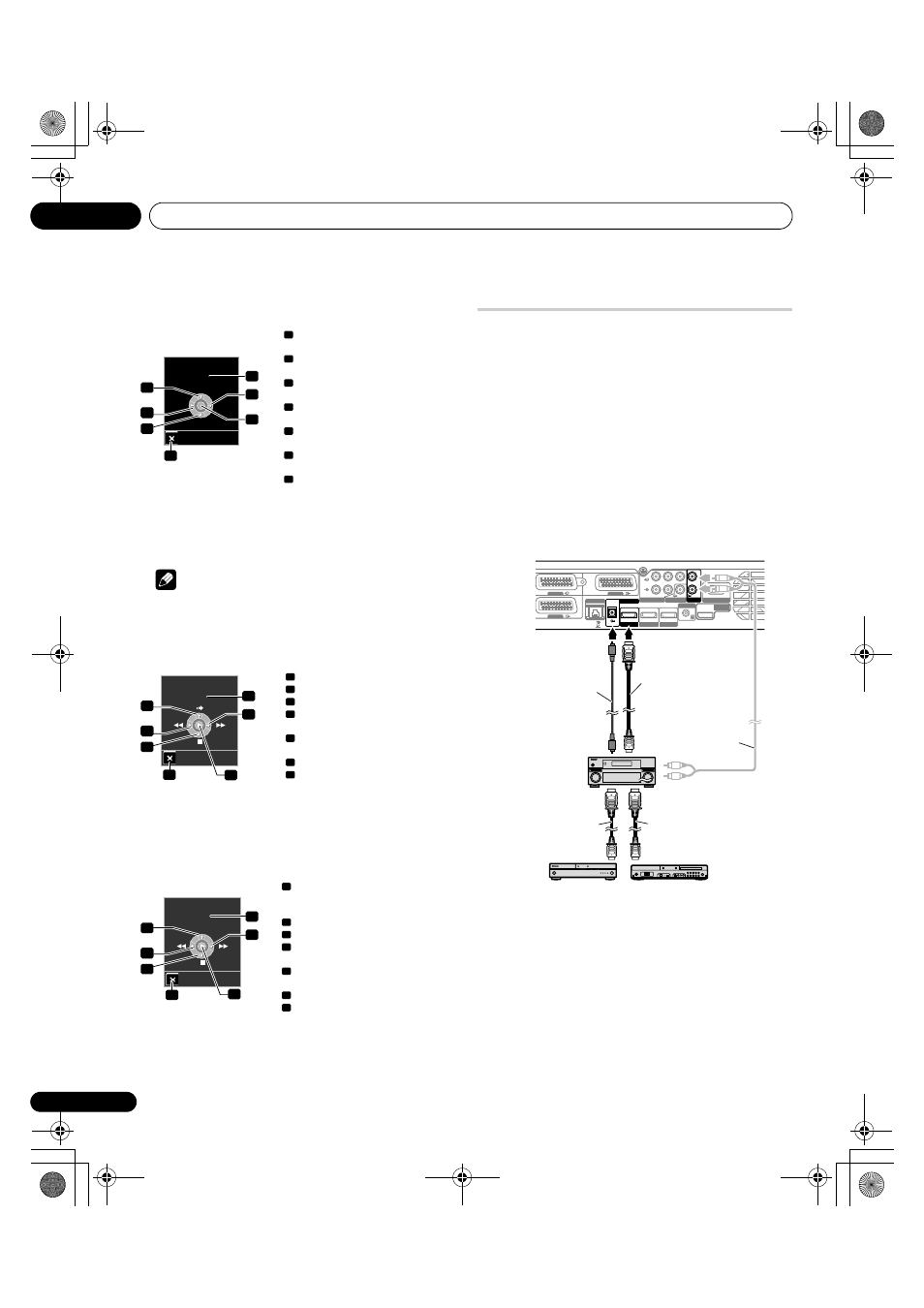

On-screen control panel
For an AV system
Press  or  on the remote control unit of the flat screen TV to
switch the surround mode in order or in reverse order,  or  to
switch the input source in order or in reverse order. Pressing HDMI
CONTROL closes the control panel to return to the HDMI Control
menu.
Note
• You cannot operate the recorder/player when you press  or 
to switch the input source during operation. To resume the
operation, return to the HDMI Control menu and select the
desired function again.
For a recorder
Press  or  on the remote control unit of the flat screen TV to
select fast reverse or fast forward mode,  to skip commercials or
 to stop playback. Pressing ENTER starts playback and HDMI
CONTROL closes the control panel to return to the HDMI Control
menu.
For a player
Press  or  on the remote control unit of the flat screen TV to
select fast reverse or fast forward mode,  to display the DVD disc
menu or Blu-ray disc’s pop-up menu on the player or  to stop
playback. Pressing ENTER starts playback and HDMI CONTROL
closes the control panel to return to the HDMI Control menu.
Making the HDMI Control connections
When you make changes in connections between the Media
Receiver and the device(s) that supports the HDMI Control
functions or settings for the “HDMI Control Setting”, perform the
following procedure:
1
Turn on the Media Receiver and all the connected devices.
2 Confirm that the setting in “Input Setting” for “HDMI Control
Setting” is properly entered according to the connected devices.
Also confirm the HDMI Control related settings in the connected
devices.
3
Switch to the HDMI input terminals to which the devices are
connected to check if audio and video images are properly output
and displayed.
4
Try turning off the Media Receiver, then turn the power back on
to the Media Receiver.
Connecting an AV amp/DVD recorder/BD player
Exit
HDMI Control
****
INPUT+ INPUT-
SURROUND+
SURROUND-
1
4
3
5
7
6
22
Switches the surround mode in
order
Switches the input source in
reverse order
Switches the surround mode in
reverse order
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Switches the input source in
order
Void 1
2
3
4
5
6
7
Exit
HDMI Control
****
1
4
3
5
7
6
22
Skips commercials
Fast reverse
Stops playback
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Fast forward
Starts playback 1
2
3
4
5
6
7
Exit
HDMI Control
****
MENU 1
4
3
5
7
6
22
Displays the DVD disc menu or
Blu-ray disc’s pop-up menu on
the player
Fast reverse
Stops playback
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Fast forward
Starts playback 1
2
3
4
5
6
7
SERVICE ONLY AUDIO OUT SUB WOOFER OUT
L
L R AUDIO
P R
COMPONENT VIDEO
P B Y
R
SYSTEM CABLE CONTROL
LAN (10 / 100)
INPUT 3
INPUT 1
INPUT 4
HDMI
INPUT 3
HDMI
INPUT 1
DIGITAL OUT
OPTICAL
HDMI HDMI OUT
INPUT 2
INPUT 2
Stereo
audio cable
Optical digital cable
AV amp
HDMI compliant cable
(HDMI cable having
the HDMI mark)
BD player DVD recorder
Media Receiver (rear)
HDMI compliant cable
(HDMI cable having
the HDMI mark) HDMI compliant cable
(HDMI cable having the
HDMI mark)
