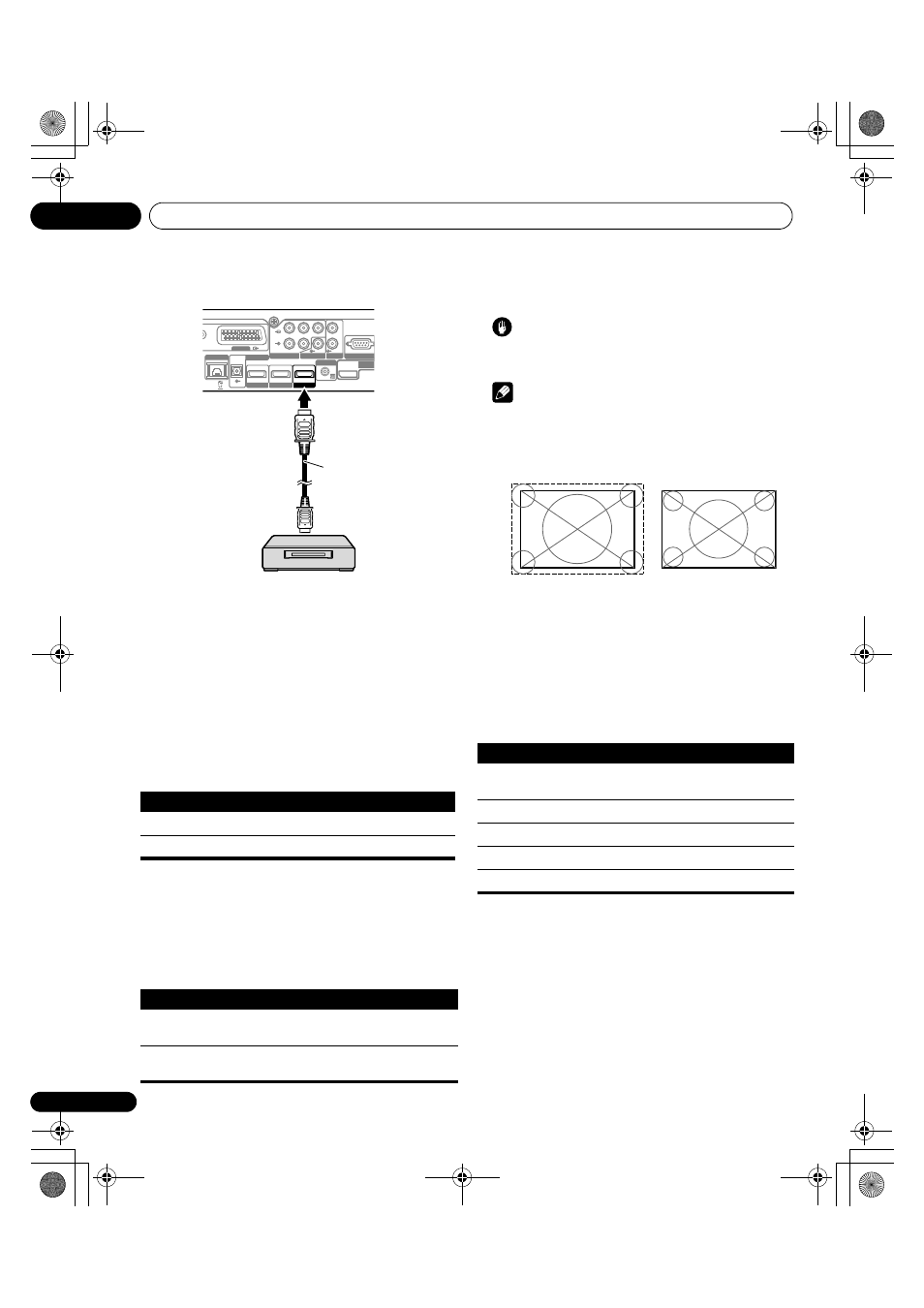

When using the INPUT 4 HDMI terminal:
Activating the HDMI terminal
When you use the INPUT 1 or INPUT 3 HDMI terminal, select the
terminal for the desired input source, then perform the following
procedure to activate the terminal.
1 Press HOME MENU.
2 Select “Setup” ( / then ENTER).
3 Select “Option“ ( / then ENTER).
4 Select “HDMI Input“ ( / then ENTER).
5 Select “Setting“ ( / then ENTER).
6 Select “Enable“ ( / then ENTER).
7 Press HOME MENU to exit the menu.
Specifying the type of input signals
1 Repeat steps 1 to 4 provided for Activating the HDMI terminal.
2 Select “Signal Type” ( / then ENTER).
3 Select “Video” or “PC” ( / then ENTER).
4 Press HOME MENU to exit the menu.
Caution
• Make sure to select “PC” when a PC is connected to the HDMI
input terminal.
Note
• In the “Video” mode, the image is “over-scanned” (enlarged),
and the mode is automatically switched to “PC” when PC
signals are received.
• In the “PC” mode, the image is displayed in full size for optimum
image quality.
Specifying the type of digital video signals
1 Repeat steps 1 to 4 provided for Activating the HDMI terminal.
2 Select “Video“ ( / then ENTER).
3 Select the type of digital video signals ( / then ENTER).
If you select “Auto”, an attempt will be made to identify the type of
digital video signals when digital video signals are received.
4 Press HOME MENU to exit the menu.
Item Description
Disable (default) Deactivates the HDMI terminal
Enable Activates the HDMI terminal
Item Description
Video (default) Select this option except when a PC is
connected
PC Select this option when a PC is connected to
the HDMI input terminal
SERVICE ONLY AUDIO OUT SUB WOOFER OUT INPUT 2
L
L R AUDIO
P R
COMPONENT VIDEO
P B Y
R
SYSTEM CABLE CONTROL
LAN (10 / 100)
INPUT 4
HDMI
INPUT 3
HDMI
INPUT 1
DIGITAL OUT
OPTICAL
HDMI HDMI OUT
INPUT 2
HDMI compliant cable
(HDMI cable having the
HDMI mark)
HDMI device
Media Receiver (rear)
Item Description
Auto (default) Automatically identifies input digital video
signals
Colour-1 Digital Component Video signals (4:2:2) locked
Colour-2 Digital Component Video signals (4:4:4) locked
Colour-3 Digital RGB signals (16 to 235) locked
Colour-4 Digital RGB signals (0 to 255) locked
when “Video” is selected
(“overscan” size screen) when “PC” is selected
(“underscan” size screen)
