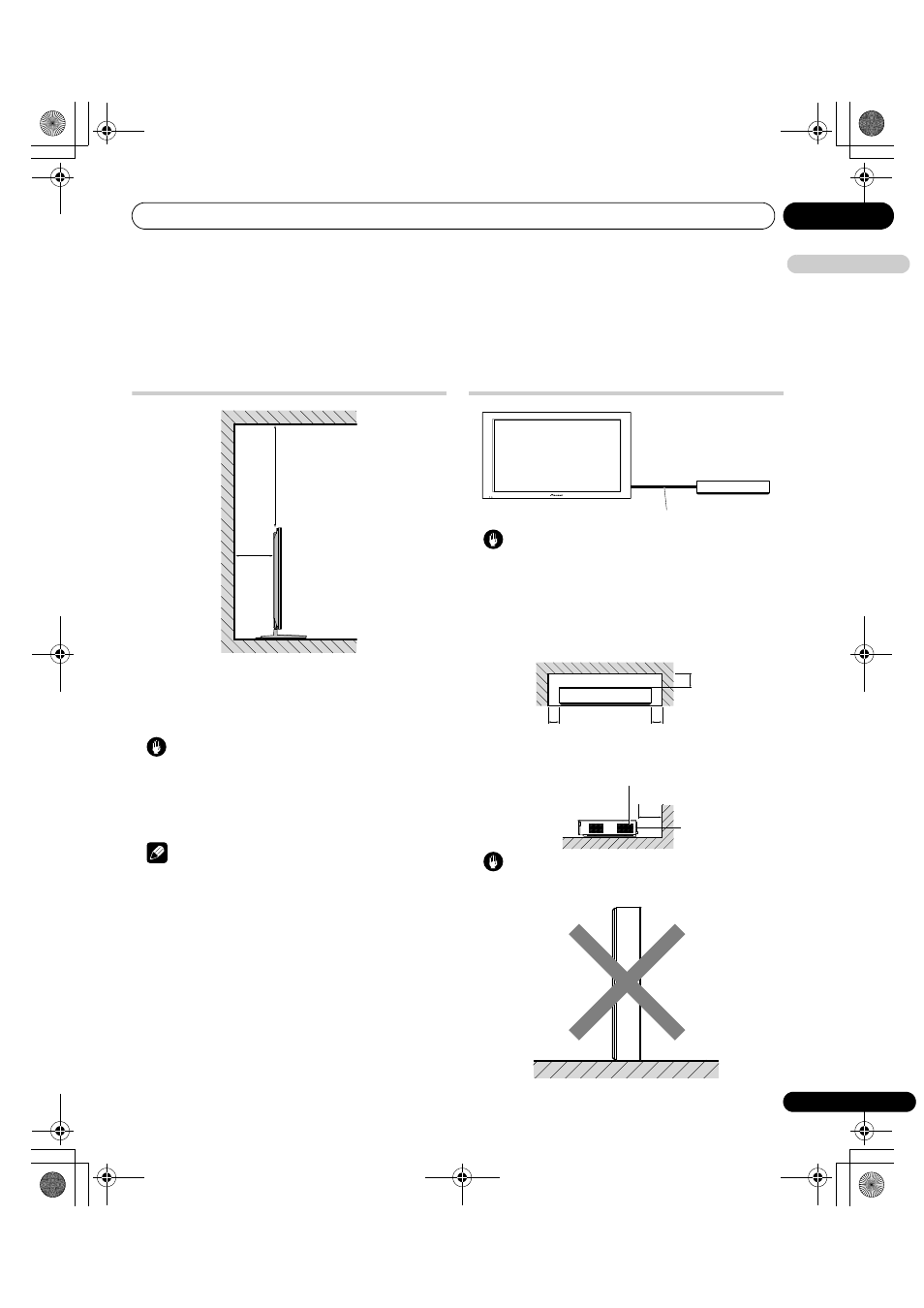

Installing the display
Location
• Avoid direct sunlight. Maintain adequate ventilation.
• The length of the SYSTEM cable used to connect the display and
the Media Receiver is about 3 m.
Caution
• If you do not leave sufficient space above the display, it will not
receive enough ventilation and will not operate properly.
• Pioneer will not be responsible for accident or damage caused
by inadequate installation or stabilization, erroneous operation,
remodeling or natural disasters.
Note
• Allow enough space around the upper and back parts when
installing to ensure adequate ventilation of the rear of the unit.
• Be sure to install the display and Media Receiver in a flat, stable
location.
Using the optional Pioneer stand
For details on installation, refer to the instruction manual supplied
with the stand.
Using the optional Pioneer speakers
For details on installation, refer to the instruction manual supplied
with the speakers.
Installing the Media Receiver
Caution
• Do not use the SYSTEM cable to connect other equipment to the
flat screen TV.
• Do not place a VCR or any other device on the top of the Media
Receiver.
• When installing, allow enough space on the sides and above the
Media Receiver.
• Do not block the side ventilation openings or the rear exhaust
openings of the Media Receiver.
Caution
• Placing the Media Receiver alone in the vertical position can
result in product damage and malfunction.
Over 50 cm
Over
10 cm
SYSTEM cable
Display
Media Receiver
Over 5 cm
Over 5 cm Over 5 cm
Over 10 cm
Exhaust opening
Ventilation opening
