03

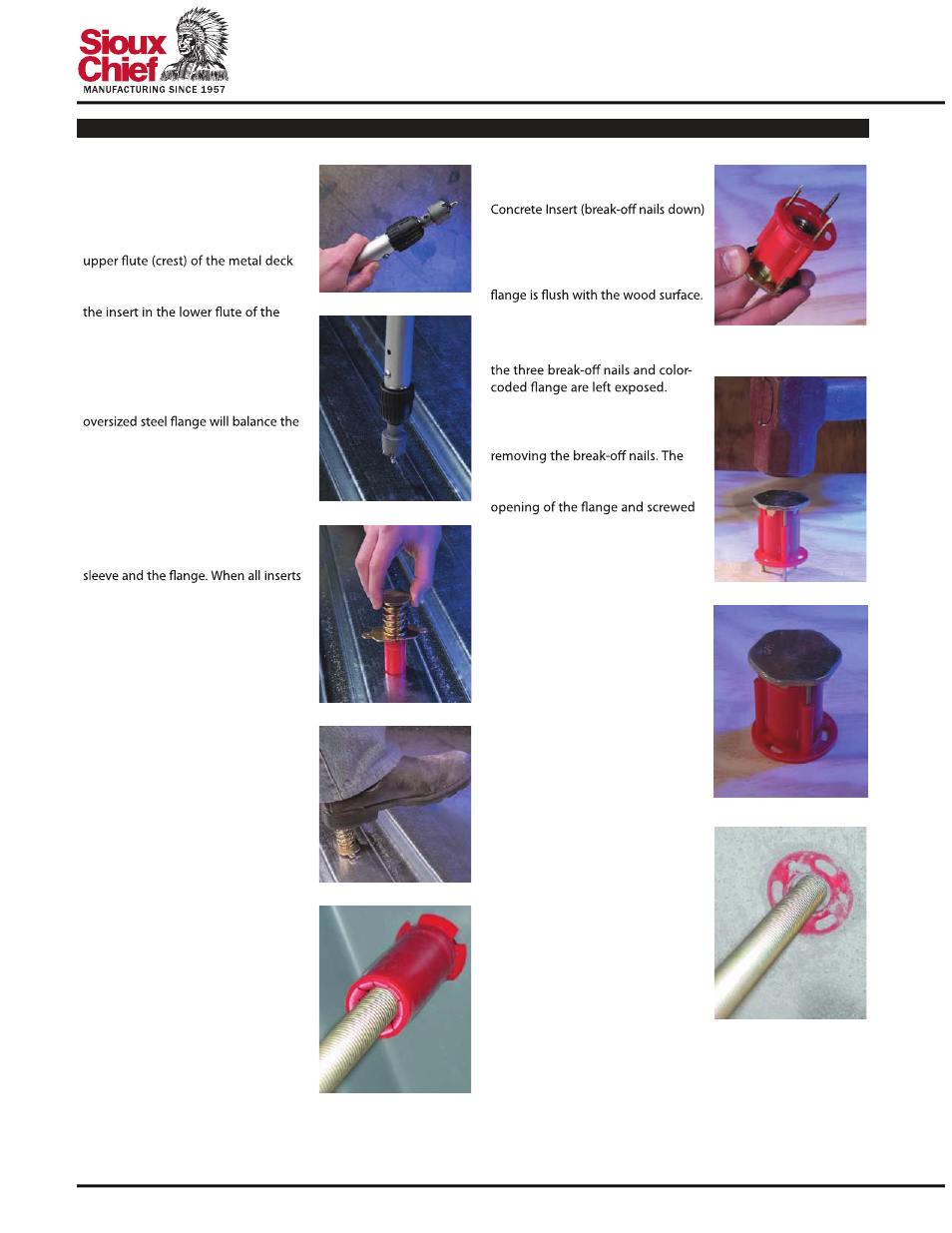

Prior to pouring concrete, use the
recommended diameter metal hole saw
to drill a hole through the metal deck
at the location the insert is needed.
Typically, inserts are installed in the
for easier access during installation.
However, it is also acceptable to install
metal deck.
From the topside of the metal deck,
place the Metal Anchor Insert's
color-coded, plastic protective sleeve
through the pre-drilled hole. The
spring-loaded impact plate and cause
it to stand upright. Either step on the
anchor with your foot or using a hand
held hammer, strike the head of the
anchor with enough force to cause the
tapered portion of the protective plastic
sleeve to push through the metal deck,
clamping the deck surface between the
are installed, concrete pouring may
commence. The clamping pressure
generated by the spring keeps the
sleeve perpendicular to the deck
surface during the pour.
Either before or after the concrete
has been placed, tap the appropriate
diameter steel threaded rod or
threaded bolt through the opening
at the end of the plastic sleeve and
screw into the internally threaded
insert. Minimum thread engagement
should be one anchor diameter.
Concrete should be allowed
to properly cure and achieve
its design compressive strength
before loading the threaded rod
with the intended assembly.
For safety purposes, it is best to wait
until the insert is ready to be put in
service before screwing the steel
threaded rod into place.
Prior to pouring concrete over the
wood form, place the Deck Anchor
on the surface of the wood form at
the desired location. Strike the impact
plate of the insert with a hand held
hammer, until the plastic color-coded
When all inserts are installed, concrete
pouring may commence.
After the wood forms are removed,
Carefully remove any unbroken
nails by swiping with a hammer.
Eye protection should be worn when
appropriate diameter steel rod or
threaded bolt can be inserted into the
into the internally threaded insert.
Minimum thread engagement
should be one anchor diameter.
Concrete should be allowed to
properly cure and achieve its design
compressive strength before loading
the rod or threaded bolt with the
intended assembly.
For safety purposes, it is best to wait
until the insert is ready to be put in
service before screwing the steel
threaded rod into place.
Wood Deck Anchor Metal Deck Anchor
Chuck Carbide Hole Saw
Drill Deck Holes
Push Anchor into Place
Set by Stepping on Anchor
Pour Concrete.
Then Install Rod
Set Wood Deck Anchor
into Place
Hammer in Insert
Pour Concrete
Install Rod
SPECIFICATION & DESIGN MANUAL
INSTALLATION GUIDELINES
