Nugget 200 Spool Valves
Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-10-5
Seal Compatibility
Nugget 200 seals are compatible with the following
lubricants:
DC BR-2+ grease (Dow Corning)
DC 44 grease (Dow Corning)
Nondetergent mineral based oil such as Mobil DTE
light oil
Note: Nugget 200 seals are not compatible with WD-
40 or commonly used de-icer fluids. Consult factory
to verify compatibility of lubricants or fluids not listed
above.
Solenoid Operating Specifications
Inlet Pressure Range for Solenoid Operated Valves:
With Internal Pilot Supply: 15 to 150 psig*
(1.03 to 10.3 bar)
With External Pilot Supply: 10" Hg vacuum to 150 psig
(10.3 bar)
Temperature Range (Ambient/Inlet):
Solenoid Operated Valves: -20° to 120°F** (-29° to 50°C)
Low Wattage Solenoids: -20° to 155°F** (-29° to 68°C)
Operator Pilot Pressures:
Maximum Pilot Pressure: 150 psig (10.3 bar)
Minimum Pilot Pressure at 150 psig (10.3 bar) main valve inlet pressures
are given in the following table:
* Minimum Inlet Pressure is dependent on the type of operator
and return used. See Operator Pilot Pressure specifications in
Operating Specifications.
** With the dew point of supply air less than air temperature below
35°F (2°C)
Minimum Pilot Pressures
Spring
Operator Return Nondetent Detented Centered
psig (bar) psig (bar) psig (bar)
Solenoid Solenoid 15 (1.0) 25 (1.7) 45 (3.1)
Solenoid Spring 35 (2.4) – –
Average Flow Factors in Cv‡ (l/min)
Flow Path
Port Port
Port 1 to 2 2 to 3
Valve Size 1 to 4 4 to 5
3-Port, Inline 1/4" 1.6 (1700) 1.7 (1800)
3/8" 1.6 (1700) 1.7 (1800)
5-Port, Inline 1/4" 1.6 (1700) 1.7 (1800)
3/8" 1.6 (1700) 1.7 (1800)
1/2" 1.6 (1700) 1.7 (1800)
5-Port, Stacking 1/4" 1.8 (1900) 1.4 (1450)
3/8" 1.8 (1900) 1.4 (1450)
‡ Flow Rating determined in accordance with NFPA/T3.21.3, Pneumatic
fluid power – Flow test procedure and reporting method – For fixed orifice
components.
Warning
When a solenoid operator is used as a return for a
manual or mechanical operator, the pilot pressure
applied to the return operator must not exceed 40
psig (2.8 bar). Pilot pressures greater than 40 psig
for a solenoid or air return will cause structural
damage to the manual or mechanical operator and
can also result in injury to the user. If the available
pilot pressure exceeds 40 psig, an external pilot

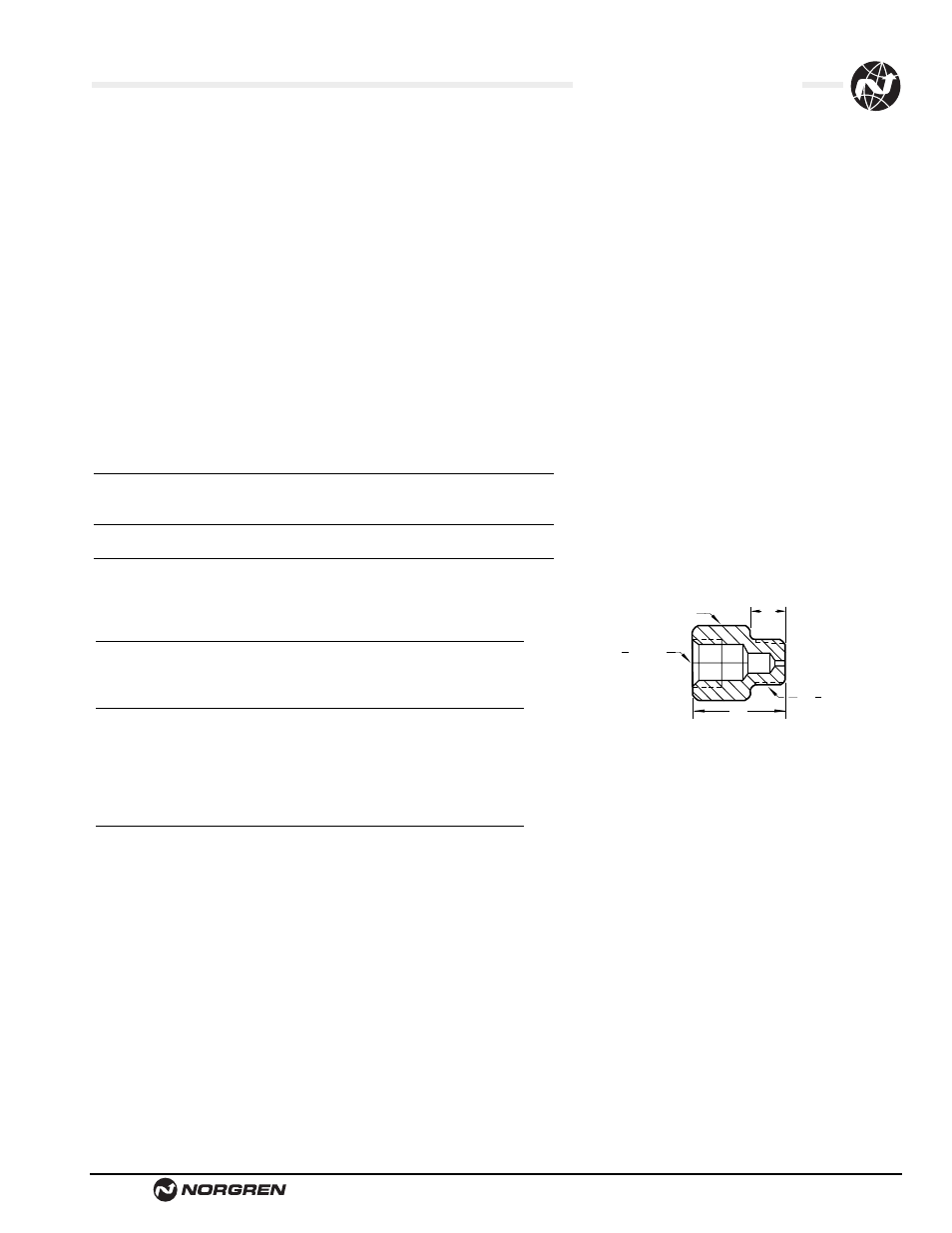

supply only must be used and a restrictor, part
number 54872-02, must be installed in the pilot
port of the return operator to reduce the return
force to an acceptable level. Pilot pressure to the
restrictor must not exceed 150 psig (10.3 bar).
.81
(21)
1/8 27 PTF
.33
(8) 9/16" HEX
1/8 27 PTF
54872 - 02
Order Number
