Nugget 200 Spool Valves
•
Reduces plumbing and installation time.
•
Lightweight aluminum construction.
•
3/4" PTF common inlet and exhaust ports.
•
For use with most Nugget 200 1/4" and 3/8"
inline valves.
•
Available in 2 to 10 station lengths.

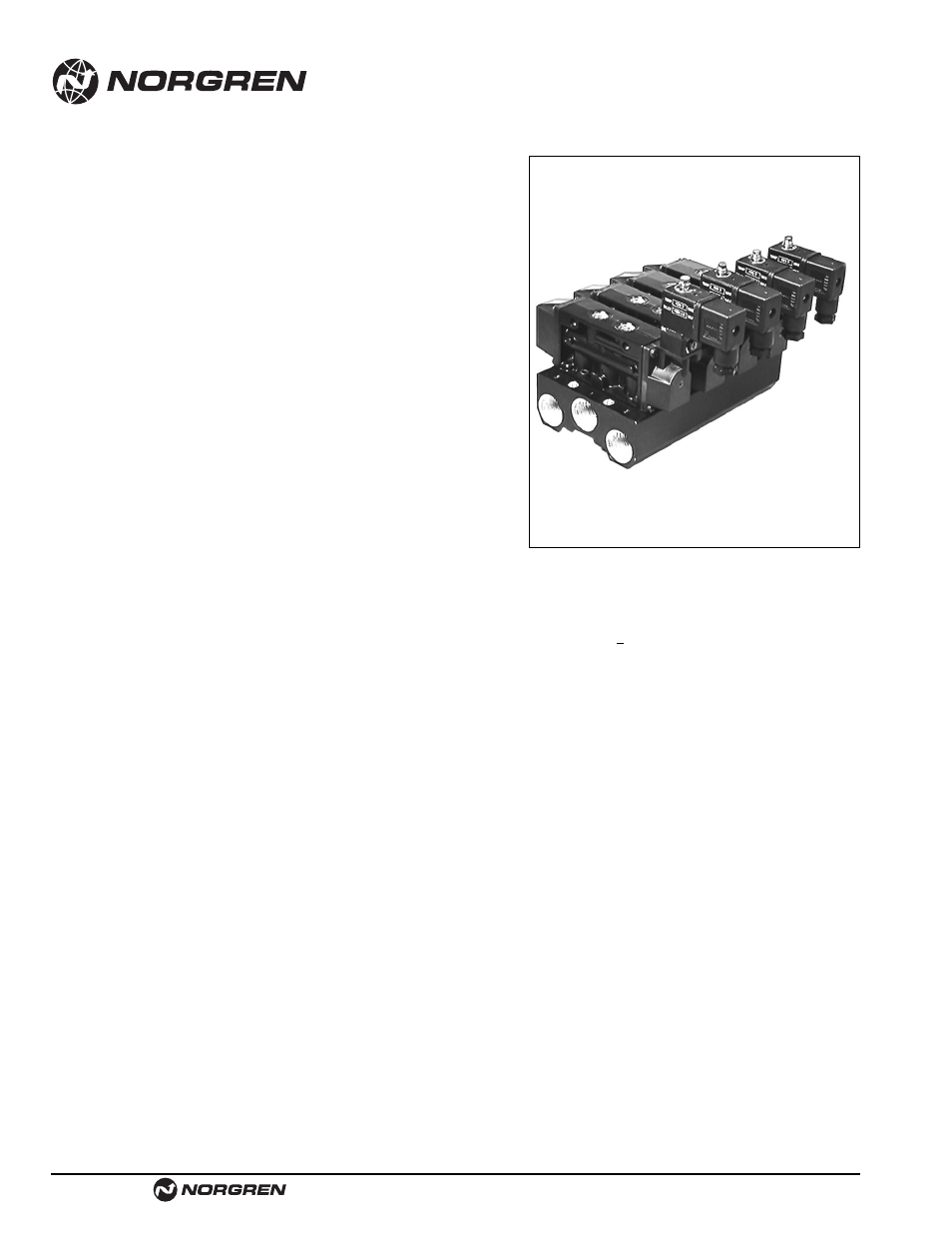

Fixed Length Manifold
for 1/4" and 3/8" Inline Valves
Technical Data
Fluid: Compressed air
Maximum Pressure: See valve specifications
Operating Pressure: See valve specifications
Port Size: 3/4" PTF Inlet and Exhaust
Mounting Holes: 0.28" (7 mm) Diameter
Materials:
Manifold – Aluminum
Seals – Nitrile
Ordering Example
To order valves mounted to a fixed length manifold please
follow these steps:
1.Order only 1/4" and 3/8" inline bodies ending in 2
(i.e. K71DA02)*
2.Note the manifold is to be assembled.
3.Note positions of various valving.
Example:
One four station Nugget 200 fixed length manifold
assembly consisting of:
Position 1:
(1) K71DA02 - KY6 - KY6 (Dbl Sol Valve)
Positions 2 - 4:
(3) K71DA02 - KS6 - KY6 (Single Solenoid Valve)
(1) 13249-62 (Four Station Manifold)
(4) 99-051-530 (Assembly Charge)
* Note standard K71DA00 and K71EA00 bodies cannot be
mounted to fixed length manifold.
Blanking Plate Kit: 54588-50
