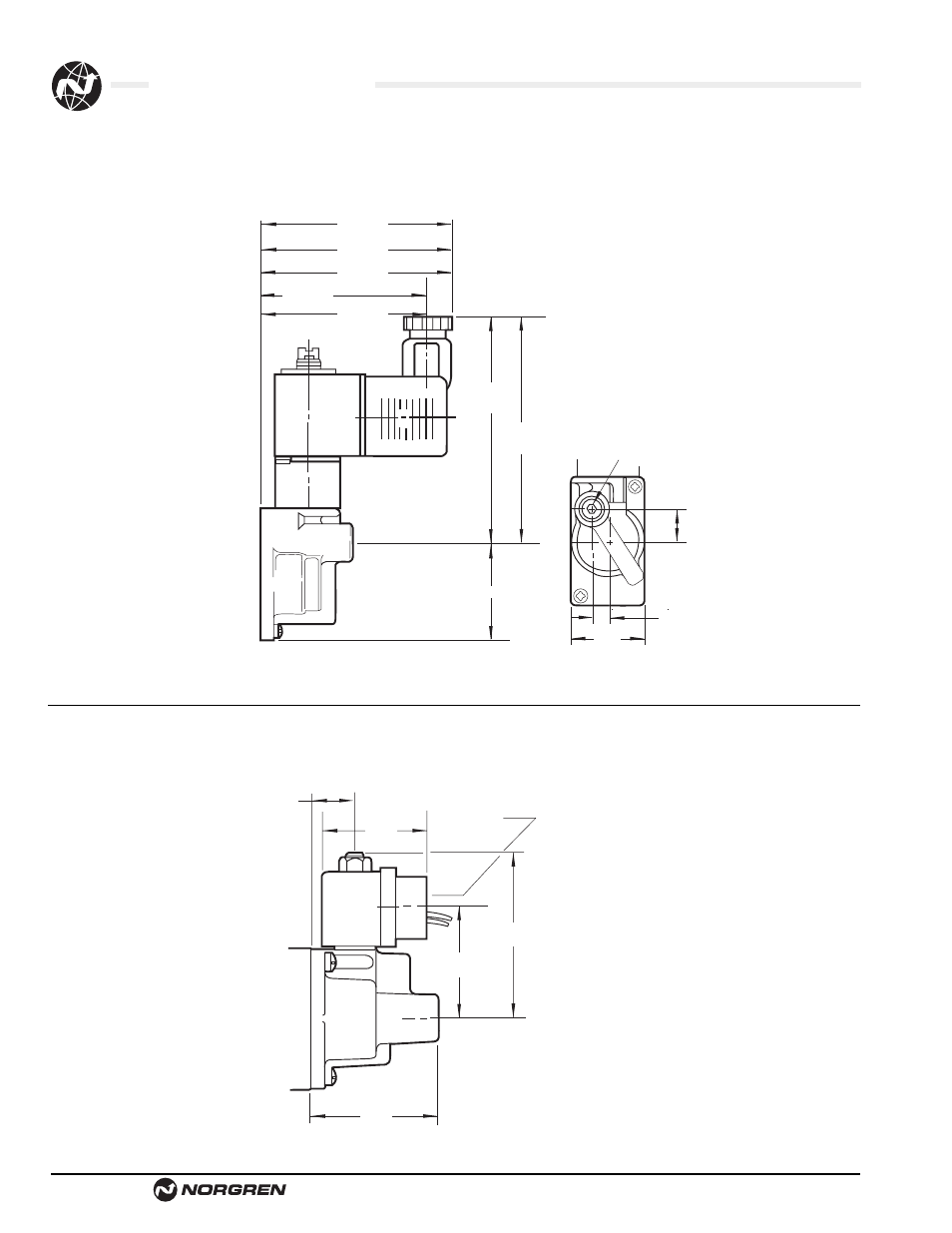

Nugget 200 Spool Valves

All Dimensions in Inches (mm)

VAL-10-14

Littleton, CO USA

Phone: 303-794-2611

www.norgren.com

1.95

(50)

KD Series (Integral Conduit)

2.64

(67)

1.75

(45)

1/2-14

NPT

1.87

(48)

.70

(17)

K2x/K3x
2.99 (76)

KUx/KVx

3.67 (93)

1.63 (41)

K2x/K3x
2.99 (76)

KUx/KVx

2.87 (73)

K4x/K5x
2.63 (67)

KUx/KVx
K2x/K3x
2.52 (64)

K4x/K5x
2.35 (60)

.55

(17.0)

.29

(7.4)

1.25

(31.8)

External Pilot Port
1/8 PTF or G 1/8 ISO

KUx/KVx Series (cable grip)
K2x/K3x Series (conduit)
K4x/K5x Series (molded cord)

KD Series (integral conduit)
