Nugget 200 Spool Valves
VAL-10-2 Littleton, CO USA Phone: 303-794-2611 www.norgren.com
Norgren Nugget 200 valves feature a lightweight, one-piece
aluminum spool and nitrile seal assembly. Shifting forces are
minimized because of the low inertial spool made from high
strength anodized aluminum. Highly durable low friction lip seals
are designed to operate with lubricated or nonlubricated air.
Rugged Solenoid, Air, Manual, or Mechanical Operators
Nugget 200's one hundred and twelve different operators are
designed to last for millions of cycles. Bodies and operators are
made of precision machined, cast aluminum, zinc, PPA, or acetal.
High Flow
An inline Cv of 1.6 provides exceptionally high flow for its compact
size. This makes the Nugget 200 valve appropriate for a wide
range of applications, from machine control systems to air line
control.
Segmented Latch Type Detent
The spool is held securely in place by a unique segmented detent
which engages a lip on the piston.
Shock Absorbent Bumpers
Valve life is extended because of substantial bumpers which
absorb the shock and vibration of the rapidly shifting spool and
piston.
Port and Operator Identification
Each of the ports is identified by a permanent number adjacent to
the port on both the body and end plates. In addition, on inline
valves, a two-digit number at each end of the body indicates the
ports connected when the operator at that end is actuated.
A Wide Range of Valve Accessories
Norgren offers a wide range of accessories for use with the
Nugget 200 valve, including valve body cover plates, mufflers,
intermediate supply exhaust block, isolating plugs, solenoid
exhaust filter nut and many more. These accessories allow cost-
efficient customizing for your specific application.
Four Mounting Styles
Inline Valves mount directly to the air line
and are available with the following
features:
● 1/4", 3/8", or 1/2" PTF or ISO G ports.
● 3-port/2-position, 5-port/2-position, or 5-
port/3-position configurations. The 3-port/2-
position configuration is not available with
1/2" ports.
Stacking Valve Assemblies are two or
more valves manifolded together with tie
rods and end plates. They are available with
either a common inlet port, independent
exhaust ports, or with common inlet and
exhaust ports located in the end plates.
Features include:
● 3/8" ports in the end plate. 1/4" or 3/8"
cylinder ports in valve body.
● 5-port/2-position or 5-port/3-position
configurations.
Stacking Valve Assemblies with Junction
Box feature a plug-in solenoid operator
which allows the valve to be serviced
without disturbing the electrical wires. The
solenoid plugs into a terminal block in the
junction box, with a gasket to prevent entry
of dust or moisture. They are available only
in the common inlet and exhaust ports
configuration. Other features are the same
as listed above for Stacking Valve
Assemblies.
All stacking valves mount on
approximately 1-1/4" centers reducing
installation space requirements.
Fixed Length Manifolds are available for
most Nugget 200 1/4" and 3/8" inline
valves. The fixed length manifold reduces
plumbing and installation time. The
lightweight aluminum construction uses 3/4"
PTF common inlet and exhaust ports.
These manifolds are available in 2 to 10
station lengths.
Durable Finish
External surfaces are protected with an oven
cured, epoxy resin paint which provides
excellent corrosion protection and chip
resistance.

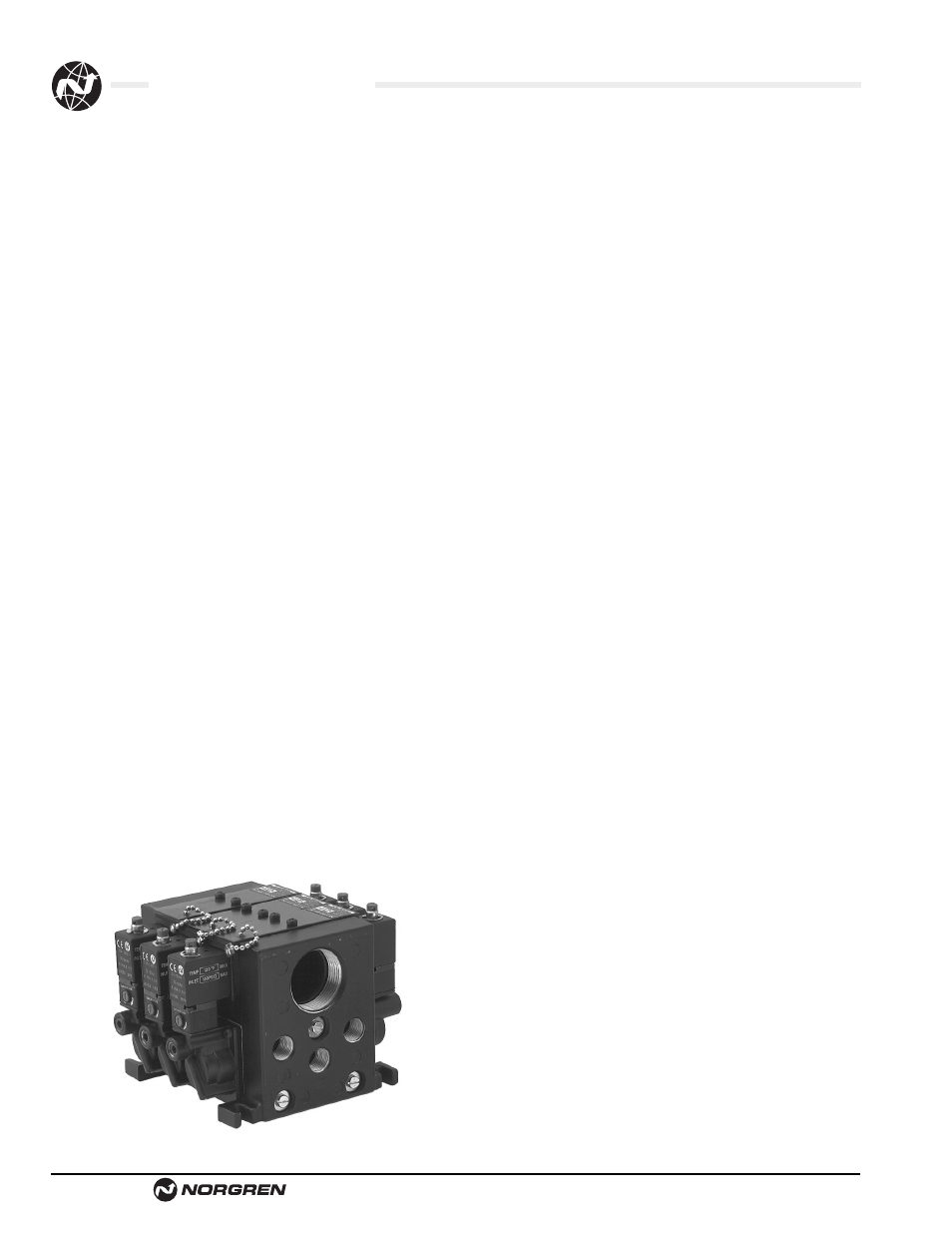

Stacking Valve with Junction Box
