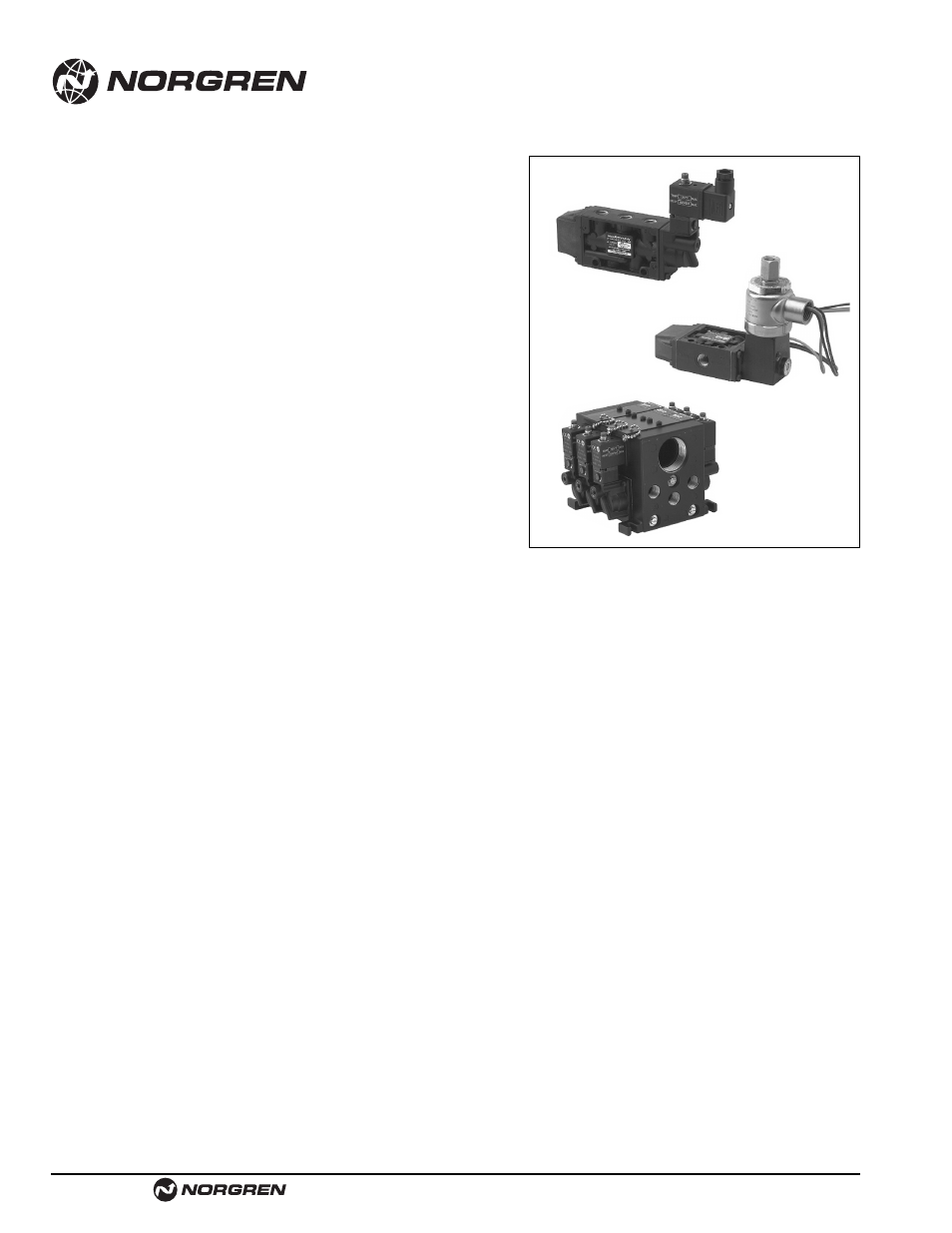

Nugget 200 Spool Valves
● Long lasting spool design
● High flow compact valves
● Four mounting styles: inline, stacking valve
assemblies, stacking valve assemblies with
junction box, and fixed length manifold.
● Wide range of operators and voltages available
● Three functional types: available in 3/2, 5/2, and
5/3 configurations
1/4", 3/8", and 1/2" Solenoid Pilot Actuated
3/2, 5/2, & 5/3 Inline and Stacking Valves
Technical Data
Medium:
Filtered and lubricated or non-lubricated compressed air or vacuum.
Operation:
Spool valve solenoid pilot actuated.
Mounting:
Stacking – through holes on manifold base.
Inline – through holes in valve body.
Port Size:
PTF – 1/4", 3/8", 1/2"
ISO G – 1/4", 3/8" .
Operating Pressure:
Maximum 150 psig (10.3 bar). For details see overleaf.
Operating Temperature:
-20° to 120°F (-29° to 50°C)
Consult Technical Service for use below 36°F (2°C).
Materials:
Body: Aluminum
Spool: Anodized aluminum
Solenoid Operator Base: plastic
Plunger and spring: Stainless steel
Elastomers: Nitrile and special nitrile-based low-friction elastomers.
Note: See Seal Compatibility p. VAL-10-5.
Ordering Information
To order standard Nugget 200 valves with coils,
quote model number from tables overleaf, e.g. order:
K71DA00-K36-KV21W2 for a 5-port/2-position,
single Solenoid Pilot Operated, Spring Return model
with an internal pilot supply, fitted with a 24 VDC
standard wattage coil, and rotatable cable grip
connector and locking override.
