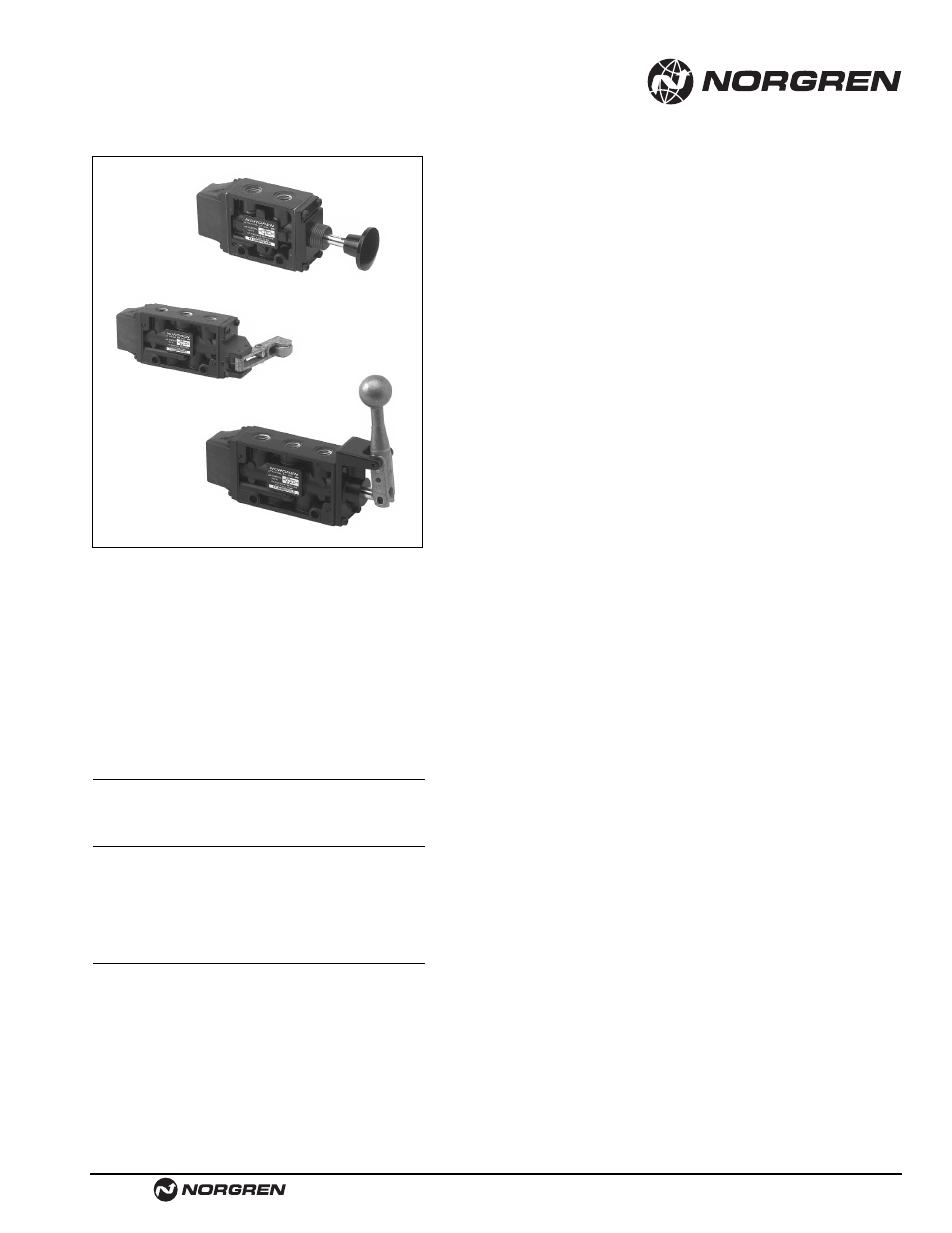

Norgren 200 Series Nugget Spool Valves - Manual (Page 23)

Littleton, CO USA Phone: 303-794-2611 www.norgren.com VAL-10-23
● Long lasting spool design
● High flow compact valves
● Wide range of Manual and Mechanical
Operators available
● Three functional types available in 3/2, 5/2, and
5/3 configurations
1/4", 3/8", or 1/2" Ports, Manual and Mechanical
Actuated 3/2, 5/2, & 5/3 Inline and Stacking Valves
Technical Data
Medium:
Filtered and lubricated or non-lubricated compressed air or
vacuum.
Operation:
Spool valve air pilot actuated.
Mounting:
Stacking – through holes on manifold base.
Inline – through holes in valve body.
Port Size:
1/4", 3/8", or 1/2" PTF, or 1/4", or 3/8" ISO-G
Operating Pressure:
Maximum 150 psig (10.3 bar). For details see overleaf.
Operating Temperature:
-20°F to 160°F (-29°C to 71°C)
Consult Technical Service for use below 36°F (2°C).
Materials:
Body: Aluminum
Spool: Anodized aluminum
Elastomers: Nitrile and special nitrile-based low-friction
elastomers.
Ordering Information
To order standard Nugget 200 manual/
mechanical operated valves, quote model
number from tables overleaf, e.g. order:
K71DA00-KS1-KK0 for a 5-port/2-position,
single Manually Operated black knob, Spring
Return (nondetented) model.
Average Flow Factors in Cv‡ (l/min)
Flow Path
Port Port
Port 1 to 2 2 to 3
Valve Size 1 to 4 4 to 5
3-Port, Inline 1/4" 1.6 (1700) 1.7 (1800)
3/8" 1.6 (1700) 1.7 (1800)
5-Port, Inline 1/4" 1.6 (1700) 1.7 (1800)
3/8" 1.6 (1700) 1.7 (1800)
1/2" 1.6 (1700) 1.7 (1800)
5-Port, Stacking 1/4" 1.8 (1900) 1.4 (1450)
3/8" 1.8 (1900) 1.4 (1450)
‡ Flow Rating determined in accordance with
NFPA/T3.21.3, Pneumatic fluid power – Flow test
procedure and reporting method – For fixed orifice
components.
