56 DS578F3
CS8416
19.PACKAGE DIMENSIONS
INCHES MILLIMETERS
DIM MIN NOM MAX MIN NOM MAX
A 0.093 0.098 0.104 2.35 2.50 2.65
A1 0.004 0.008 0.012 0.10 0.20 0.30
b 0.013 0.017 0.020 0.33 0.42 0.51
C 0.009 0.011 0.013 0.23 0.28 0.32
D 0.697 0.705 0.713 17.70 17.90 18.10
E 0.291 0.295 0.299 7.40 7.50 7.60
e 0.040 0.050 0.060 1.02 1.27 1.52
H 0.394 0.407 0.419 10.00 10.34 10.65
L 0.016 0.026 0.050 0.40 0.65 1.27
∝ 0° 4° 8° 0° 4° 8°
JEDEC #: MS-013
Controlling Dimension is Millimeters

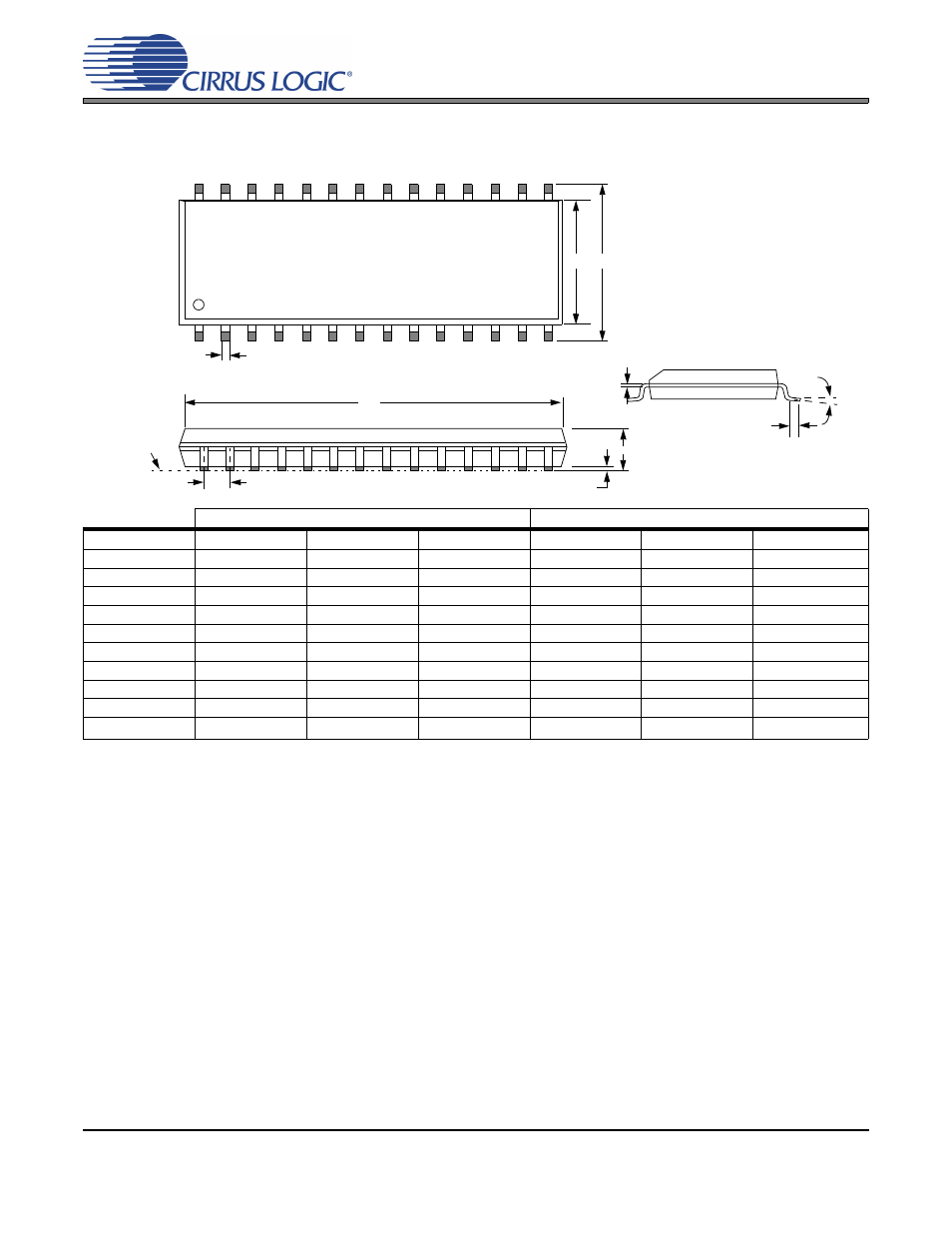

28L SOIC (300 MIL BODY) PACKAGE DRAWING
D
H E
b
A1
A
c
L
∝
SEATING
PLANE
1
e
