16

DS578F3

CS8416

3. PIN DESCRIPTION - HARDWARE MODE

3.1

TSSOP Pin Description

Pin Name

Pin #

Pin Description

VA

6

Analog Power (Input) - Analog power supply. Nominally +3.3 V. This supply should have as little
noise as possible since noise on this pin will directly affect the jitter performance of the recovered
clock

VD

23

Digital Power (Input) – Digital core power supply. Nominally +3.3 V

VL

21

Logic Power (Input) – Input/Output power supply. Nominally +3.3 V or +5.0 V

AGND

7

Analog Ground (Input) - Ground for the analog circuitry in the chip. AGND and DGND should be
connected to a common ground area under the chip.

DGND

22

Digital & I/O Ground (Input) - Ground for the I/O and core logic. AGND and DGND should be con-
nected to a common ground area under the chip.

RST

9

Reset (Input) - When RST is low, the CS8416 enters a low power mode and all internal states are
reset. On initial power up, RST must be held low until the power supply is stable, and all input clocks
are stable in frequency and phase.

FILT

8

PLL Loop Filter (Output) - An RC network should be connected between this pin and analog
ground.
For minimum PLL jitter, return the ground end of the filter network directly to AGND. See

“PLL Filter”

on page 53

for more information on the PLL and the external components.

RXP0
RXP1
RXP2
RXP3

4
3
2
1

Positive AES3/SPDIF Input (Input) - Single-ended or differential receiver inputs carrying AES3 or
S/PDIF encoded digital data. The RXP[3:0] inputs comprise the 4:2 S/PDIF Input Multiplexer. The
select line control is accessed using the RXPSEL[1:0] pins. Unused multiplexer inputs should be left
floating or tied to AGND. See

“External AES3/SPDIF/IEC60958 Receiver Components” on page 49

for recommended input circuits.

RXN

5

Negative AES3/SPDIF Input (Input) - Single-ended or differential receiver input carrying AES3 or
S/PDIF encoded digital data. Used along with RXP[3:0] to form an AES3 differential input. In single-
ended operation this should be AC coupled to ground through a capacitor. See

“External

AES3/SPDIF/IEC60958 Receiver Components” on page 49

for recommended input circuits.

RXP3

OLRCK

RXP2

OSCLK

RXP1

SDOUT

RXP0

OMCK

RXN

RMCK

VA

VD

AGND

DGND

FILT

VL

RST

TX

RXSEL1

C

RXSEL0

U

TXSEL1

RCBL

TXSEL0

96KHZ

NV / RERR

AUDIO

1
2
3
4
5
6
7
8

21

22

23

24

25

26

27

28

9
10
11
12

17

18

19

20

13
14

15

16

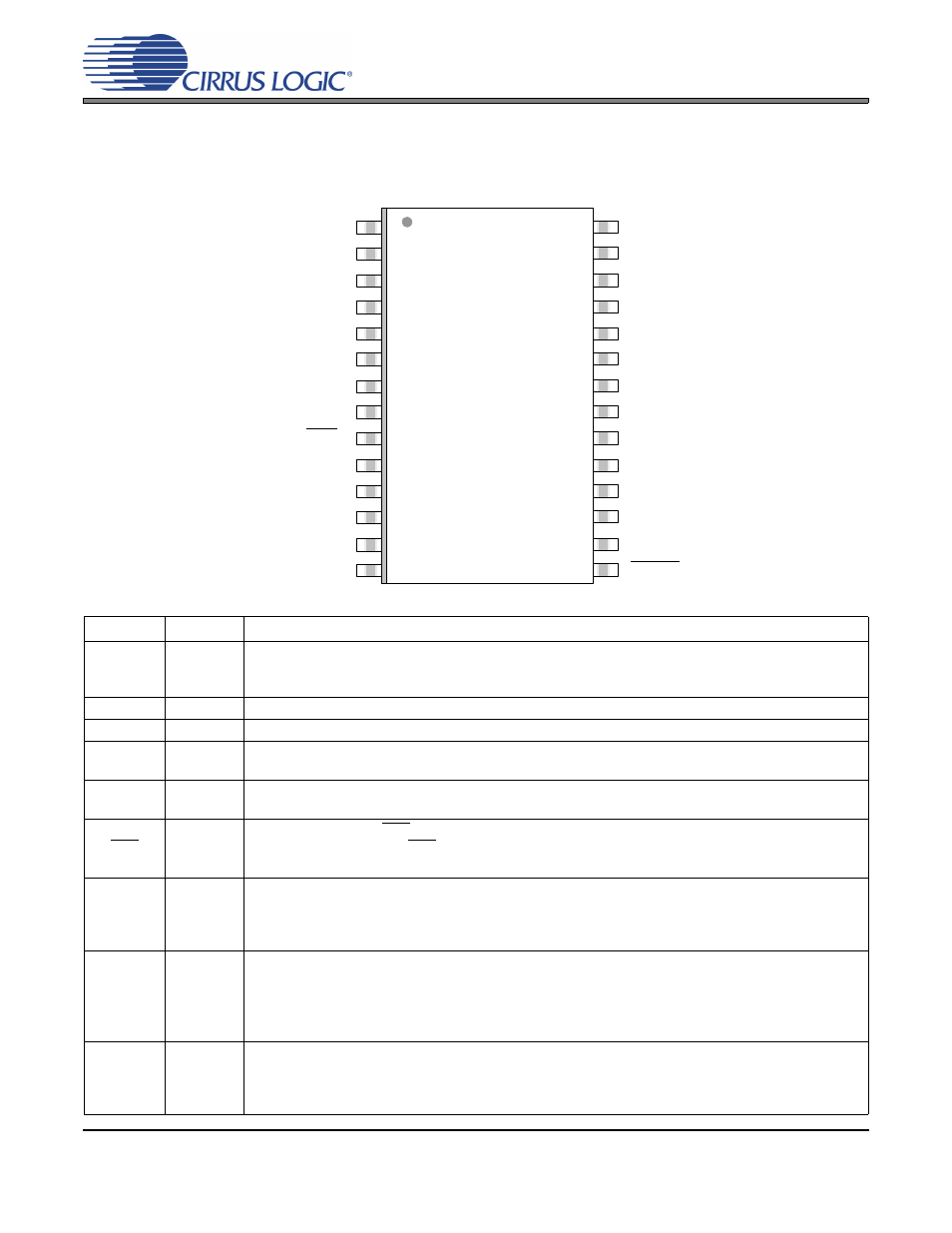

Top-Down View

28-pin SOIC/TSSOP

Package
