4.6.2
ADC Path
4.6.2.1
Analog Inputs
AINx+ and AINx- are line-level differential analog inputs. The analog input pins do not self-bias and must
be externally biased to VA/2 to avoid clipping of the input signal. The full-scale analog input levels are
scaled according to VA and can be found in the
table.
The ADC output data is in two’s complement binary format. For inputs above positive full scale or below
negative full scale, the ADC will output 7FFFFFH or 800000H, respectively, and cause the ADC Overflow
bit in the
register to be set to a ‘1’.
When used with the CS44417, whose current monitoring circuitry is single ended, the CS4234’s AINx-
nets should be joined together and connected to the VQ output from the CS44417. This connection will
prevent any variances in the reference voltages of the CS4234 and the CS44417 from skewing the
CS44417 output current measurements. Refer to
for more details concerning these connections.
4.6.2.2
ADC HPF
The ADC path has an optional HPF which can be enabled or disabled for all four ADCs via the
. The HPF should only be disabled when the DC component of
the input signal needs to be preserved in the digital output data (i.e. current monitoring with the CS44417).
The HPF characteristics are given in the
ADC Digital Filter Characteristics
table and plotted in
.
The
table specifies the DC offset error when the HPF is enabled or disabled.
Gain / Volume
AIN4 (±)
AIN3 (±)
AIN2 (±)
AIN1 (±)
Interpolation
Filter
Channel Volume ,
Mute, Invert,
Noise Gate
Multi-bit
Modulators
AOUT1 (±)
AOUT2 (±)
AOUT3 (±)
AOUT4 (±)
I
2
C Control
Data
Control Port
Level Translator
VL
1.8 to 5.0 VDC
RST
INT
SDIN1
SDOUTx
Group
Delay
0-500uS
Master Clock In
Frame Sync
Clock / LRCK
SDIN 2
Serial Clock
In / Out
LDO
Analog Supply
2.5 V
VA
5. 0 VDC
VD
2.5 VDC
Low -Latency
Demux
5
th
DAC
Input Advisory
DAC &
Analog
Filters
Tracking
SMPS
Enable
Sample
& Hold
Mute, Invert,
Noise Gate
Master
Volume
Control
Serial Audio Interface
AOUT 5 (±)
(SMPS Contro
DAC &
Analog
Filters
Master
Vol . Cntrl
Select
Master Volume
0 dB
TPS
GAIN
Filter
Select
X
Interpolation Filter
Sample & Hold
Max
Detect
Envelope
Tracking
Mute, Invert,
Noise Gate
DAC
Volume
Multi-bit
Modulators
Mode
Select
Full Scale Code
X
DC Offset
Digital Filters
Multi-bit
ADC
-2
X
Gain
S elect
-1

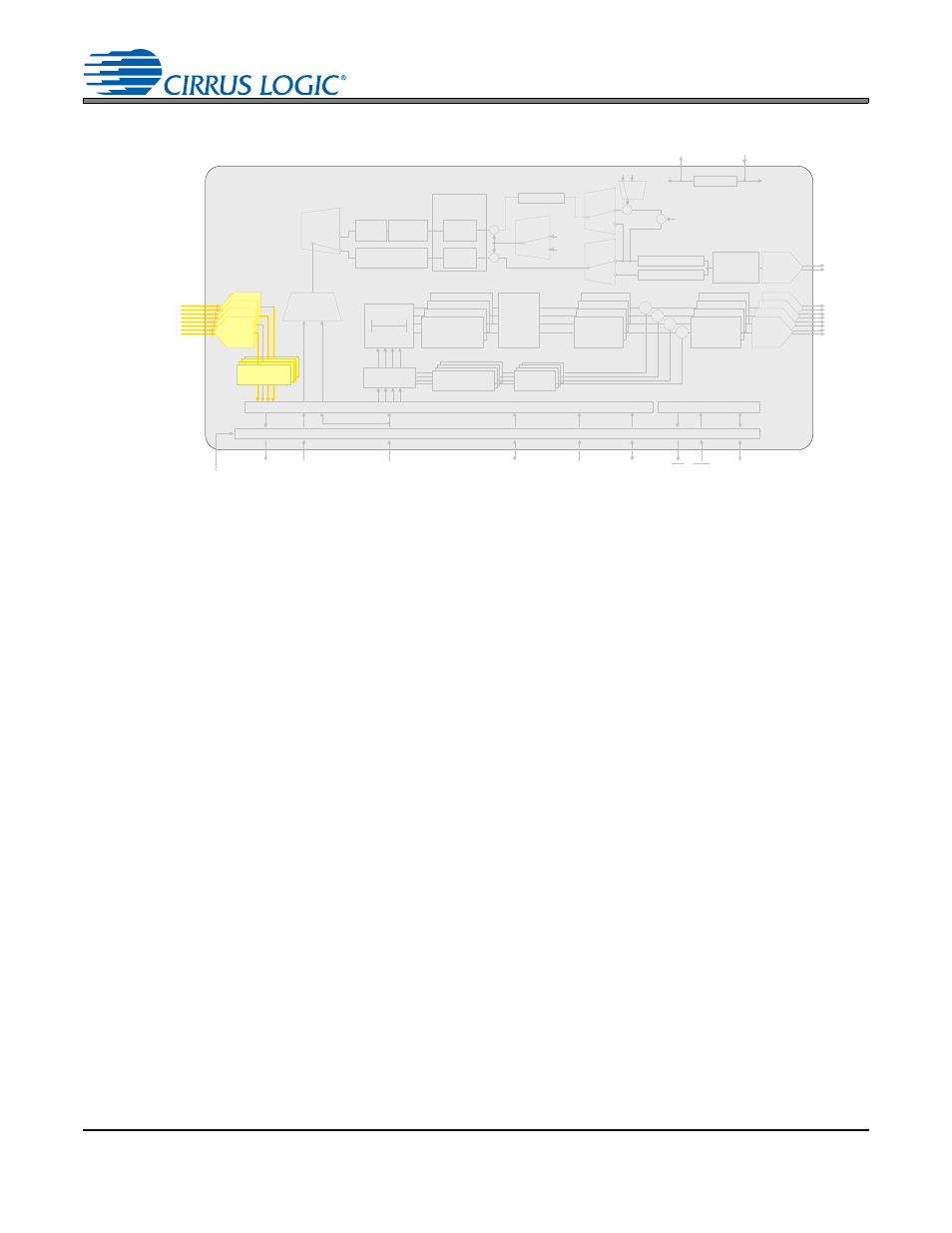

Figure 23. ADC Path
